Battery

The receiver operates on power from two non-removable lithium-ion battery packs. Each battery pack supplies 7.2 VDC, 3.5 Ah, and must be fully charged after extended storage periods.
The receiver receives power from two internal lithium-ion battery packs. The battery packs charge quickly and cannot be removed. Each battery pack is supplies 7.2 VDC, 3.5 Ah.
Note: The receiver uses a small quantity of power from the batteries when power is set to OFF. If the receiver is in storage for longer than 2 months, the battery can become fully discharged. The battery must be fully charged before operation.

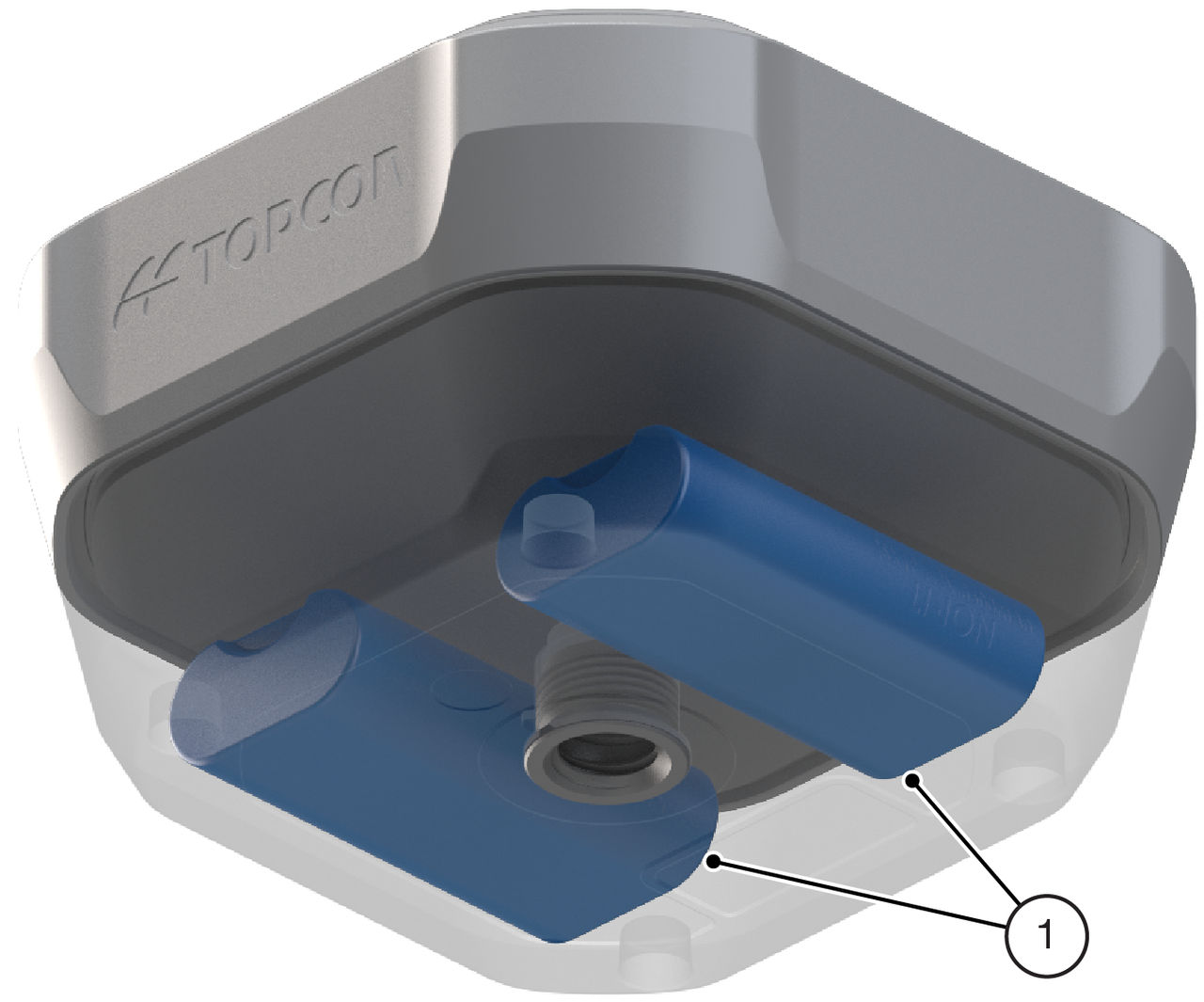

Figure: HiPer XR internal battery pack
  1. Internal battery packs, bottom view
