Overview

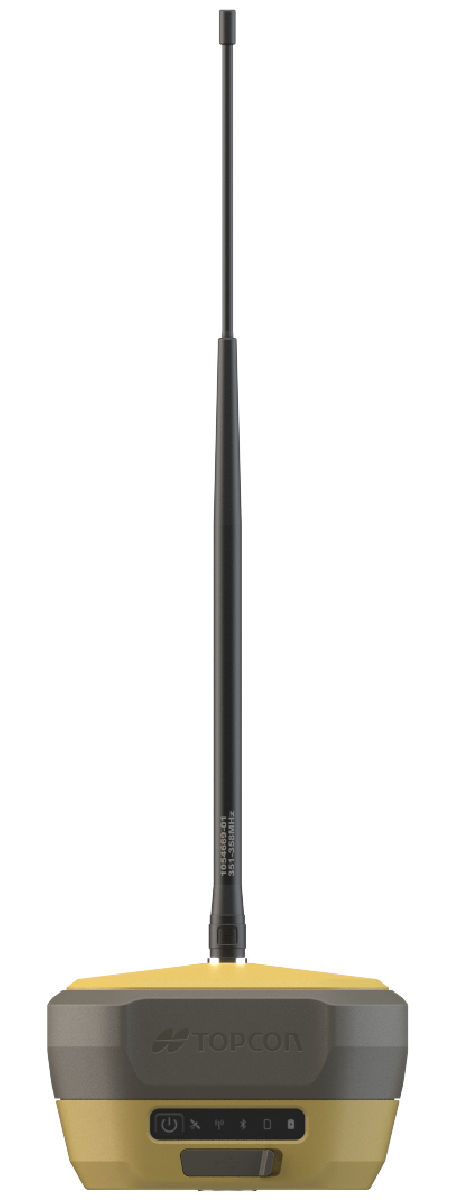

The Topcon HiPer XR GNSS integrated receiver is a compact, lightweight, and resistant GNSS receiver.

The HiPer XR has these components in a resistant magnesium housing:

GNSS antenna
GNSS receiver module
Inertial Measurement Unit (IMU)
Wi-Fi and Bluetooth wireless technology
Integrated 4G cellular modem
Lithium-ion batteries
Optional radio modem.

You can use the receiver as a real-time kinematic (RTK) base station and/or rover to transmit and receive GNSS corrections to calculate RTK solutions. You can easily control the receiver with Topcon software, for example, Topcon Field or Pocket 3D.

You can save the GNSS data in the HiPer XR memory for static and kinematic post-processing functions. You can import the data into Topcon Tools or other post-processing software. You can put together the imported data with more GNSS data to calculate accurate survey data.

The HiPer XR gives high precision and ruggedized performance that is applicable to the surveying, civil engineering, construction, forestry, mining, oil and gas, landfill, and agricultural industries.
