Cables

The HiPer XR kit includes a power supply cable, a USB-C cable and a power adapter. The table shows the cables included with the receiver (which can be different by region), and optional cables for additional configurations. Speak to a local Topcon dealer about the standard receiver kit items.

Receiver cables

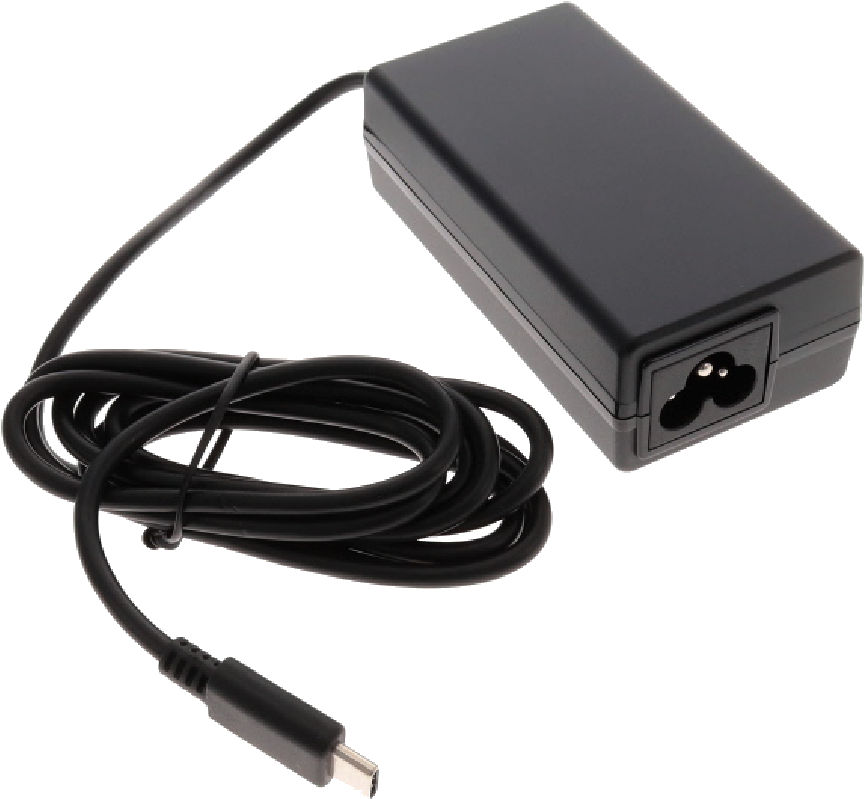

USB-C AC adapter P/N 1068616-01 Used, together with the appropriate regional power cable, to charge the internal batteries of the HiPer XR receiver. Operates between 32 °F (0 °C) and 104 °F (40 °C).

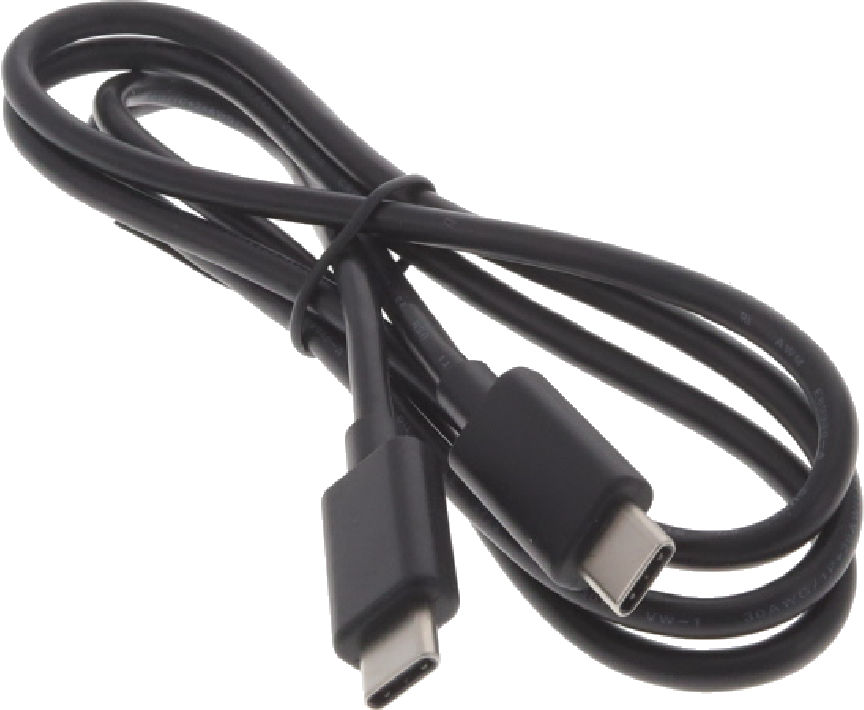

USB Type-C cable P/N 1068615-01 Used to connect the HiPer XR receiver to a field controller or computer for data transfer and firmware updates.

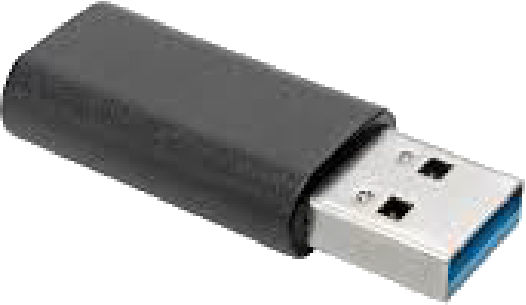

USB Type-C to USB Type-A adapter P/N 1068617-01 Together with the USB-C cable, enables connection to a computer with a USB type-A port

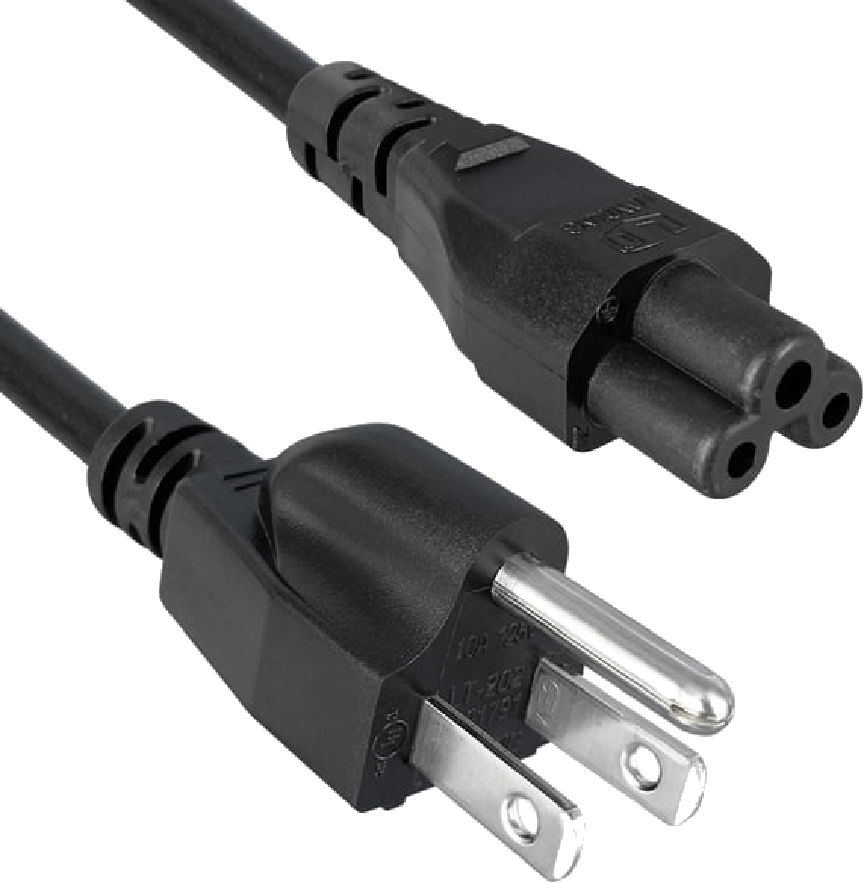

Power cable, North America P/N 1005793-0 Power cable to use with the HiPer XR AC power supply.

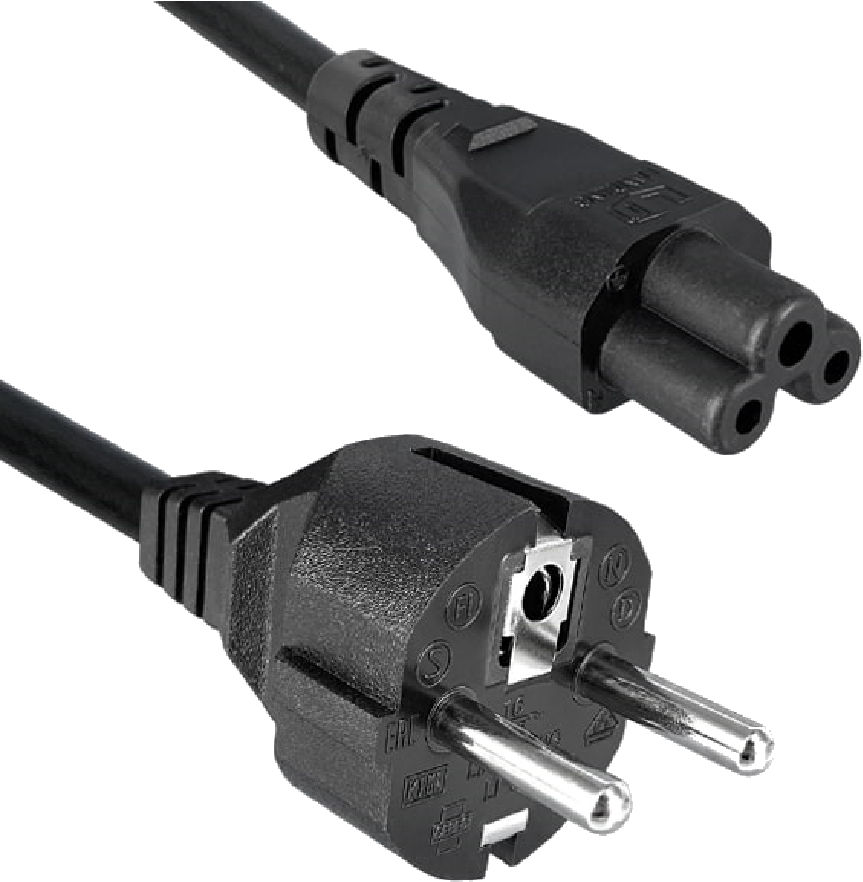

Power cable, Europe P/N 1005794-01 Power cable to use with the HiPer XR AC power supply.

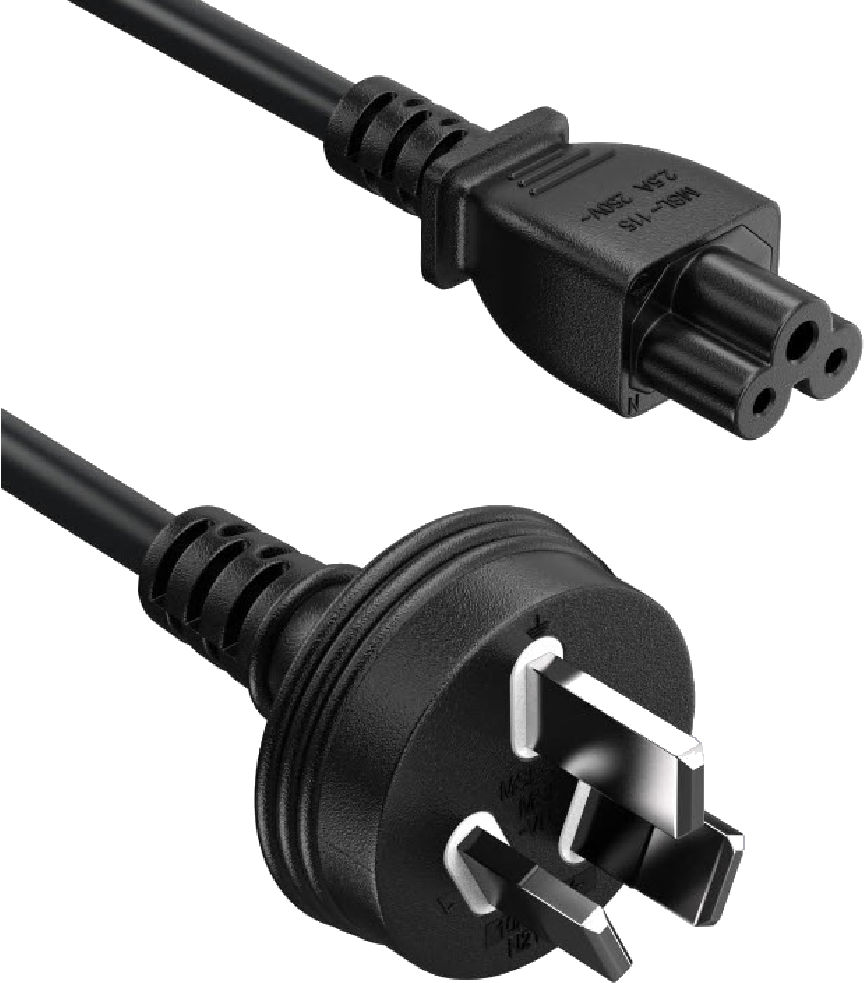

Power cable, Australia P/N 1021180-01 Power cable to use with the HiPer XR AC power supply.
Serial cable with seal P/N 1062146-01 Used to connect the HiPer XR receiver to an external serial device, for example, an external radio.
USB-C SAE power cable with seal P/N 1059087-01 Used to connect the HiPer XR receiver to an 8 to 16 VDC power source with an SAE cable.

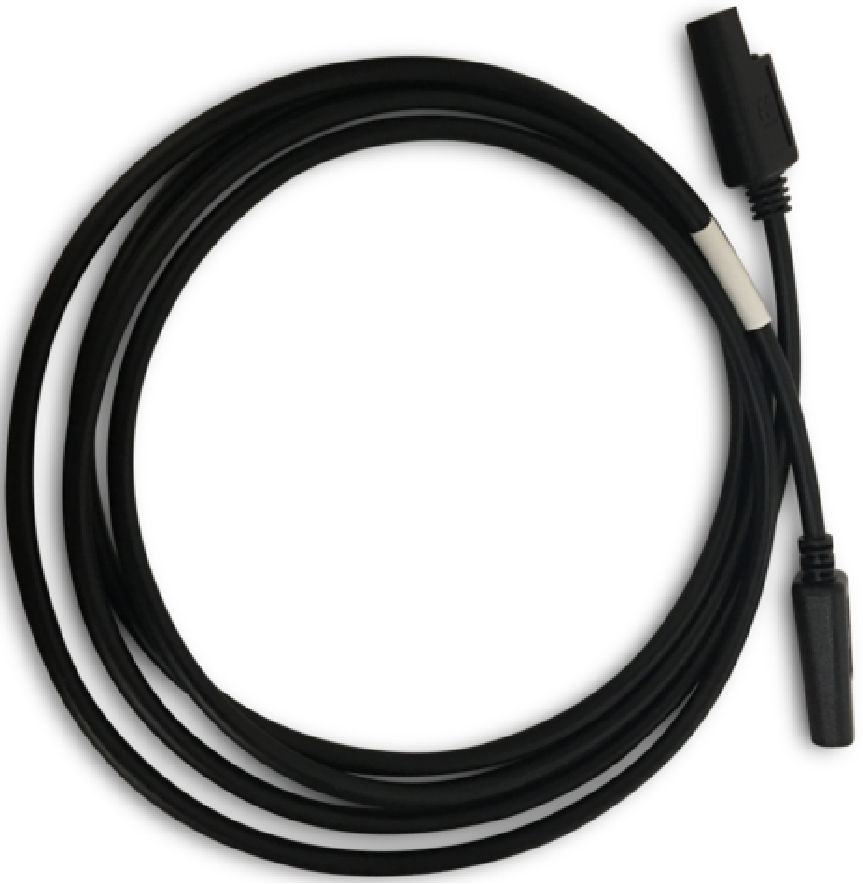

SAE cable extension P/N 14-008022-01 Used to connect the HiPer XR receiver to a DC power supply. The 2 m cable length helps to keep the power supply in a safe location.

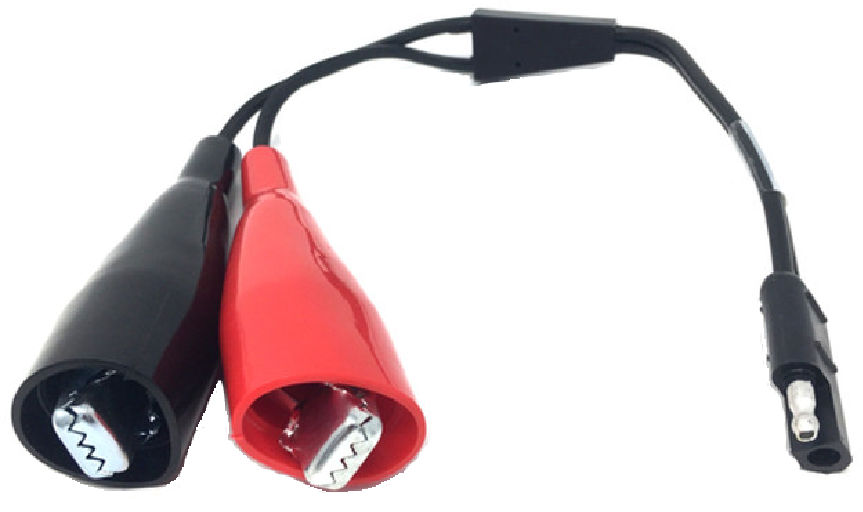

Alligator clips P/N 14-008025-01 Used to connect the HiPer XR receiver to a 12 VDC power source with an SAE cable.
