Bucket calibration

  1. Set the bucket attachment as the Active Attachment.
  2. Select the Main Menu icon.

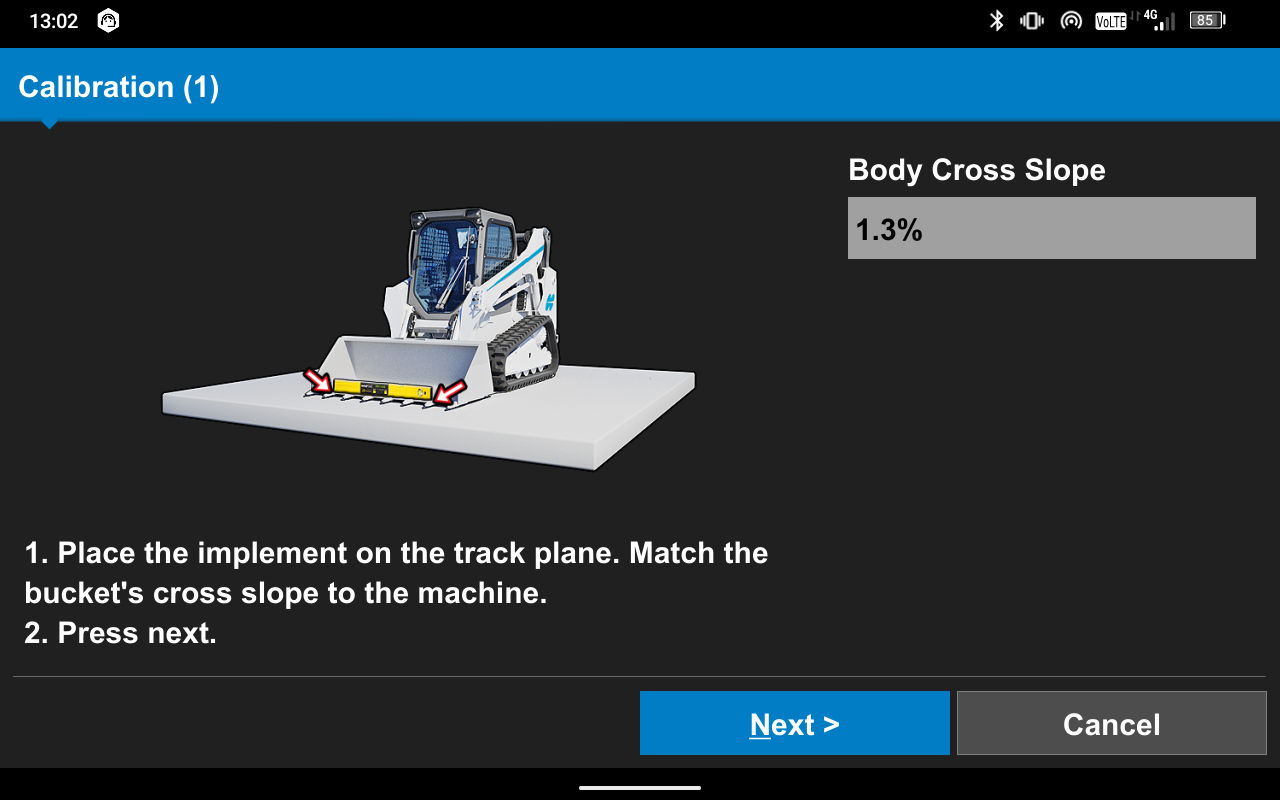

  3. Select ControlSensor CalibrationSensor Calibration. The Calibration (1) screen shows.
    ADDITIONAL INFORMATION:
  4. Complete the onscreen instructions.

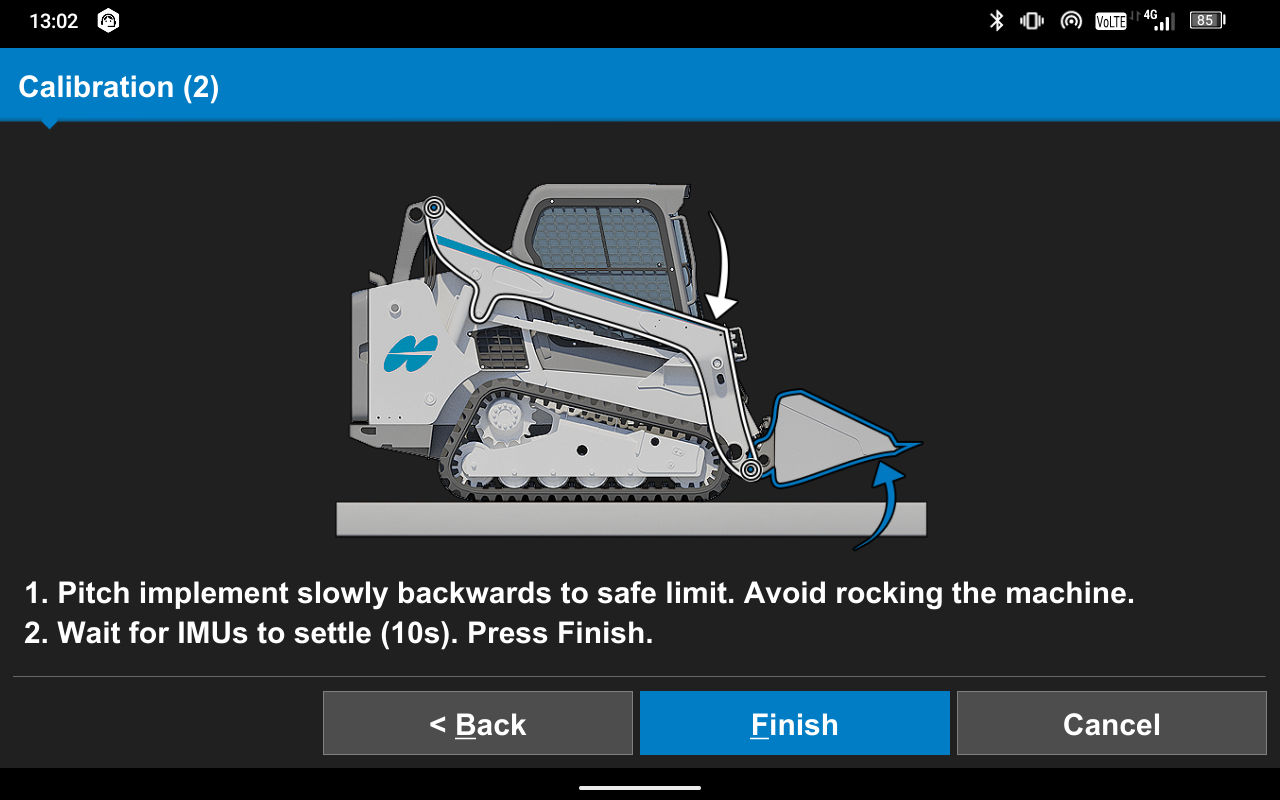

  5. Select Next. The Calibration (2) screen shows.
    ADDITIONAL INFORMATION:
  6. Complete the onscreen instructions.
  7. Select Finish.
