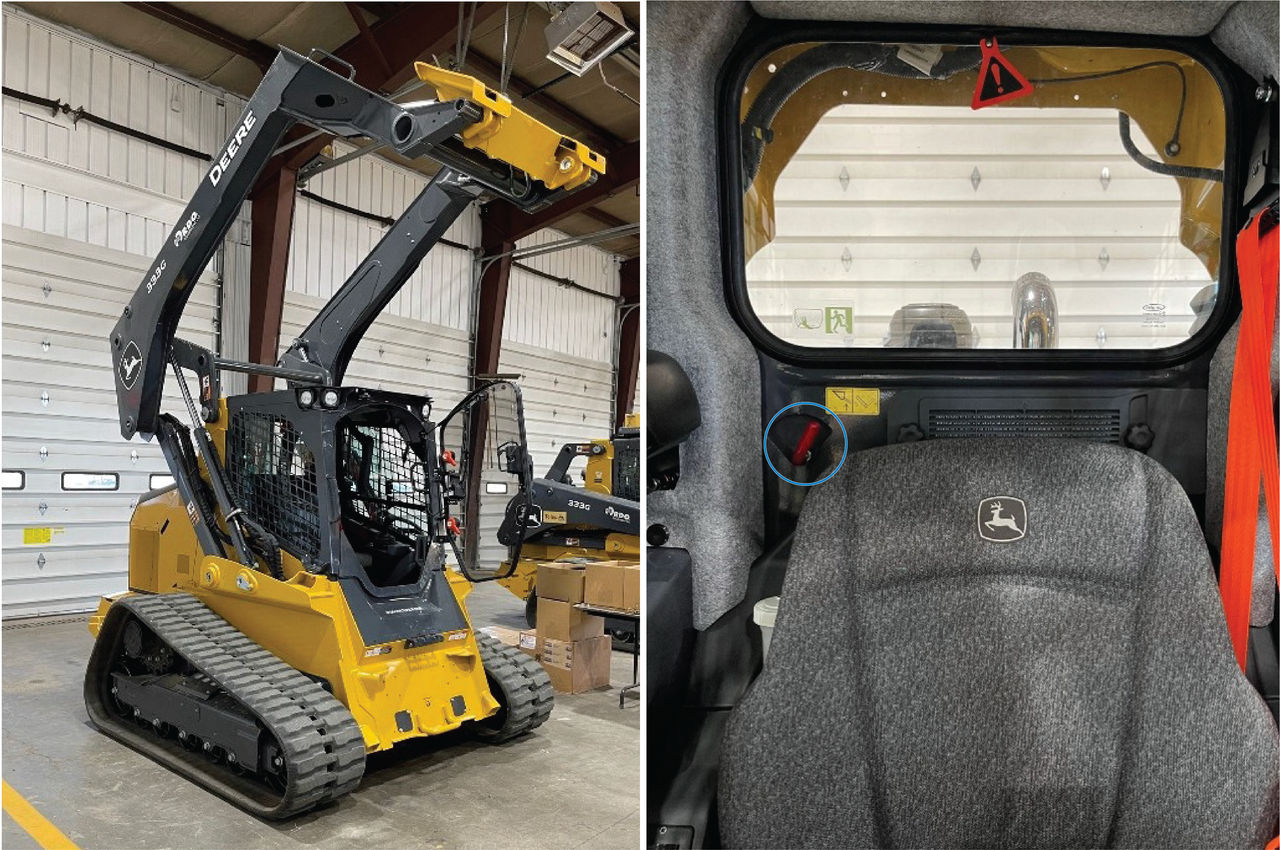

- Lift the boom arms to the vertical limit.
- Put in the machine’s boom lockout pin to prevent the cylinders from retraction.ADDITIONAL INFORMATION:Note: The machine’s boom lockout pin is usually a red or black handle that is behind the operator seat. Another location for the pin can be on the machine boom-arm cylinder.

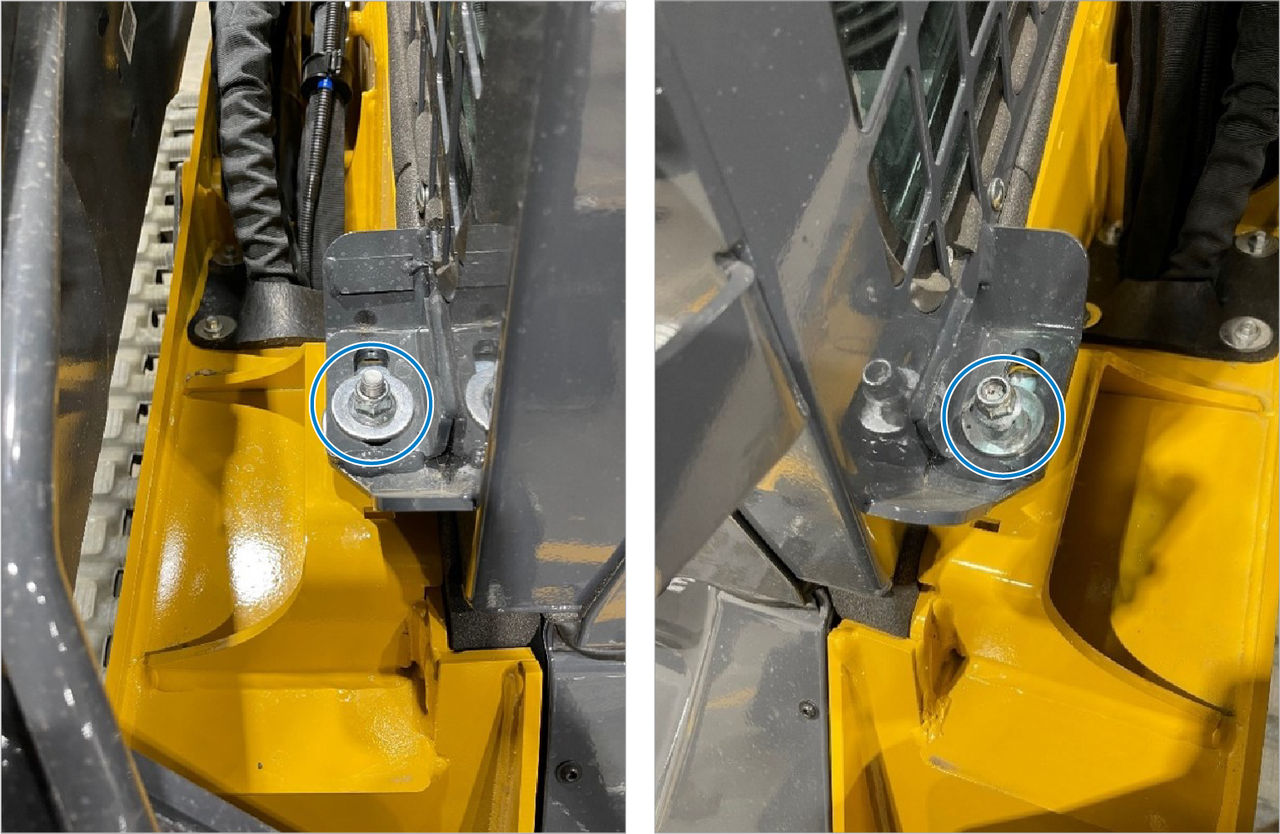

- Remove the bolts or nuts that attach the cab to the main body of the machine. ADDITIONAL INFORMATION:Note: Most CTL/skid steer loaders have two large external nuts or bolts. These are on the left side and right side of the cab.

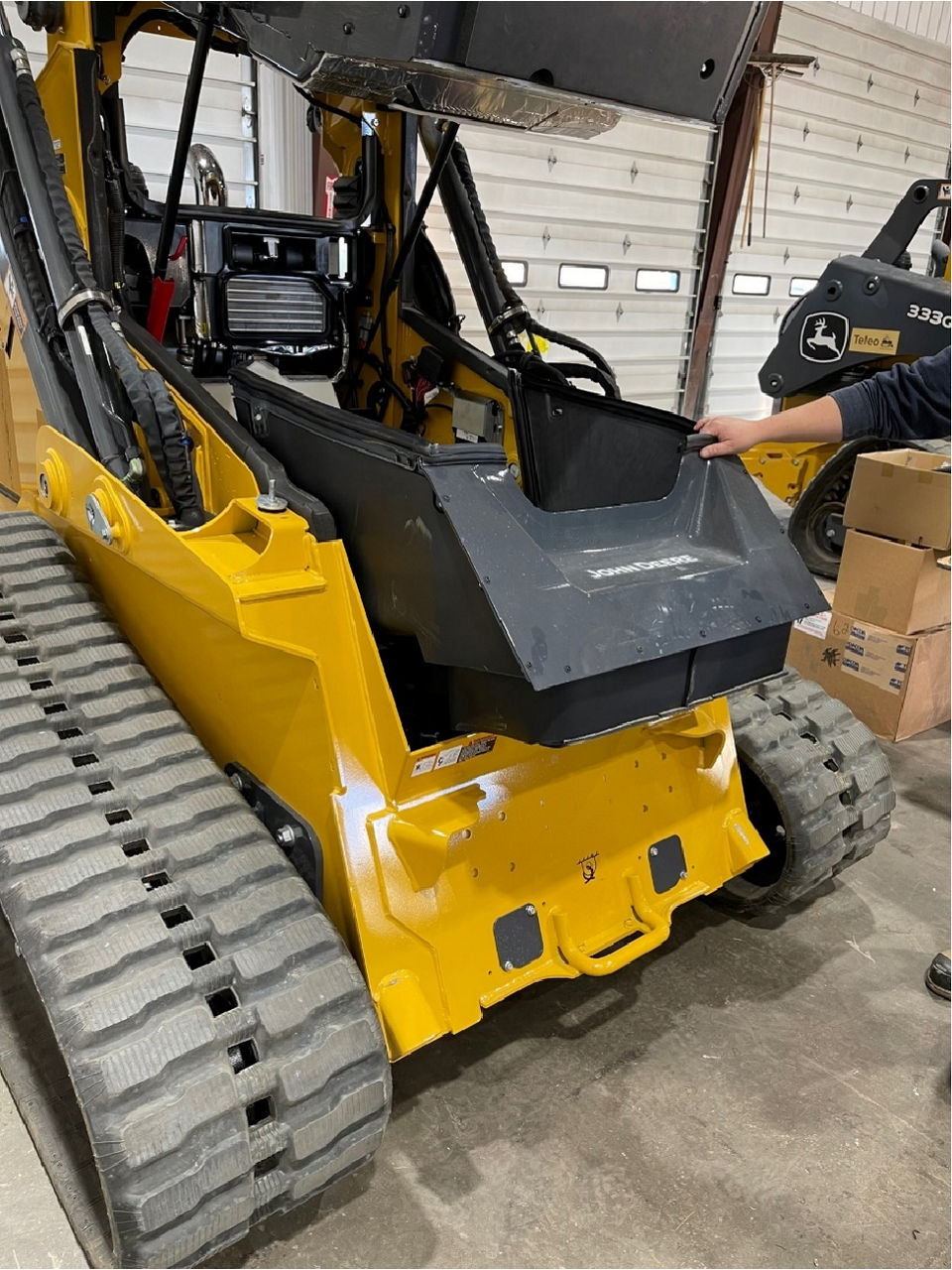

- Lift the cab from the front until the cab lift strut reaches full travel and locks into the lockout slot.

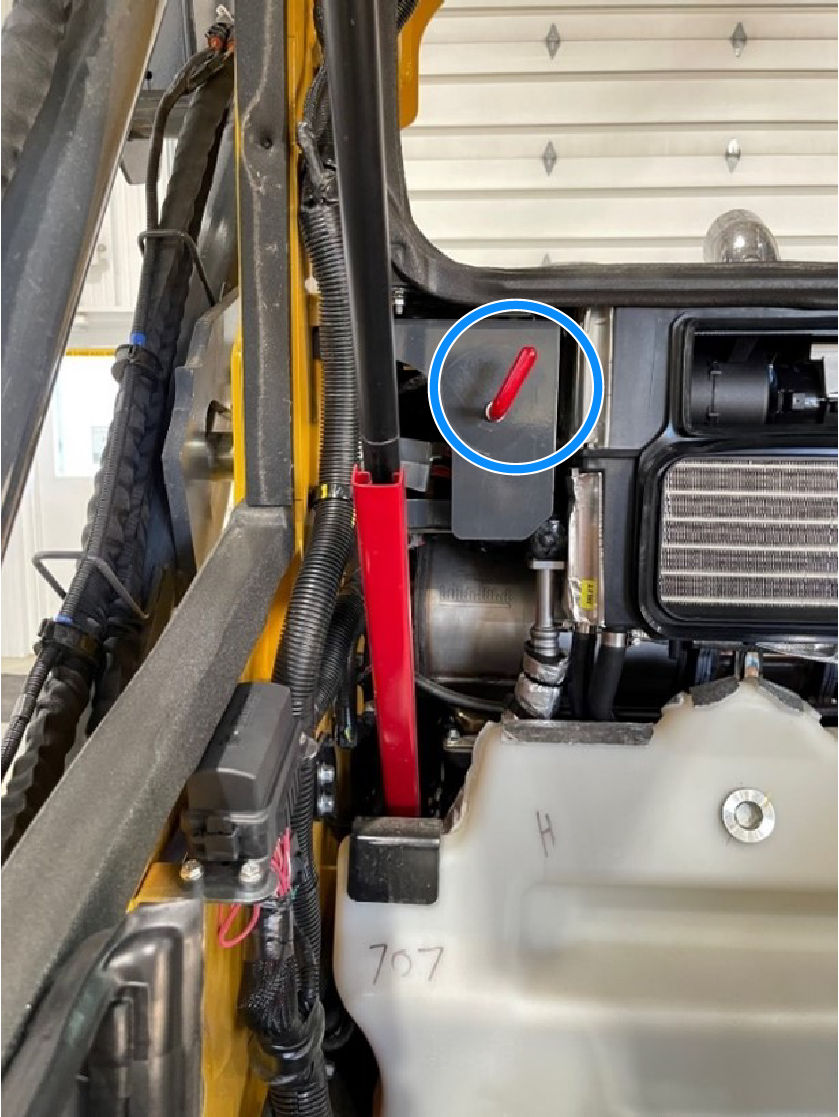

- Make sure that the cab lift strut is fully locked out of the travel channel before work continues. ADDITIONAL INFORMATION:

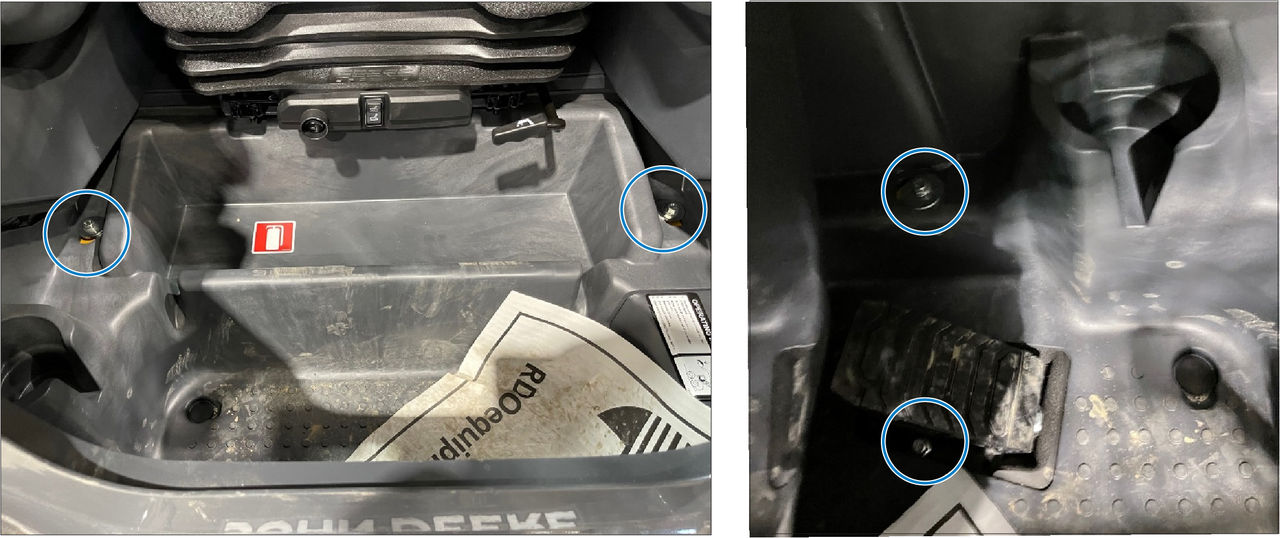

- Remove all floor board bolts and side trim that is necessary to have access to the belly pan. ADDITIONAL INFORMATION:Note: There are usually four to six bolts that attach the floor board. Enclosed cab models can have more door trim to remove.
- Carefully remove the floor board assembly.ADDITIONAL INFORMATION:
- Disconnect the negative battery terminal on the CTL before you weld the components during the installation.
