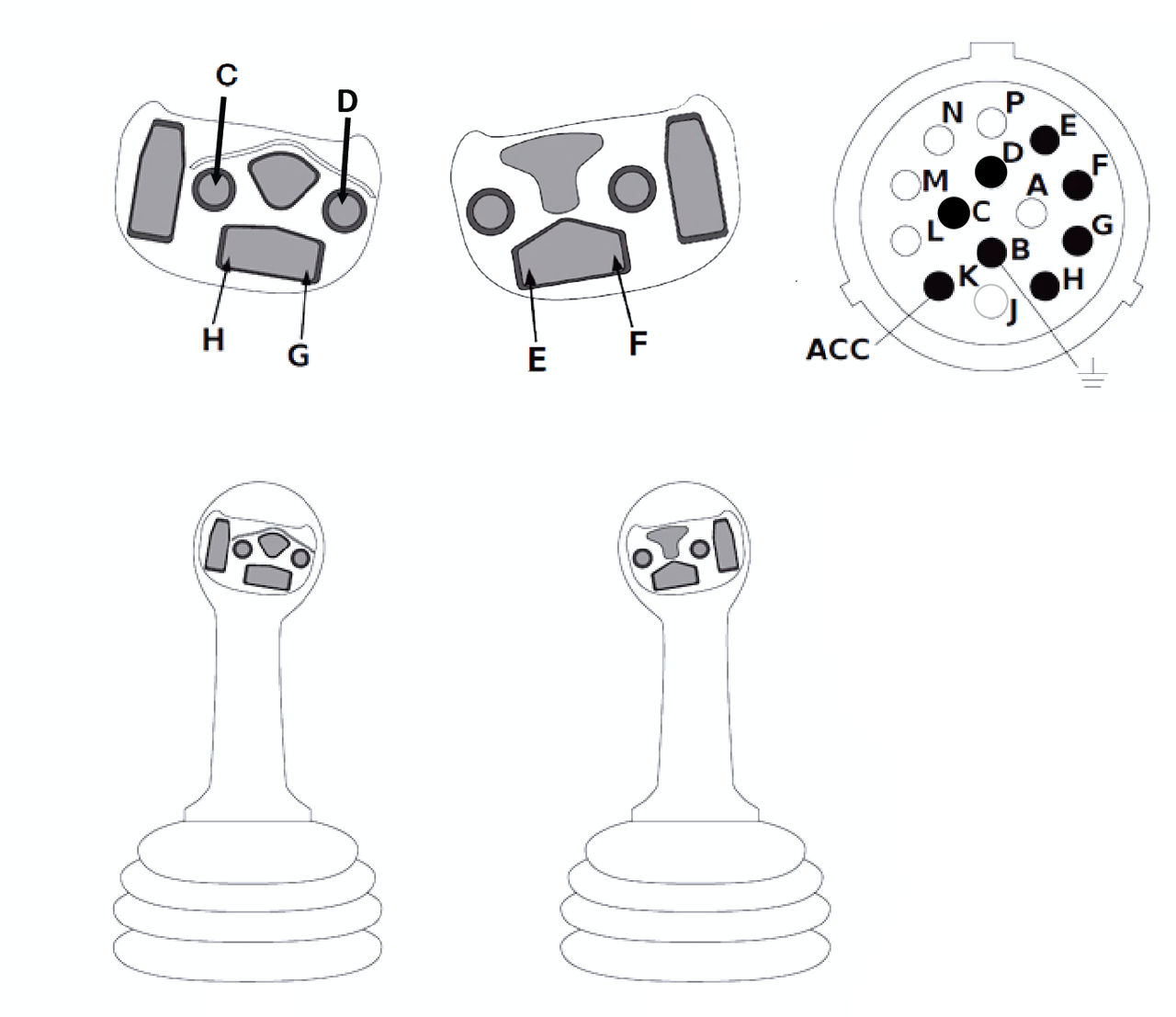

Machine joystick pin | SC024 harness pin color | Function | Combo function |
|---|---|---|---|
H | Black | Left raise | |
G | Red | Left lower | |
F | White | Right raise | Increment |
E | Green | Right lower | Decrement |
C | Orange | Auto | |
D | Yellow | Combo | |
Power splitter | |||
K | Red | Key power | |
B | Black | Ground |
