CAT 317

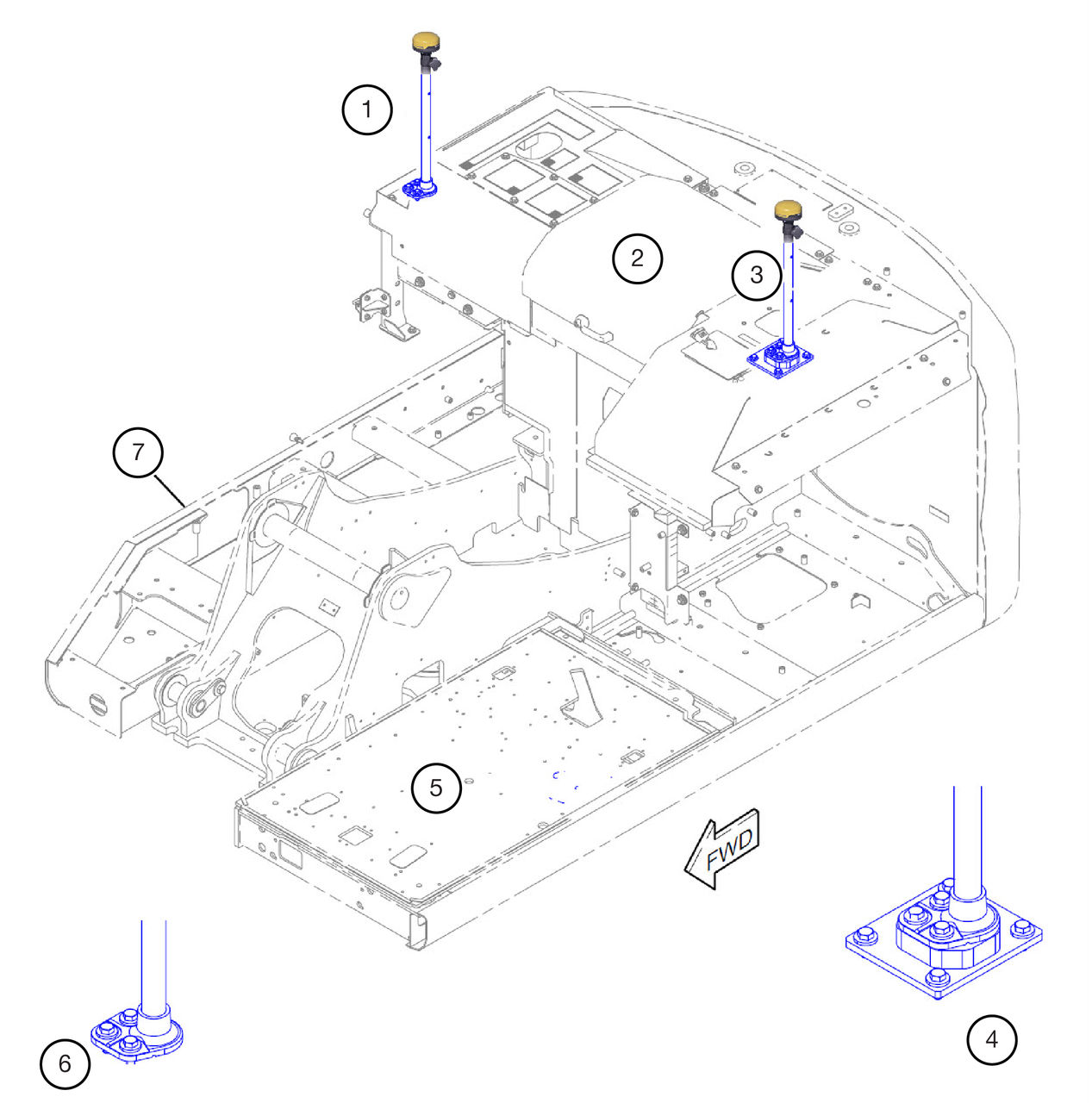

CAT 317 model excavators include predrilled holes for use with one antenna mast mount. See the detail view of Area A. You can order an additional welding plate for easier installation. See the detail view of Area B. Contact your local CAT dealer for more information.

1. A
2. Hood
3. B
4. View of Area B
5. Platform
6. View of Area B
7. Upper frame
