Key features
- Hi Frequency NMO Mag Mount 0-6 GHz
- Topcon P/N 1020002-01
- Manufacturer: Laird Technologies Manufacturer P/N GB195RPSMAI

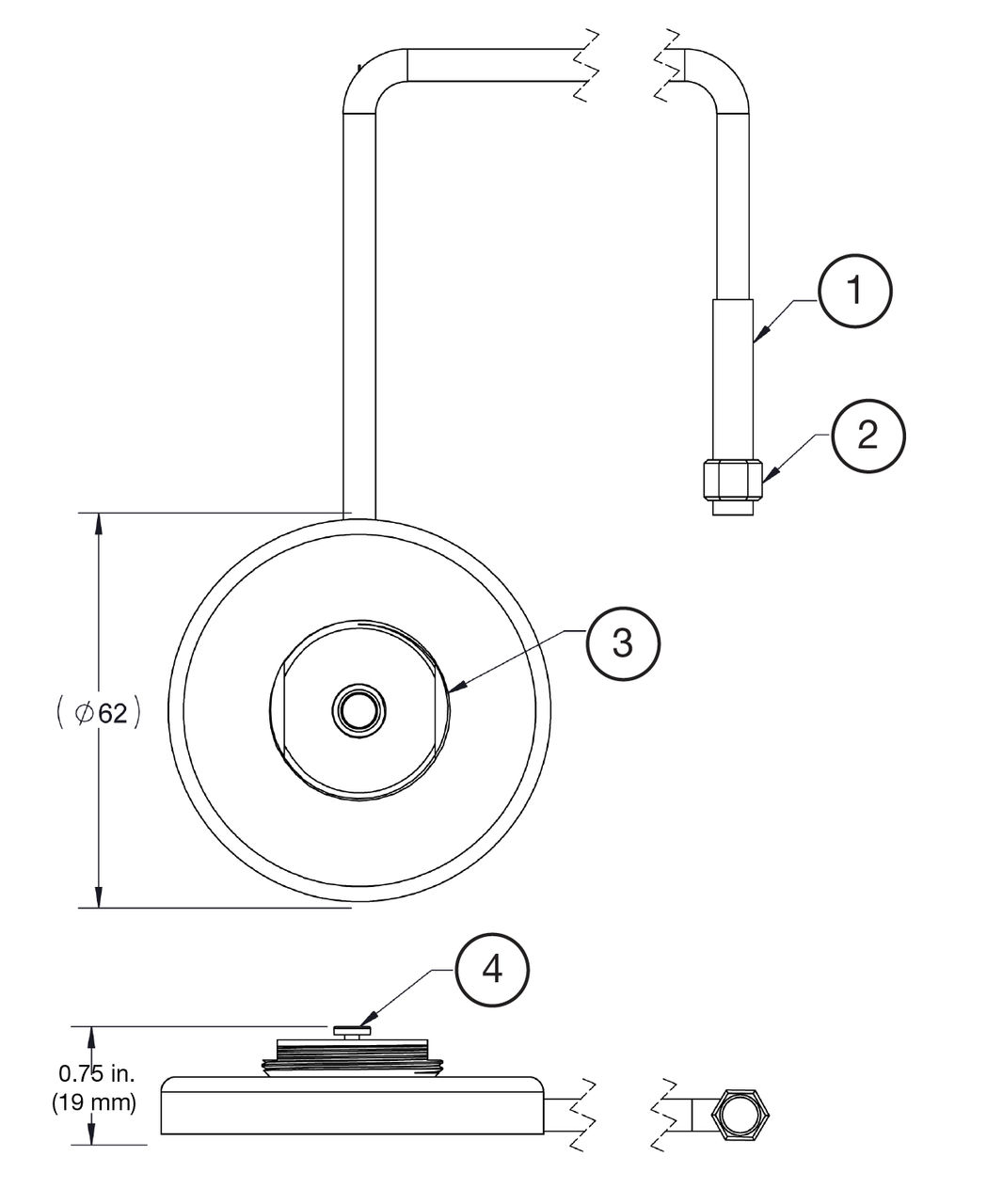

Envelope dimensions
- Heat Shrink
- SMA Male Reverse Polarity
- NMO Brass Mount
- Gold-Plated Contact
General
| Specific Frequency | 0-6 GHz |
| Mounting Type | Magnetic base, NMO mount |
| Installation | Metallic/magnet mountable surface |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Cable Type | Low loss, double-shielded ATX 195 |
| Cable Length | 15 ft. (3.65 m) |
| Pull Strength | 80 lb. (36.29 kg) |
