Non-CAN masted dozer system with VSU wiring system diagram

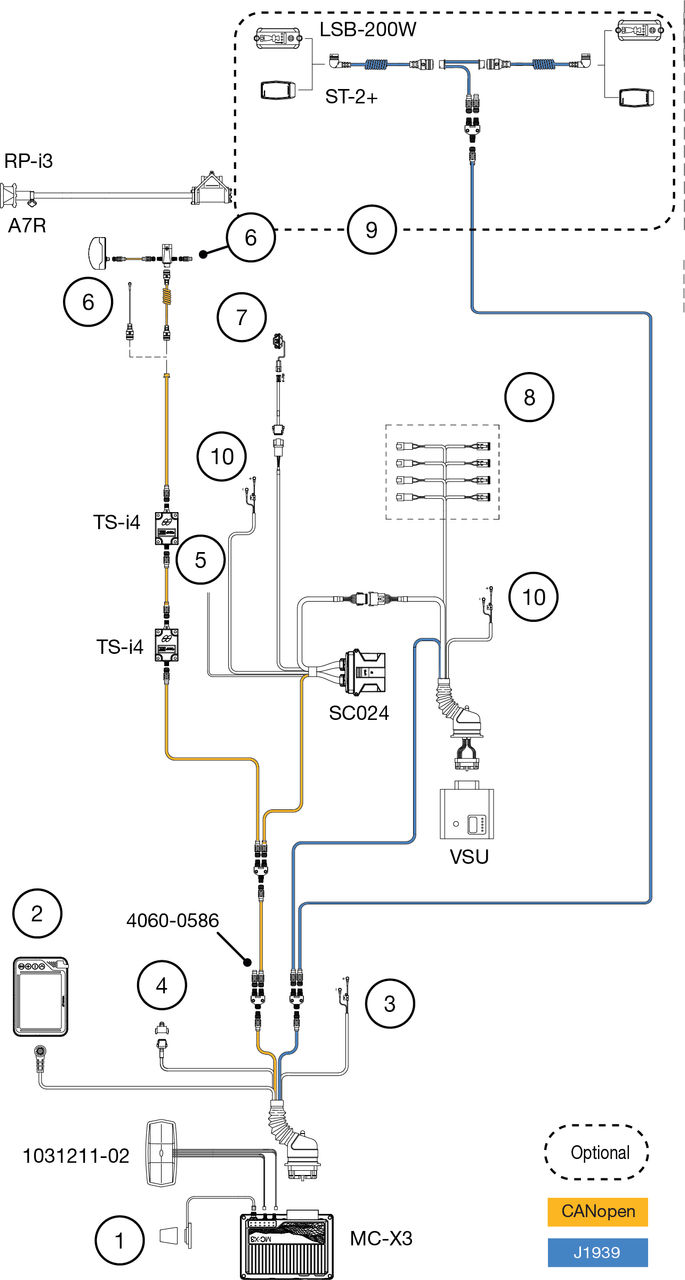

Figure: Non-CAN masted dozer system with VSU wiring
  1. Radio antenna
  2. GX display
  3. Unswitched power
  4. Serial external radio
  5. Reverse alarm - optional
  6. Terminator
  7. Simple smartknob switches
  8. Valve interface
  9. 2D optional system
  10. Switched power
