Non-CAN mastless GNSS dozer system without VSU wiring system diagram

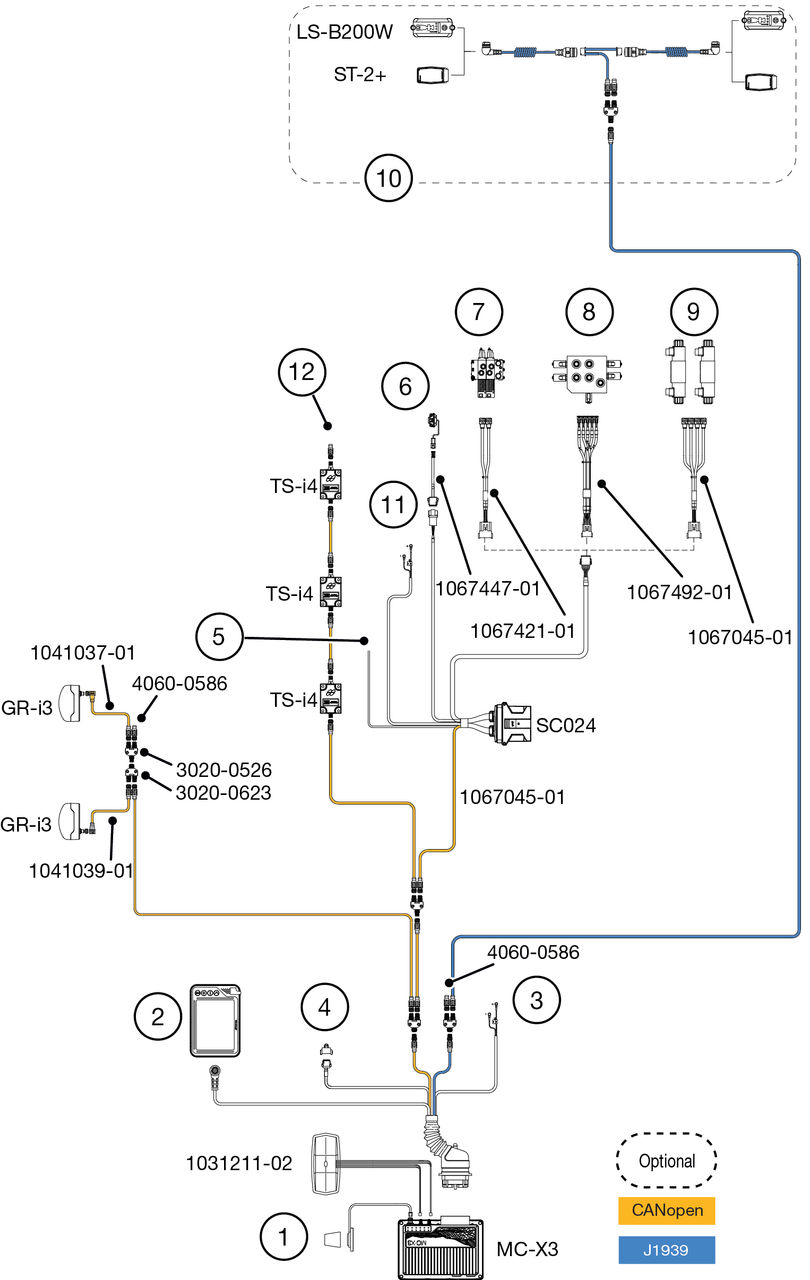

Figure: Non-CAN mastless GNSS dozer system without VSU wiring
  1. Radio antenna
  2. GX display
  3. Unswitched power
  4. Serial external radio
  5. Reverse alarm optional
  6. Simple smartknob switches
  7. Danfoss valves
  8. Pilot valves
  9. Proportional valves
  10. 2D optional system
  11. Switched power
  12. Terminator
