Blade pivot point dimensions Pusher

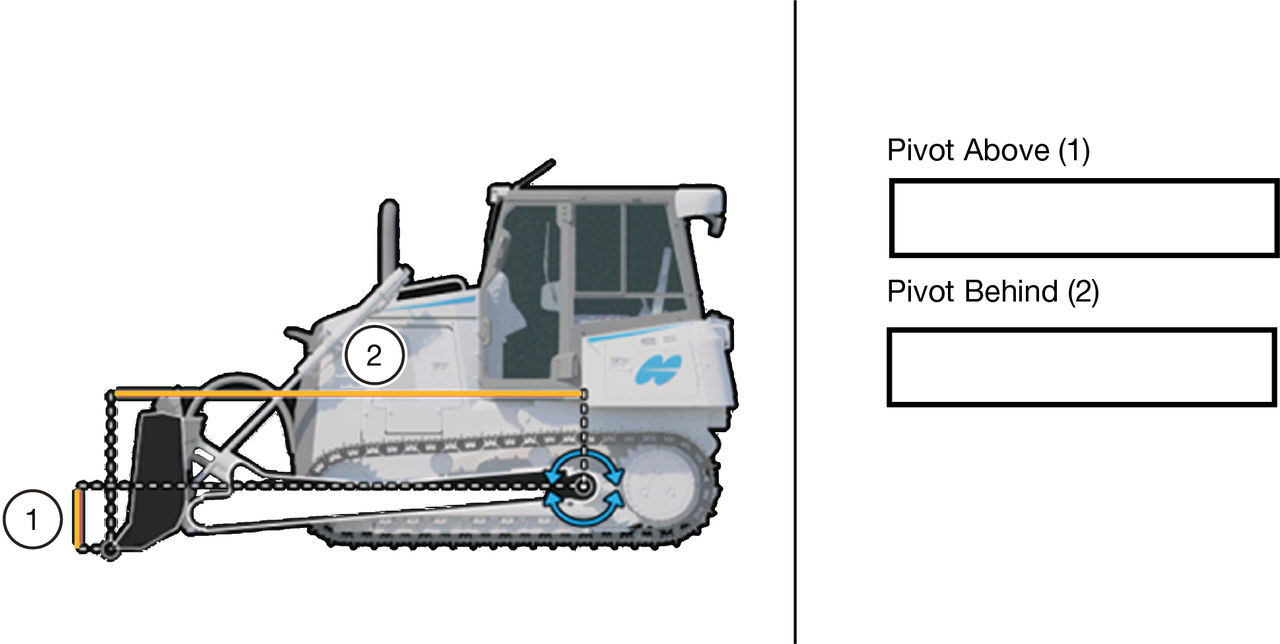

  1. Measure and record the distance for Pivot Above (1).
  2. Measure and record the distance for Pivot Behind (2).
    ADDITIONAL INFORMATION:
    Note: Measure the Pivot Point on the same side the IMU is installed.
Related information
Machine measurements3D-MC Dozer Setup. This lets you enter the recorded measurements in the cab during the MC-Max Dozer setup processes. Put the total station approximately one machine length away from the machine, aligned adjacent to the front, right corner of the dozer blade to see the prism during the necessary machine measurements.
