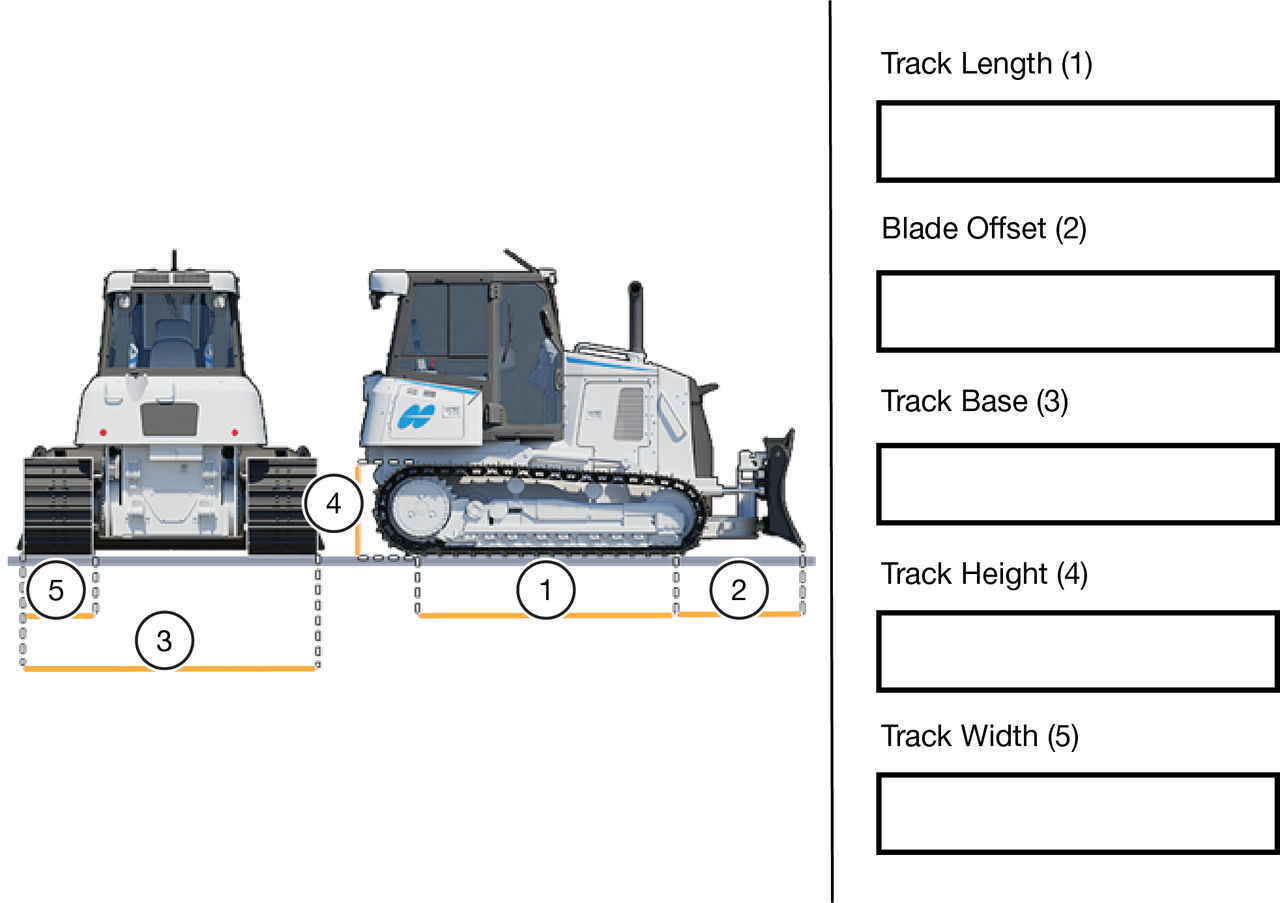

Track dimensions

  1. Measure and record the distance for Track Length(1).
  2. Measure and record the distance for Blade Offset(2).
  3. Measure and record the distance for Track Base(3).
  4. Measure and record the distance for Track Height(4).
  5. Measure and record the distance for Track Width(5).
    ADDITIONAL INFORMATION:
Related information
Machine measurements3D-MC Dozer Setup. This lets you enter the recorded measurements in the cab during the MC-Max Dozer setup processes. Put the total station approximately one machine length away from the machine, aligned adjacent to the front, right corner of the dozer blade to see the prism during the necessary machine measurements.
