GNSS information

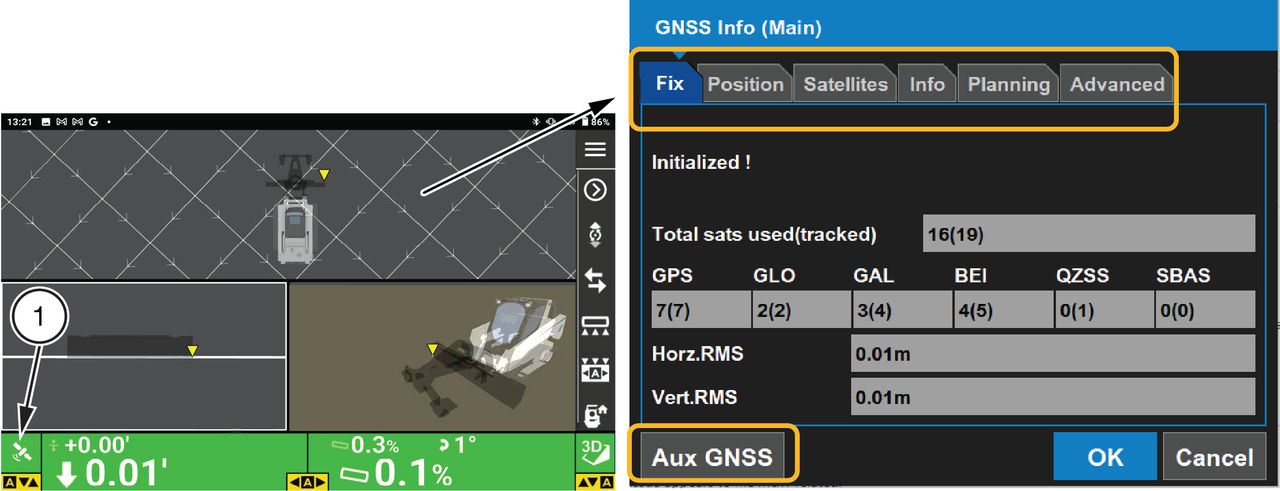

Select the Position Sensor Status indicator/button.
STEP RESULT:
The GNSS Info (Main) screen shows.

Select the tabs to view GNSS information.

ADDITIONAL INFORMATION:

Tab	Information shown
Fix	GNSS status and quality settings.
Position	Cutting edge position information.
Satellites	Monitor visible and used satellites and change elevation mask angle.
Info	View receiver information or reset receiver. See detailed GNSS information in the table below.
Planning	Satellite estimated accuracy information at a given time. The red vertical line marks the current time.
Advanced	GNSS options to enable/disable the tracking of all GLONASS satellites.
Aux GNSS	Shows AUX GNSS information screen.

GNSS receiver info	Description
Receiver ID	D number of the GNSS board.
Firmware	GNSS firmware version.
Radio link	Communication protocol used in the radio.
Dist. to base	Distance to the base receiver.
Reset receiver button	Performs a soft reset of GNSS board.
Reset RTK	Resets RTK values.
