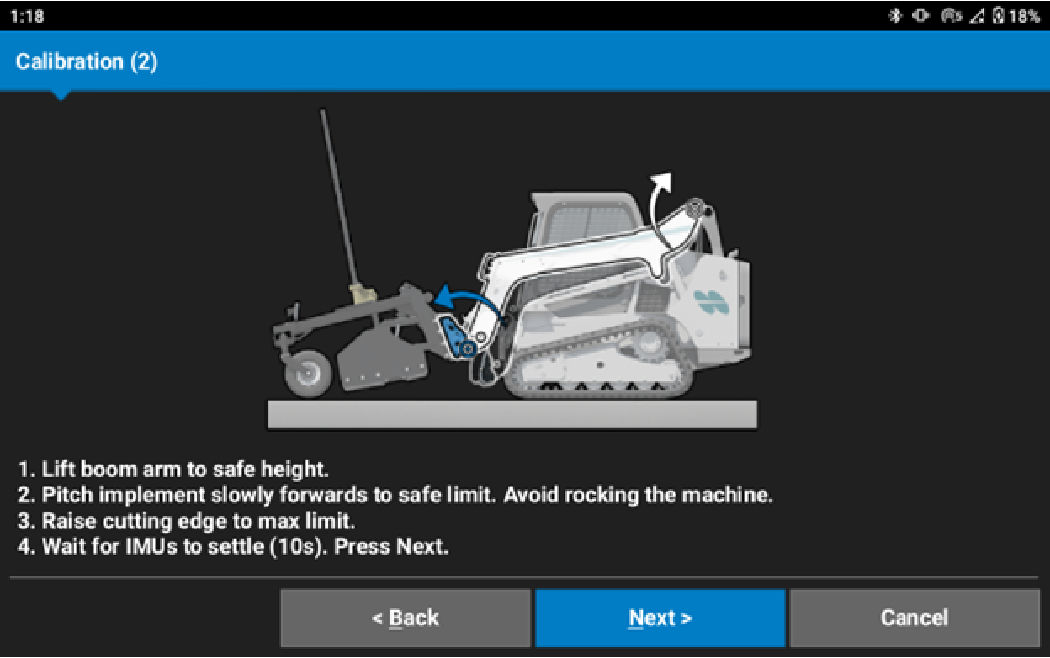

- Lift the cutting edge to the maximum limit.
- Carefully lift the boom arms to a safe height and tilt the hitch coupler plate forwards away from the machine. Tilt forward slowly to prevent the machine or attachment from rocking.
- Continue to tilt forward until the cylinder moves a minimum of 25% or to a safe permitted limit.
- Wait 10 seconds for the IMU to settle. ADDITIONAL INFORMATION:
- Select Next.

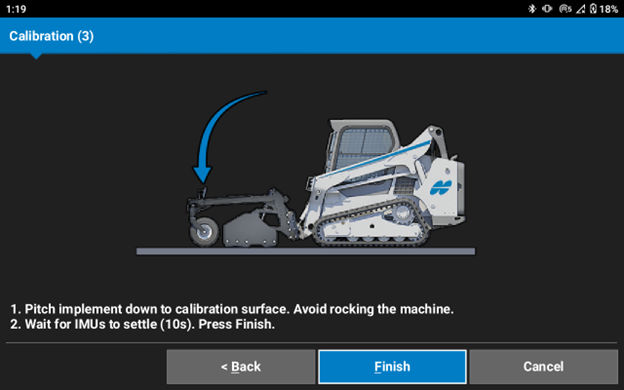

- Tilt the hitch coupler plate back and lower the boom arms to the stops.
- Tilt the hitch coupler until the attachment touches the surface. Do not rock the machine while you lower it.
- Lower the cutting edge to the maximum limit.
- Wait 10 seconds for the IMUs to settle. ADDITIONAL INFORMATION:
- Select Finish.
