- Select from the main screen.
- Select Body Slope.

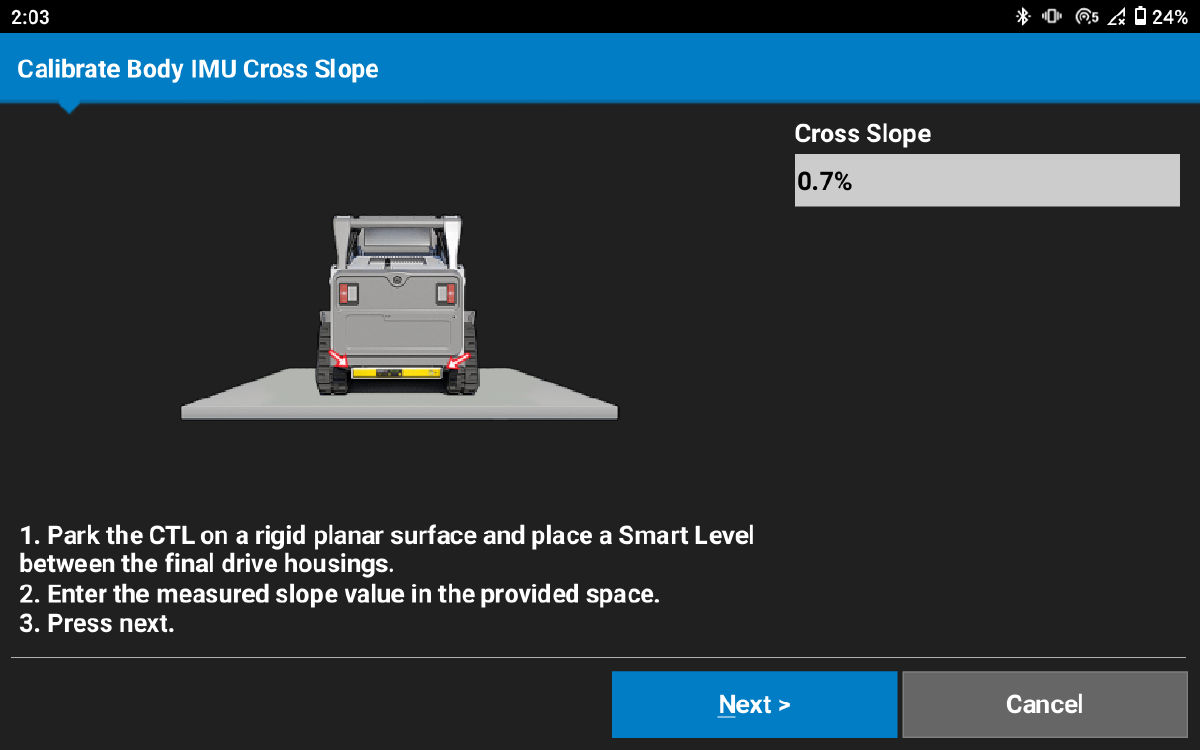

- Carefully follow the instructions on the Calibrate Body IMU Cross Slope screen.
- Enter the measured value for Cross Slope. ADDITIONAL INFORMATION:
- Select Next.

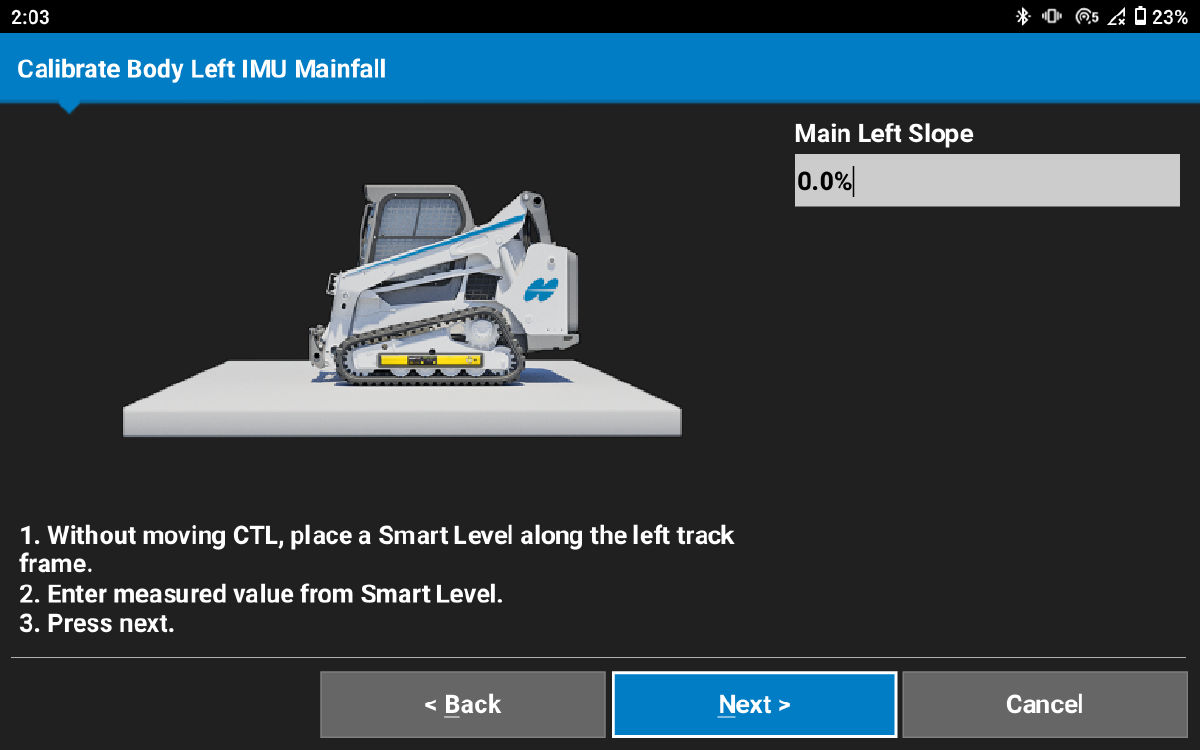

- Follow the steps shown on the Calibrate Body Left IMU Mainfall screen.
- Enter the measured value from the Smart Level in the Main Left Slope field. ADDITIONAL INFORMATION:
- Select Next.

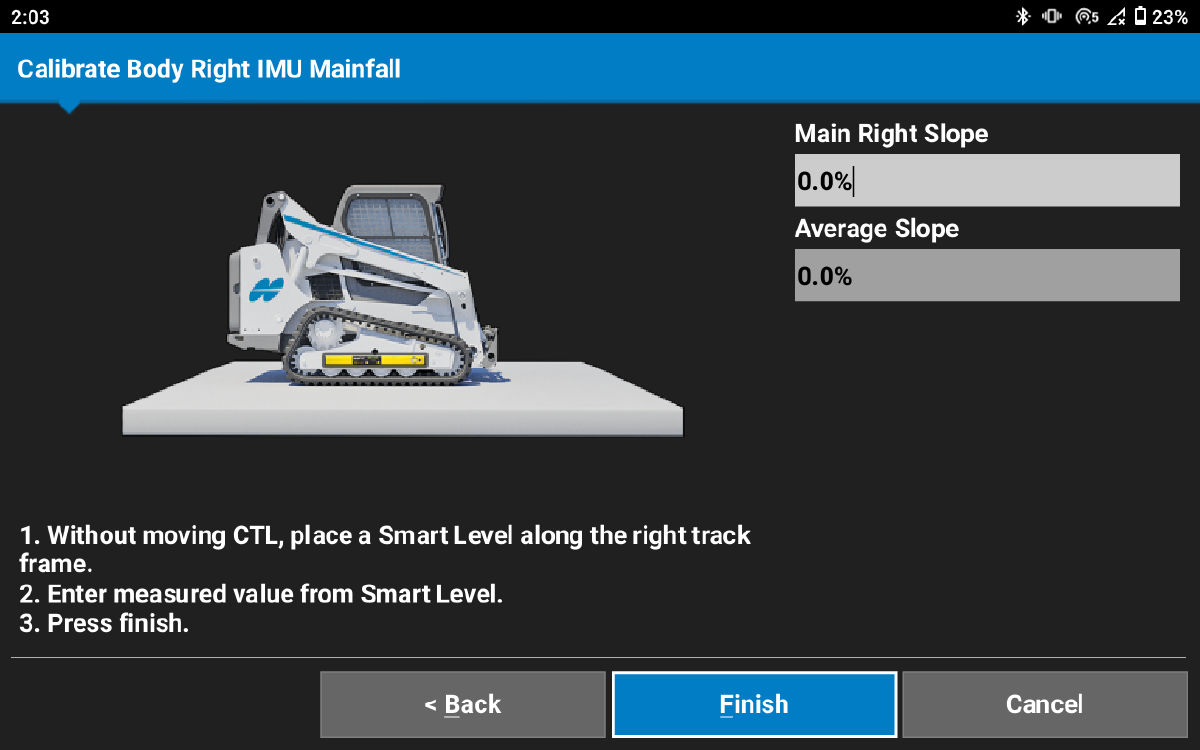

- Use the steps on the Calibrate Body Right IMU Mainfall screen.
- Enter the measured value for Main Right Slope. ADDITIONAL INFORMATION:
- Select Finish.
