- Weld the base plate directly to the blade.
- Mount the standoffs and strain relief plates.
- Mount the sensor.
- Record the sensor serial number and orientation.
- Mount the sensor cover over the sensor.ADDITIONAL INFORMATION:

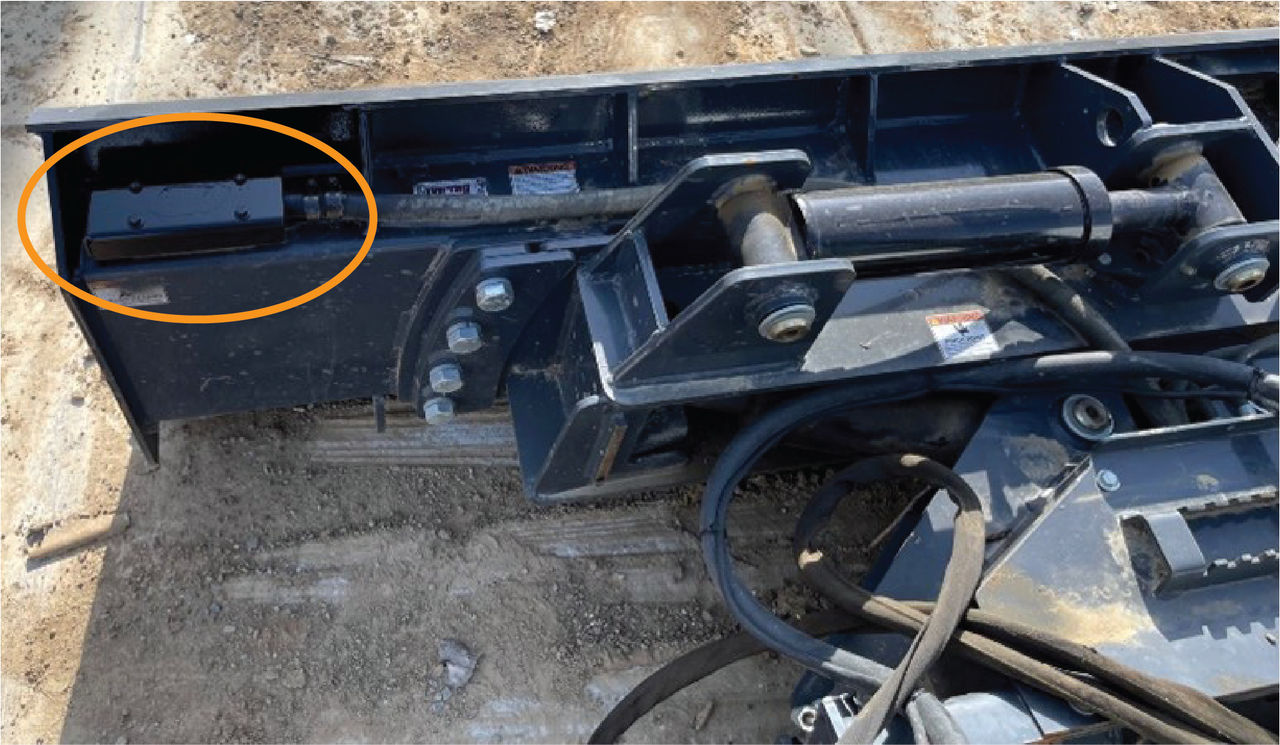

Figure: TS-i4 installed on PAT blade
