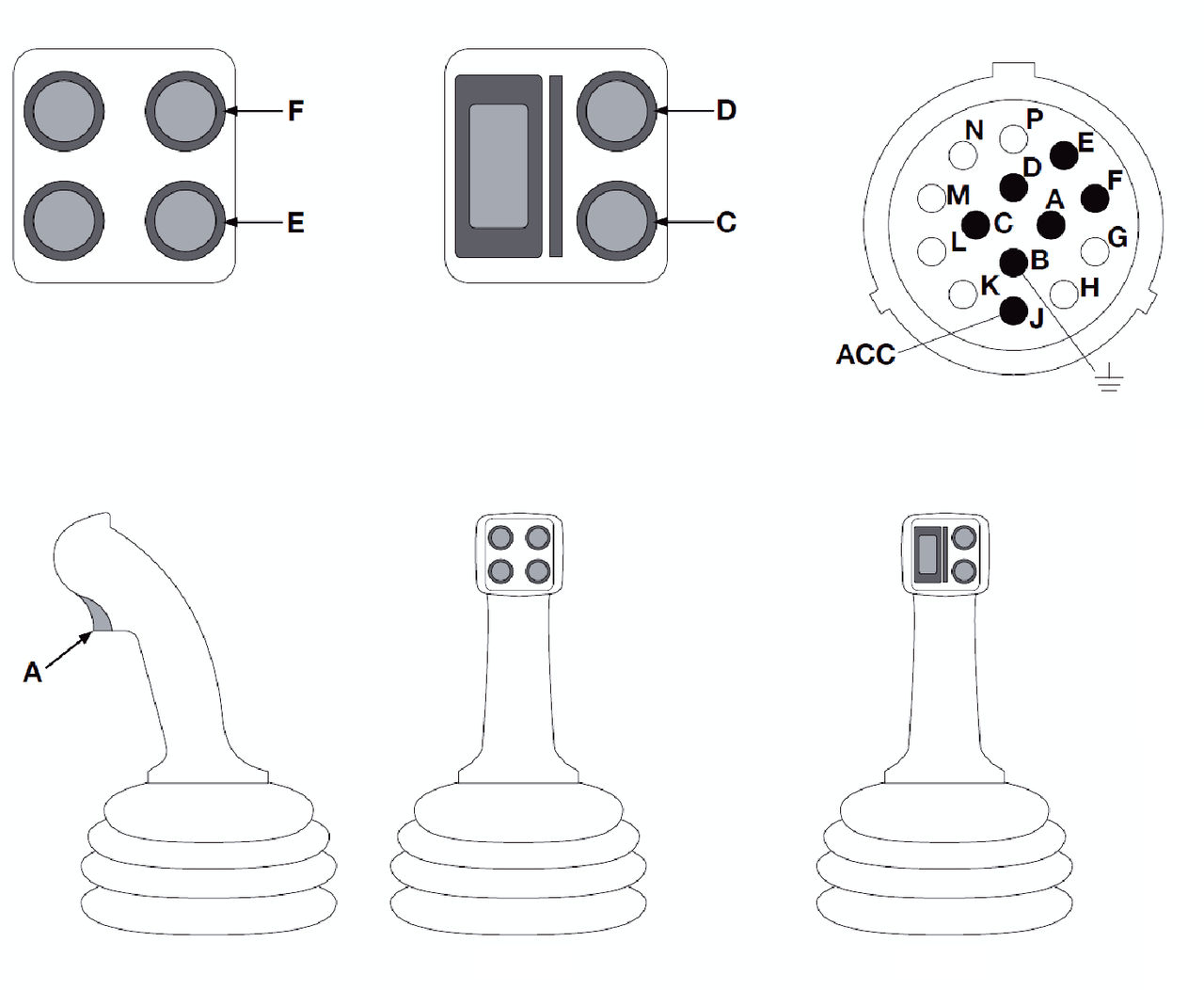

Machine joystick pin | SC024 harness pin color | Function | Combo function |
|---|---|---|---|
F | Black | Left raise | Increment |
E | Red | Left lower | Decrement |
D | White | Right raise | Auto |
C | Green | Right lower | Auto |
N/A | Orange | N/A | |
A | Yellow | Combo | |
Power splitter | |||
J | Red | Key power | |
B | Black | Ground |
