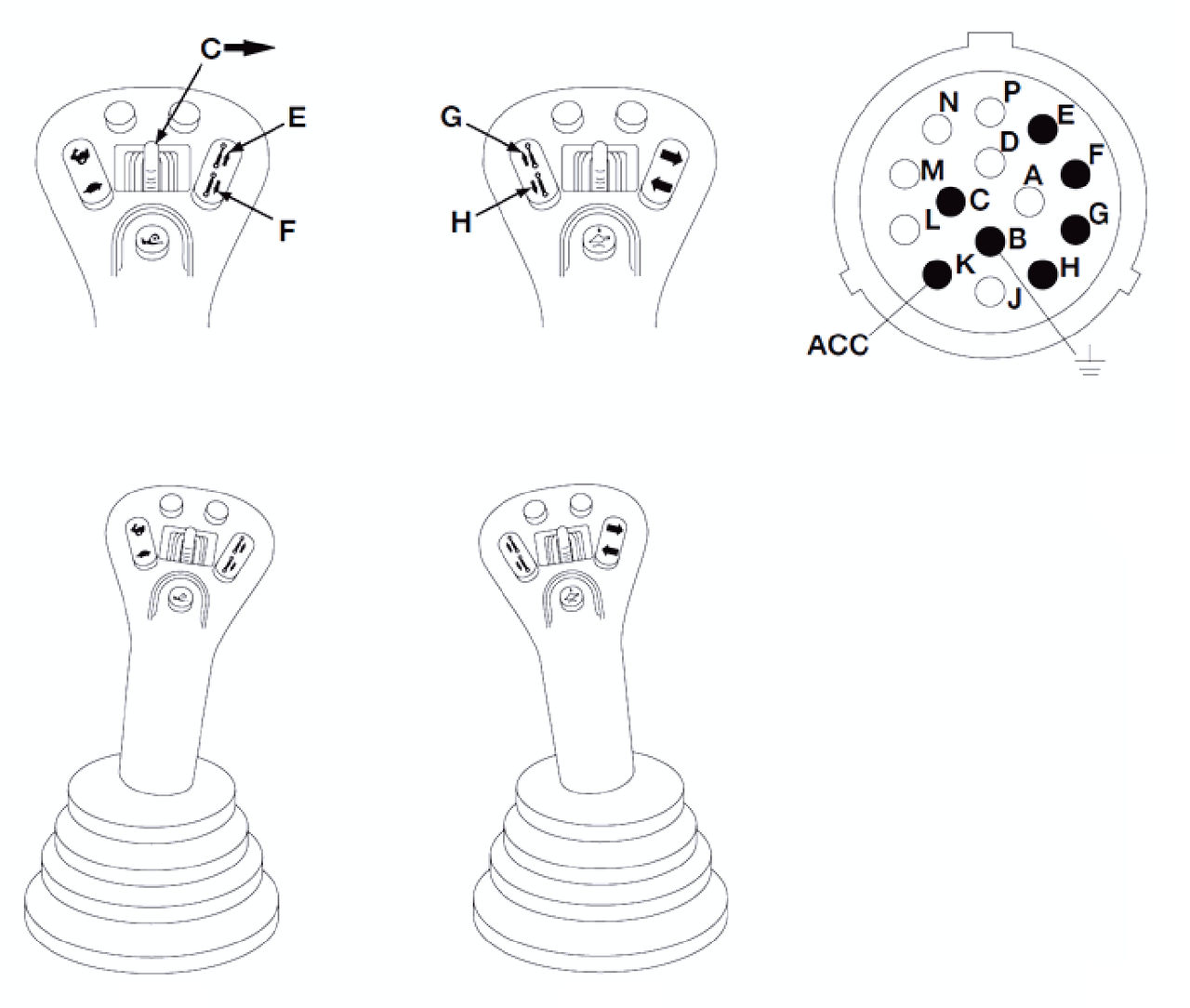

Machine joystick pin | SC024 harness pin color | Function | Combo function |
|---|---|---|---|
E | Black | Left raise | Increment |
F | Red | Left lower | Decrement |
G | White | Right raise | Auto |
H | Green | Right lower | Auto |
N/A | Orange | N/A | |
C | Yellow | Combo | |
Power splitter | |||
K | Red | Key power | |
B | Black | Ground |
