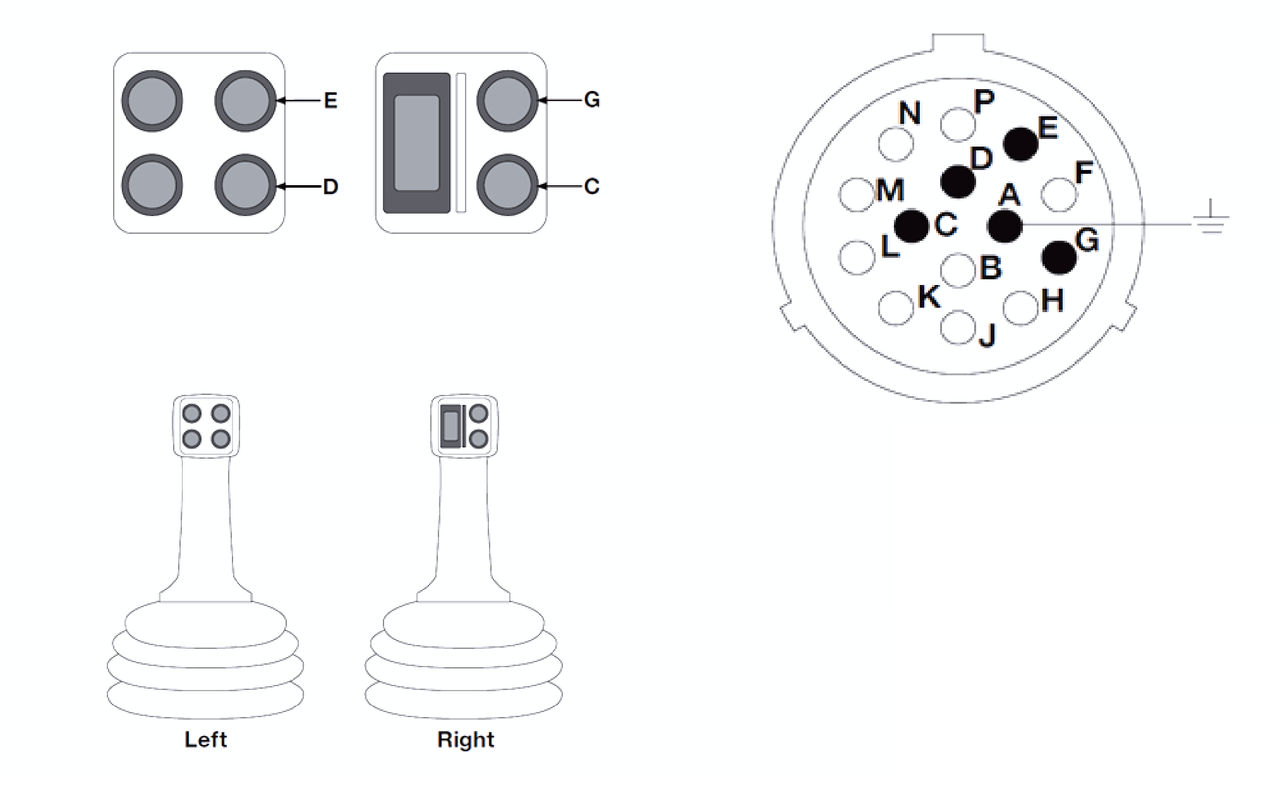

| Machine joystick pin | SC024 harness pin color | Function | Combo function |
|---|---|---|---|
E | Black | Left raise | Right raise |
D | Red | Left lower | Right lower |
N/A | White | N/A | |
N/A | Green | N/A | |
G | Orange | Auto | |
C | Yellow | Combo | |
Power splitter | |||
K | Red | Key power | |
A | Black | Ground |
