Box Blade measurements - Kubota and Level Best

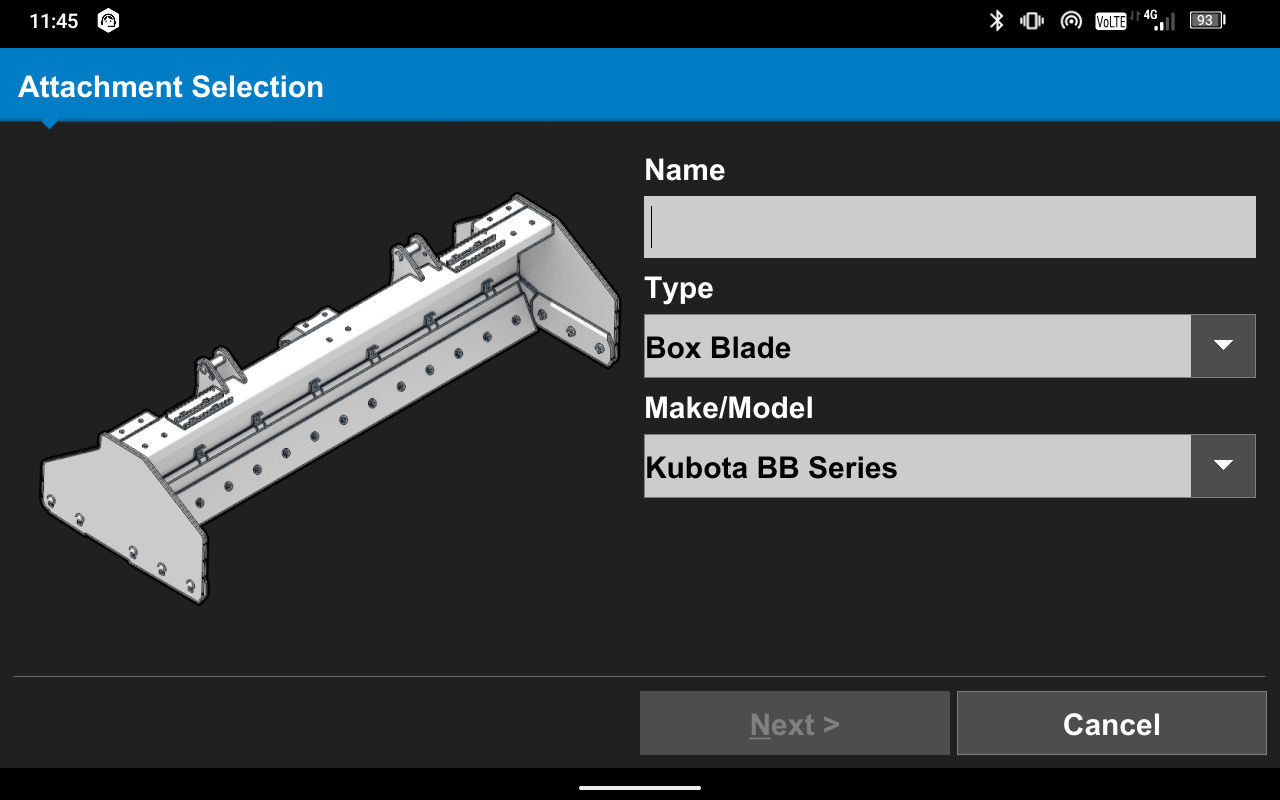

Select Box Blade from the Type list.
Select Kubota or Level Best for Make/Model.
ADDITIONAL INFORMATION:
Note: The Make/Model determines CAN communication from the SC024 controller to the MC-X1 controller. The system does not engage Automatic Control if the selection is not correct.
Select Next.

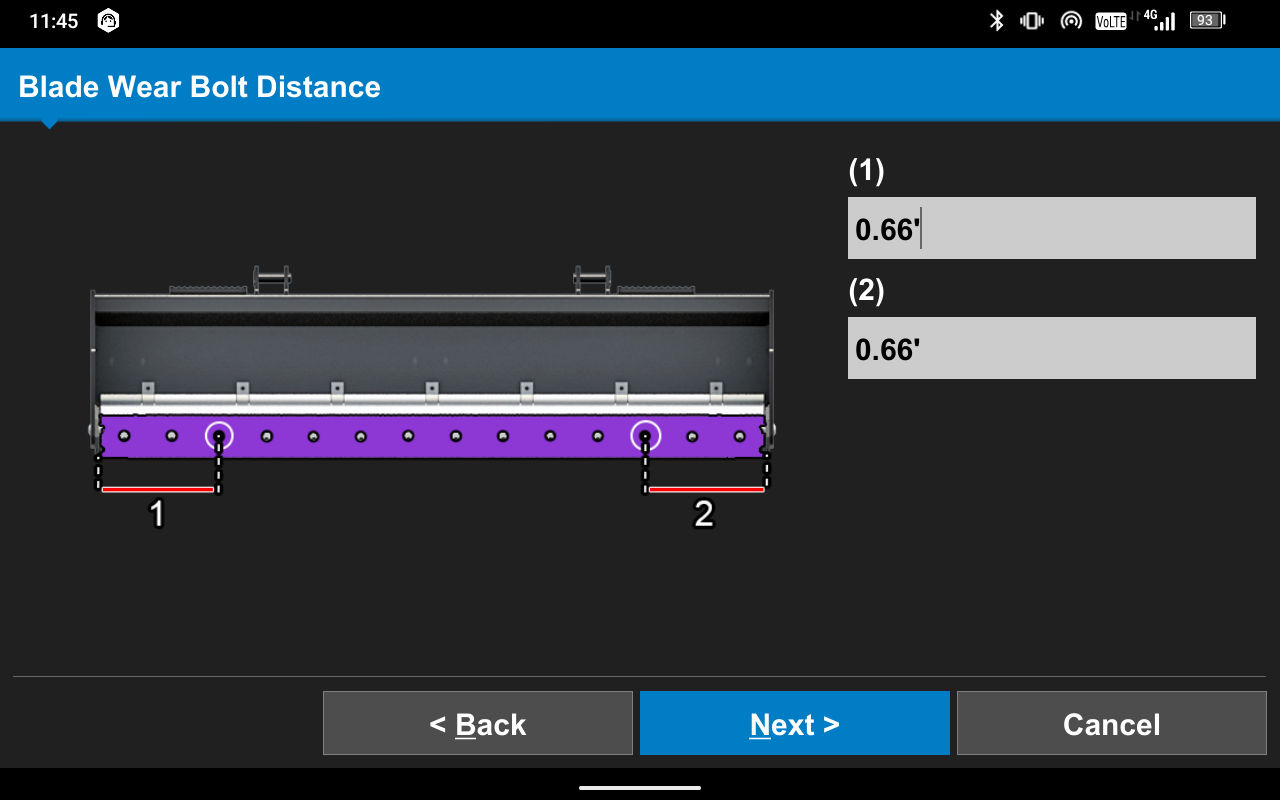

Follow the onscreen illustrations to measure the right side(1) and left side (2) Blade Wear Bolt Distance.
Enter the measured value for the right cutting edge in (1) and for the left cutting edge in (2).
Select Next.
ADDITIONAL INFORMATION:

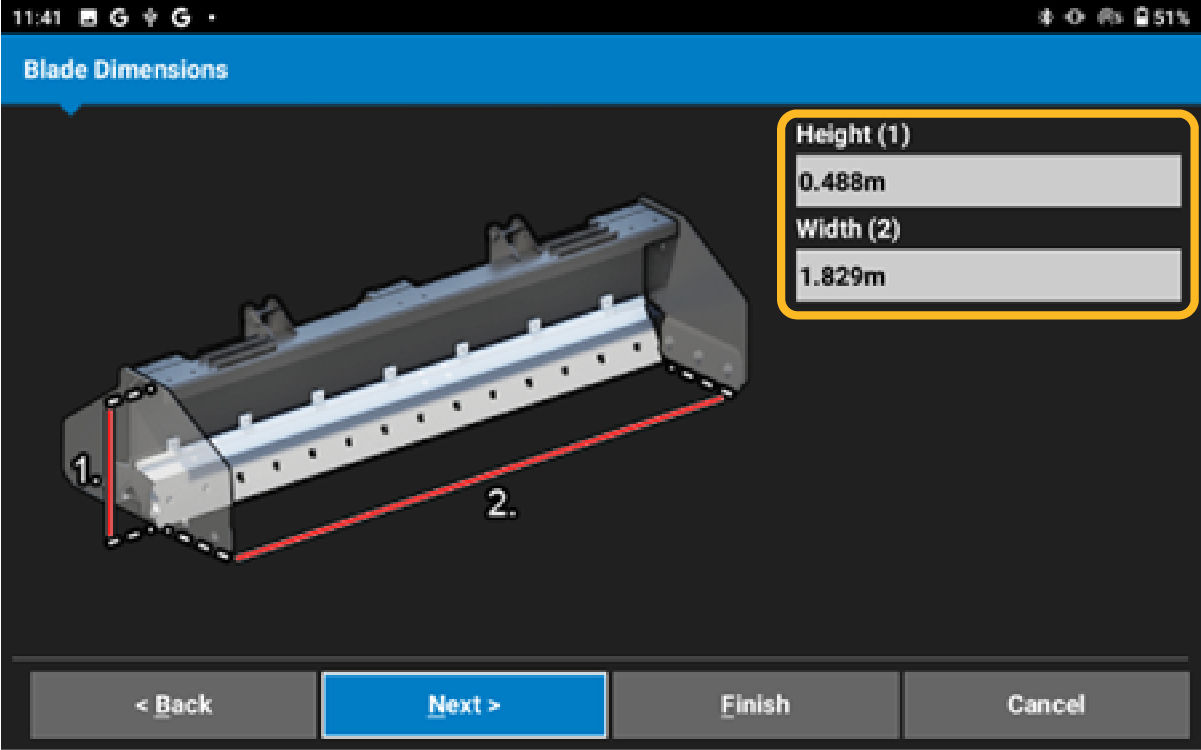

Measure from the bottom of the cutting edge to the top of the moldboard for blade Height (1).
Measure from the bottom right blade corner to the bottom left blade corner for blade Width (2).
Select Next.
ADDITIONAL INFORMATION:

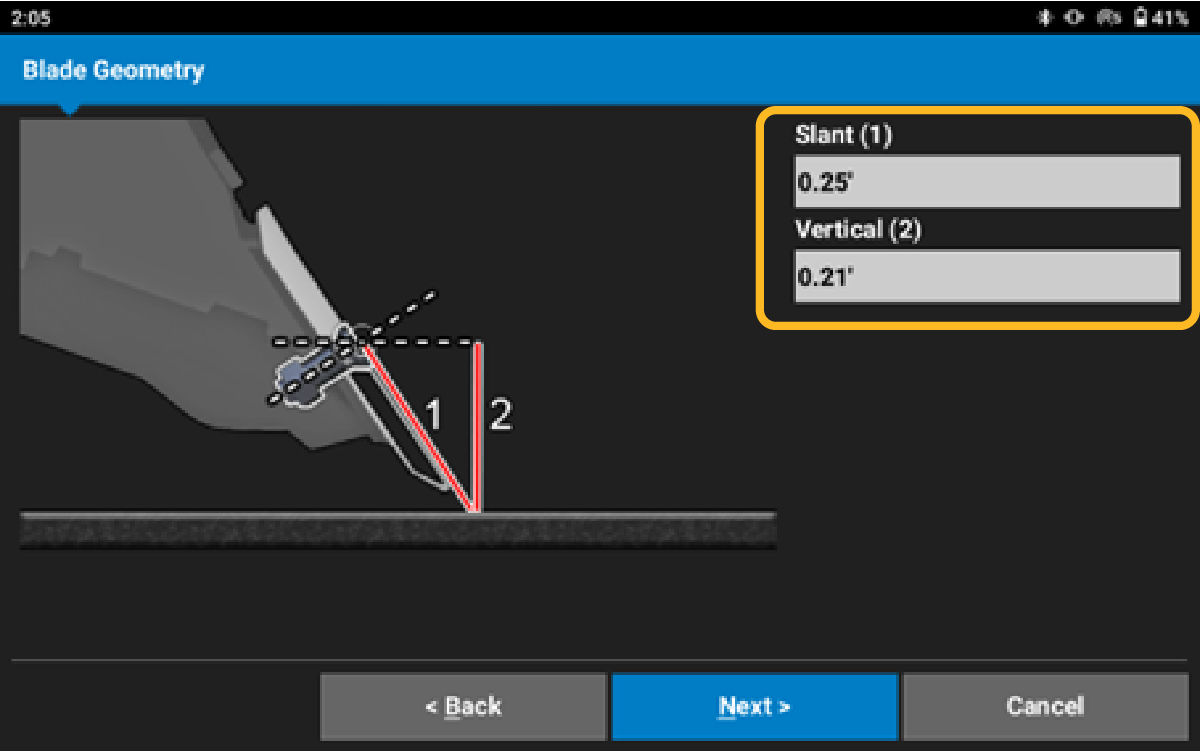

Measure the distance between the center of the cutting edge bolt and the bottom of the cutting edge. Enter the measurement for Slant (1).
Measure the vertical distance, straight up from the track plane to the center of the bolt. Enter the measurement for Vertical (2).
ADDITIONAL INFORMATION:
Select Next.
Select Mast Type. Select Z-Stack for one GR-i3, and then select GR-i3. For RP-i3, select Z-Stack, and then select RP-i3.
ADDITIONAL INFORMATION:
Select Next.
Measure from the snap point of the GR-i3 or the center of the A7 prism to the bottom of the cutting edge for Above (1) measurement.
Measure from the bottom right outside of the cutting edge to the center of the GR-i3 or prism for Inside (2) measurement.
Measure from the bottom of the cutting edge to the center of the GR-i3 or prism for Behind (3) measurement.
ADDITIONAL INFORMATION:
Select Next.
Assign the TS-i4 Hitch sensor. Select the Sensor ID drop-down menu. Use the recorded information from the installation. Select the Sensor ID, then select the Wrench icon.
Select the TS-i4 Hitch sensor IMU orientation.
ADDITIONAL INFORMATION:
Select OK.
ADDITIONAL INFORMATION:
Measure from the center of the right side hitch pivot pin to the center of the IMU crosshair for IMU Above (1) measurement.
Measure from the center of the right side hitch plate pivot pin to the center of the IMU crosshair for IMU Inside (2) measurement.
Measure from the center of the right side hitch plate pivot pin to the center of the IMU crosshair for IMU Behind (3) measurement.
Select Next.
Assign the TS-i4 Blade sensor. Select the Sensor ID drop-down menu. Use the recorded information from the installation. Select the Sensor ID, then select the Wrench icon.
Select the TS-i4 Blade sensor IMU orientation.
ADDITIONAL INFORMATION:
Select OK.
ADDITIONAL INFORMATION:
Measure from the bottom of the cutting edge to the center of the crosshair on the TS-i4 Blade sensor for Above (1) measurement.
Measure from the mast side (left) blade corner to the center of the TS-i4 Blade sensor crosshair for Inside (2) measurement.
Measure from the bottom of the cutting edge to the center of the crosshair on the TS-i4 Blade sensor for Behind (3) measurement.
Select Next.
Forward through the next two radio and GNSS settings screens. These are configured subsequently.
Select Finish.
Select to set as Active Attachment or not.
Continue to do the IMU calibration. Refer to the related topic for instruction
