Bucket measurements

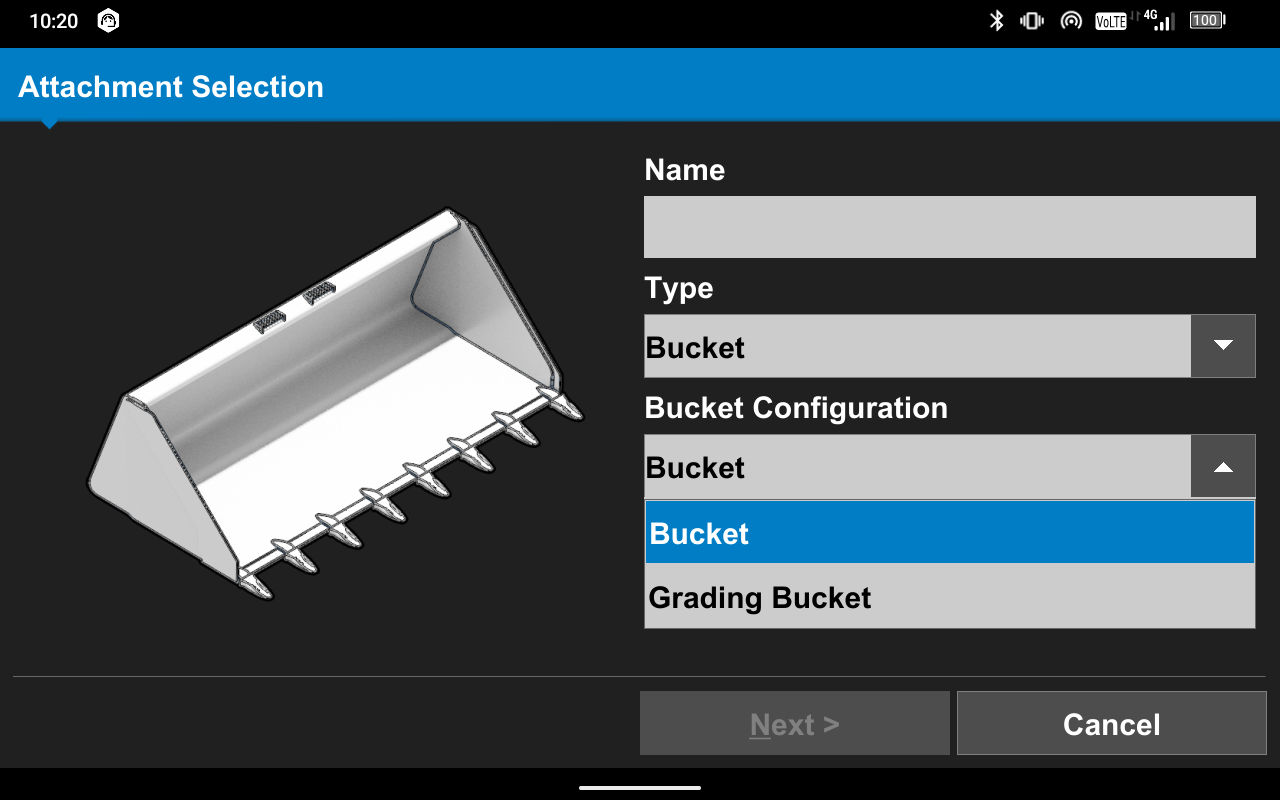

  1. Select Bucket from the Type list. A second drop-down list for Bucket Configuration shows.
  2. Select Grading Bucket for a bucket with a smooth cutting edge or Bucket for a standard bucket with teeth.
    ADDITIONAL INFORMATION:
    Figure: Select bucket configuration
  3. Select Next.

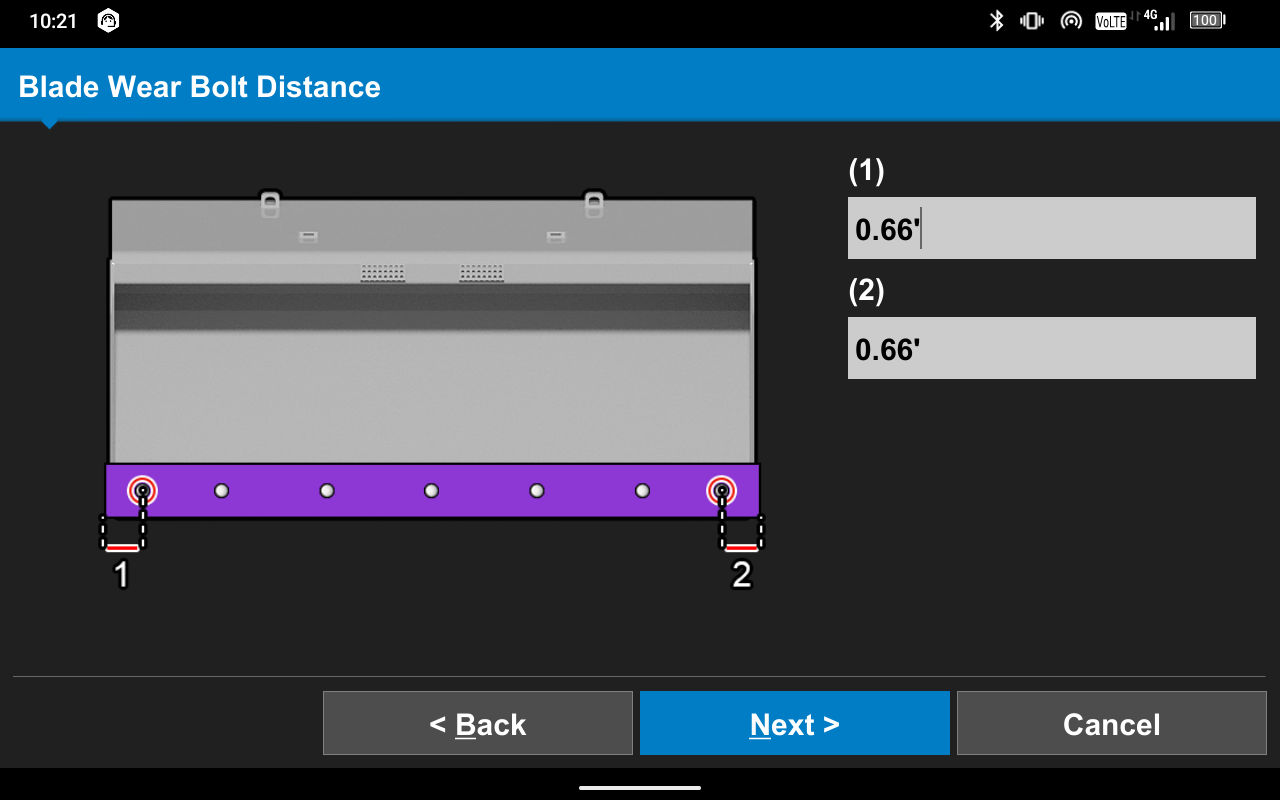

  4. Complete the onscreen instructions to measure the right side (1) and left side (2) Blade Wear Bolt Distance.
    ADDITIONAL INFORMATION:
  5. Select Next.

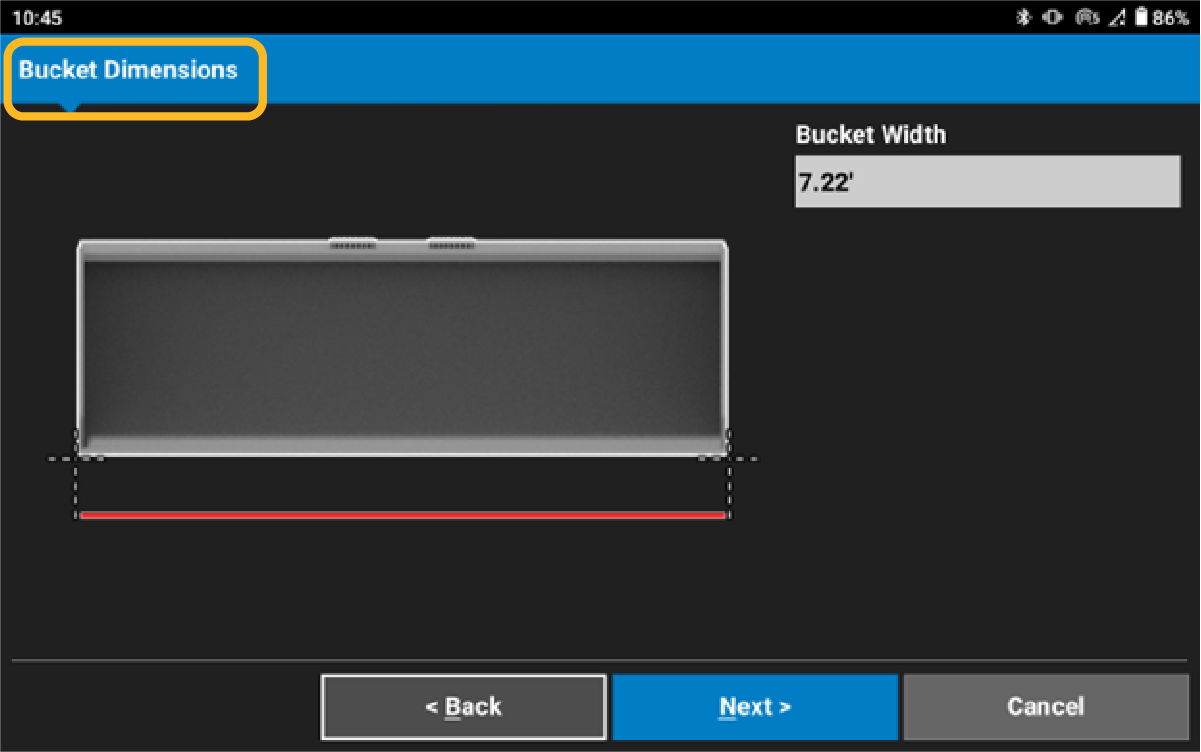

  6. Measure the Bucket Width, from the right blade corner to the left blade corner.
    ADDITIONAL INFORMATION:
  7. Select Next.

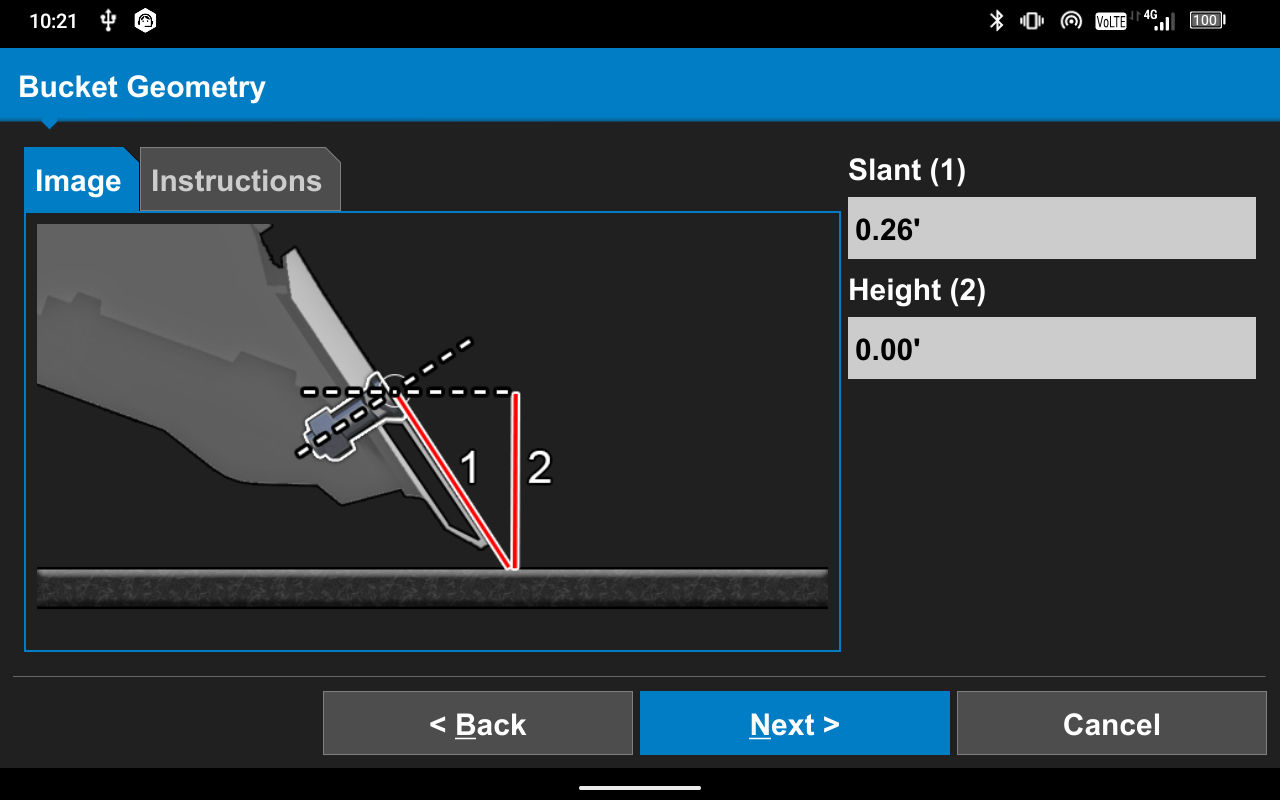

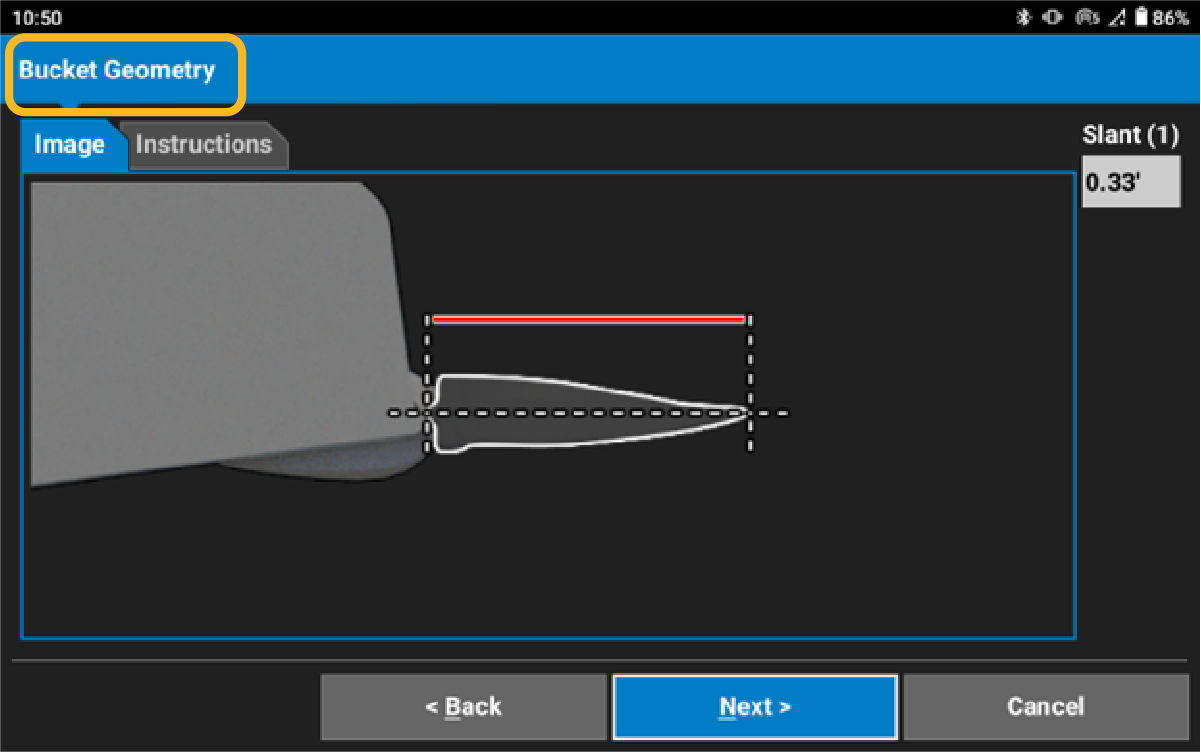

  8. Measure Slant (1), from the center of the bolt to the outermost tooth edge for standard buckets. Grading buckets measure from the center of the bolt to the cutting edge.
  9. Measure Height (2) from the bottom of the bucket cutting edge or tooth to the center of the bolt.
    ADDITIONAL INFORMATION:
  10. Select Next.
  11. Assign the TS-i4 Hitch sensor by selecting the Sensor ID drop-down menu. Use the recorded information from the installation. Select the Sensor ID.

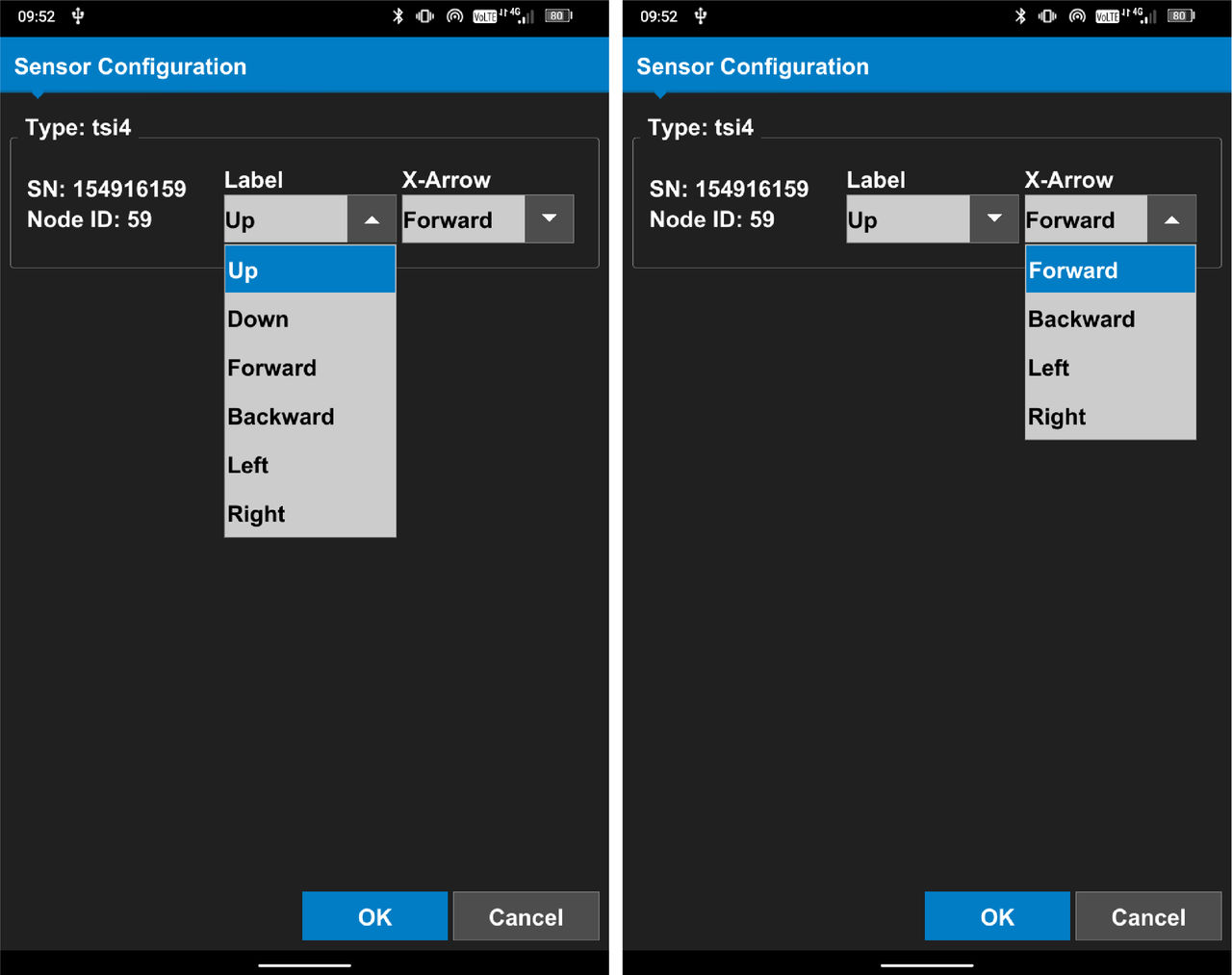

  12. Select the Wrench icon and select the TS-i4 Hitch sensor orientation.
    ADDITIONAL INFORMATION:
  13. Select OK.
    ADDITIONAL INFORMATION:
  14. Measure from the center of the right side hitch pivot pin to the center of the IMU crosshair for IMU Above (1) measurement.
  15. Measure from the center of the right side hitch plate pivot pin to the center of the IMU crosshair for IMU Inside (2) measurement.
  16. Measure from the center of the right side hitch plate pivot pin to the center of the IMU crosshair for IMU Behind (3) measurement.
    ADDITIONAL INFORMATION:
    Note: The TS-i4 Hitch sensor is usually behind the hitch plate pivot pin, but some machines have it a bit forward. If the TS-i4 Hitch sensor is forward of the pitch plate pivot pin, enter a measurement with a negative value.
  17. Select Next.

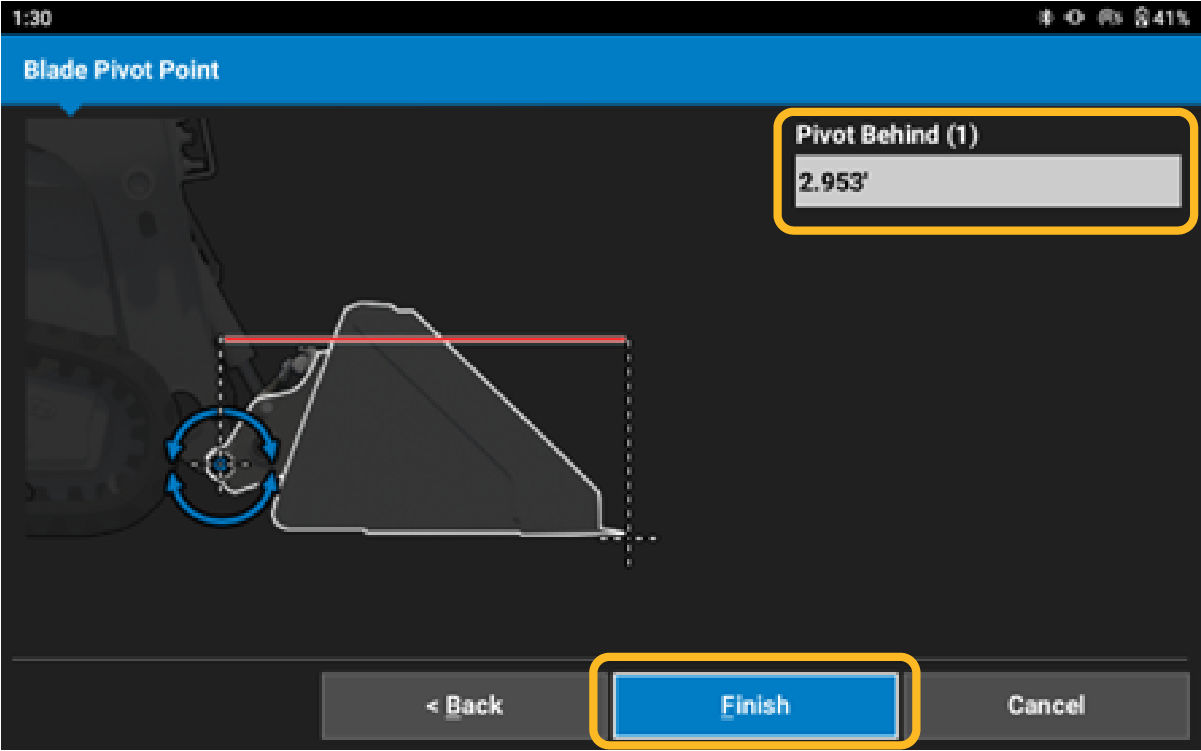

  18. Measure Pivot Behind (1), the distance from the right side hitch plate pivot pin to the bucket cutting edge or tooth.
  19. Select Finish.
    ADDITIONAL INFORMATION:
  20. Select to set as Active Attachment or not.
  21. Continue to do the IMU calibration. Refer to the related topic for instructions.
