Key calibration points
These points are the key to correct main slope and cross slope calibrations:

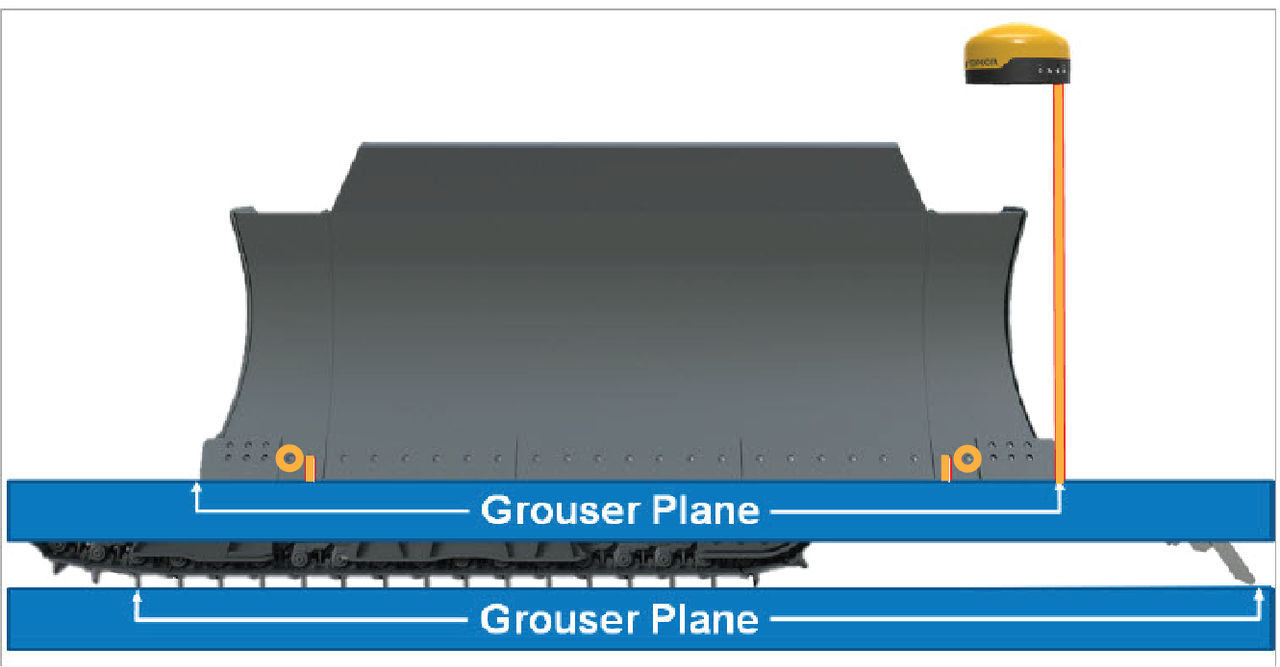

- The cross slope of the cutting edge bolts must match the body cross slope.ADDITIONAL INFORMATION:
- Grouser plane

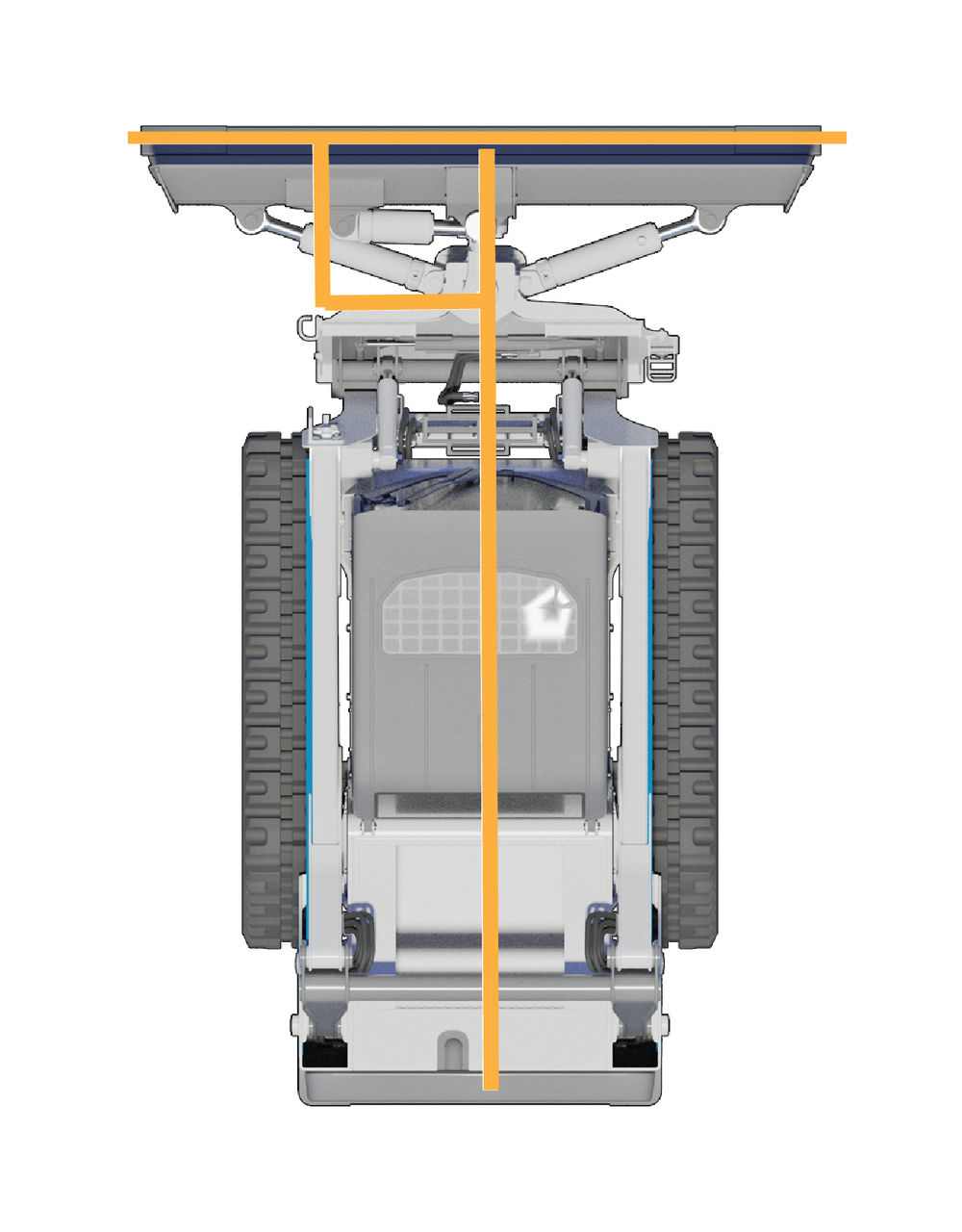

- The blade must be perpendicular or square to the body.ADDITIONAL INFORMATION:

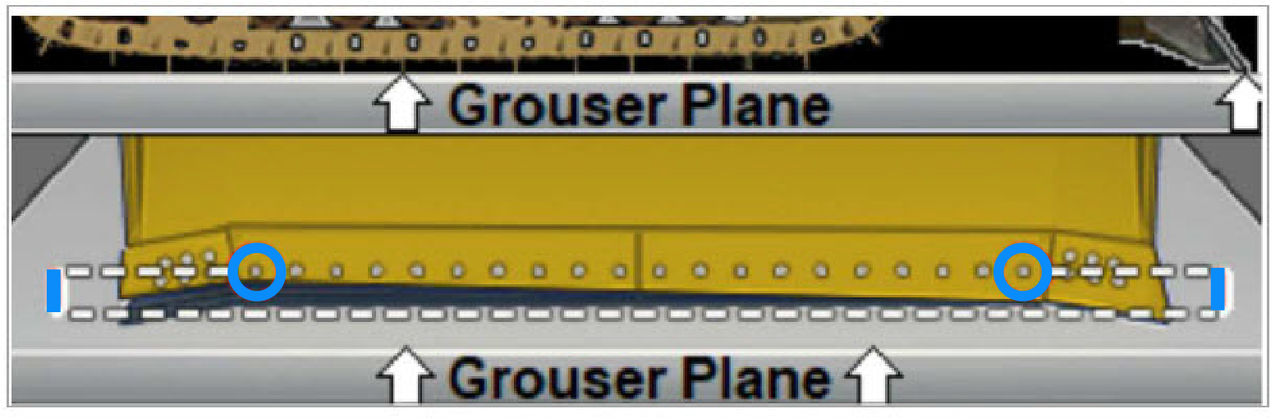

- The cutting edge bolts of the blade must be parallel to the planar surface or an equal distance from each bolt to the planar surface.
- The lowest point of the cutting edge of the blade must touch the planar surface.ADDITIONAL INFORMATION:
- Grouser plane
