LPS system termination

It is important to have a hard terminator on the TS-i4 and another terminator near the MC-X1. The figure shows the terminator placement.

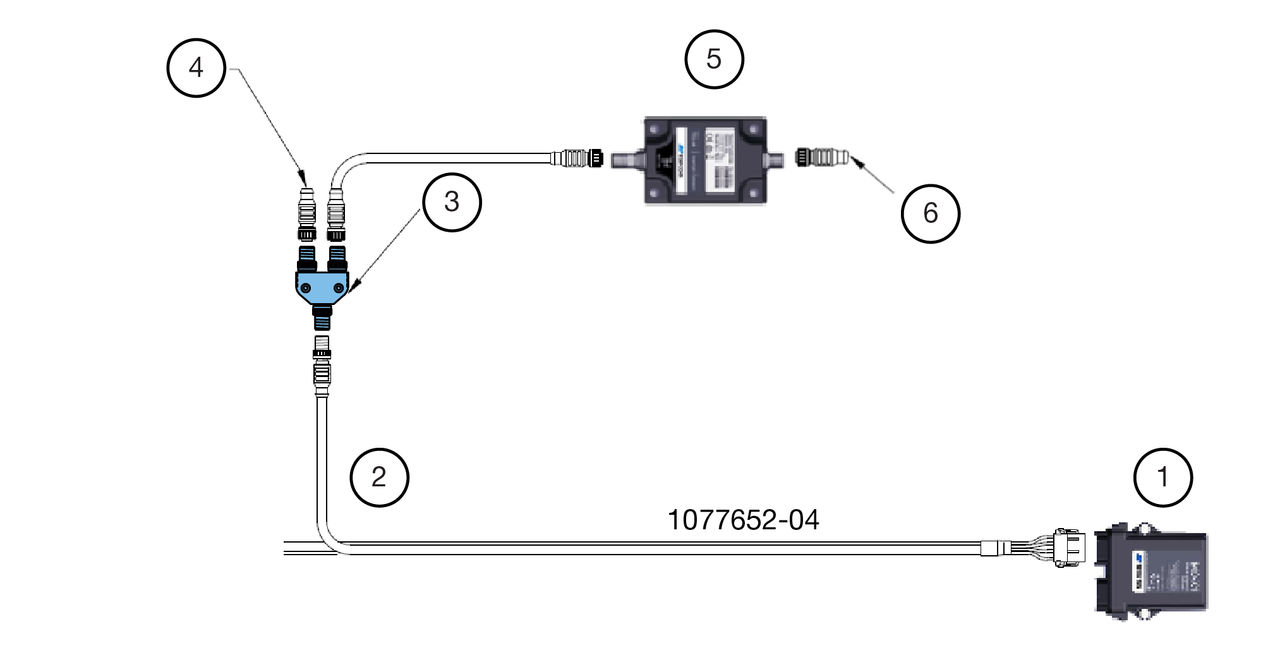

Figure: LPS system termination
  1. MC-X1
  2. CANOpen
  3. Tee
  4. Terminator
  5. TS-i4 Body Sensor for LPS configuration
  6. Terminator
