MC-X CAT grade control system components

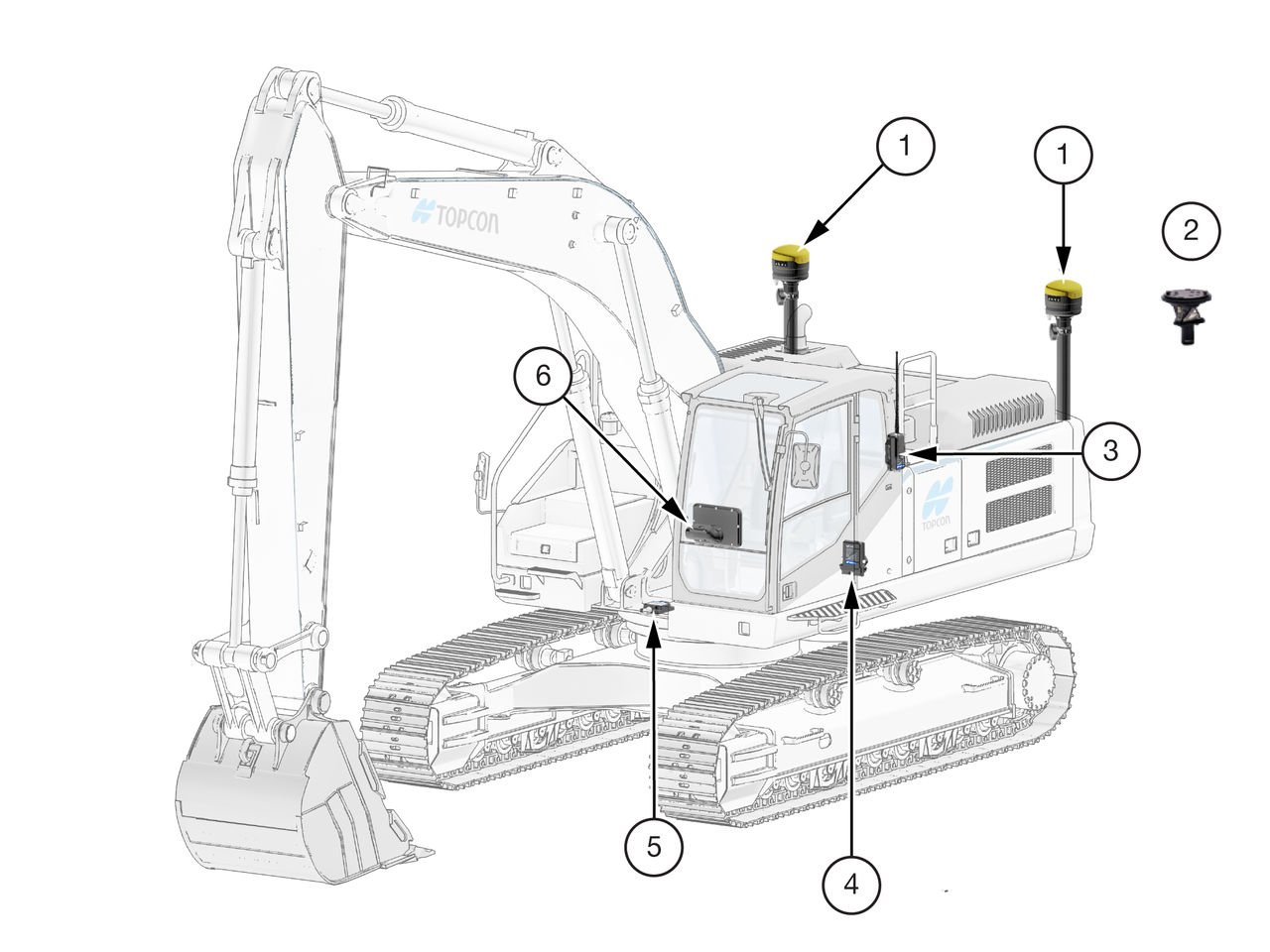

Figure: MC-X CAT grade control system components
  1. GNSS Receiver
  2. A7R Prism
  3. Radio
  4. MC-X1 Controller
  5. TS-i4 Body Sensor
  6. GX-Series Display

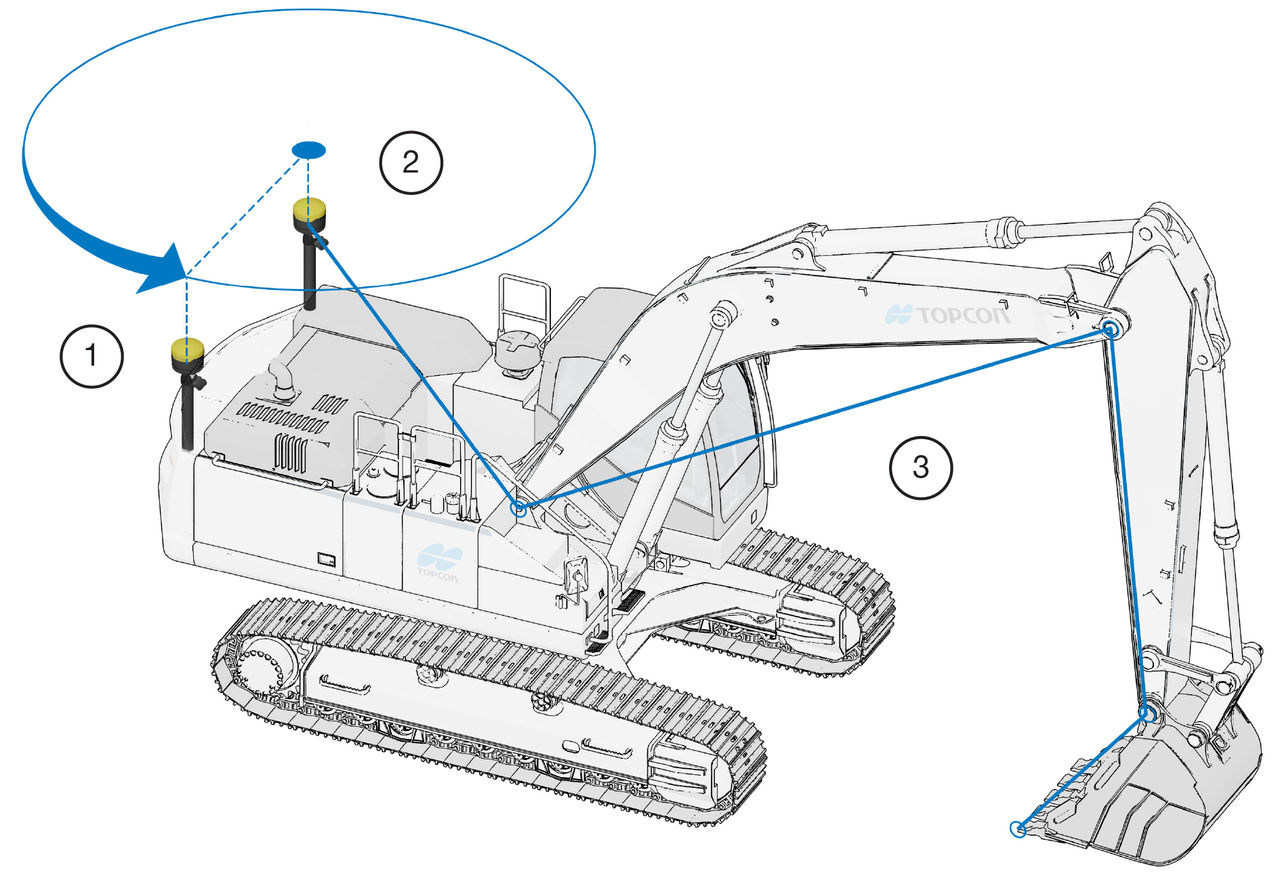

Figure: Antenna position and heading references
  1. Auxiliary (Aux) antenna supplies heading
  2. Main antenna position
  3. Project position from main Antenna to bucket teeth
The Main and Auxiliary antennas supply position and heading information:
  • Main antenna determines 3D machine position
  • Aux antenna determines heading using relative position
