Prism (LPS) measurements

  1. Measure and enter the prism offsets on the Machine Setupscreen for LPS configuration only.
    ADDITIONAL INFORMATION:

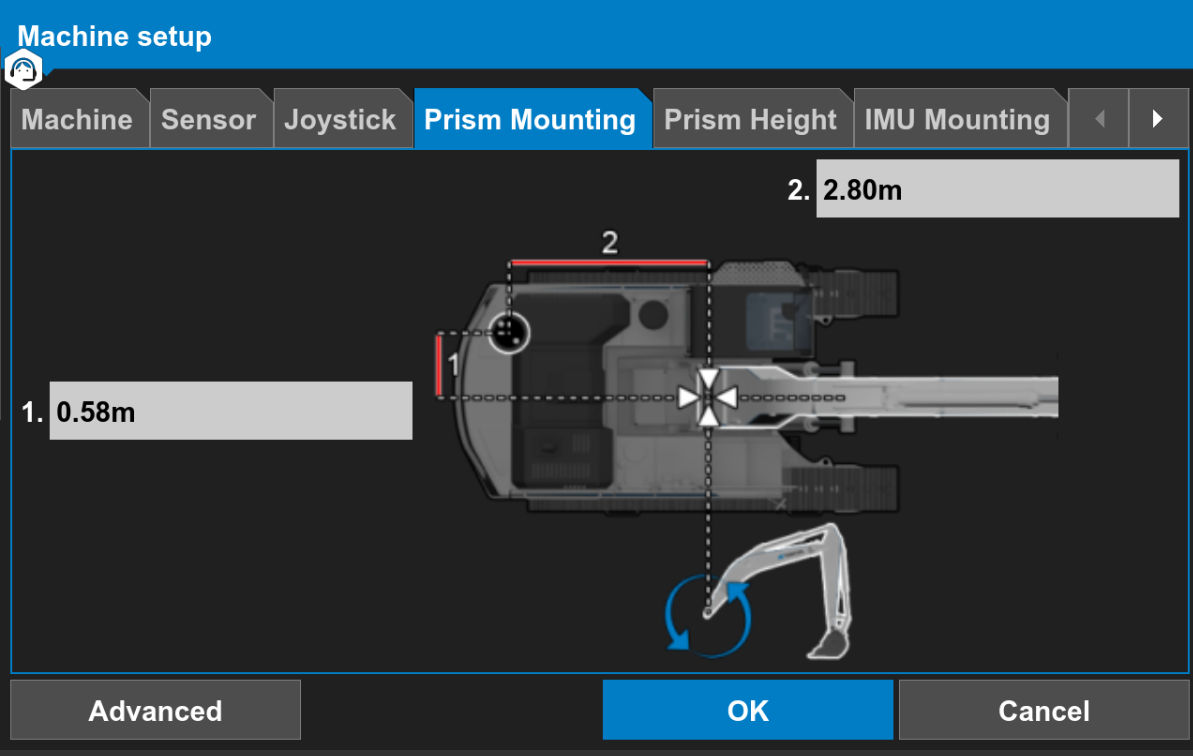

    Figure: Excavator prism mount - center of rotation offsets
  2. Measure and enter the excavator prism height offsets for LPS configuration only.
    ADDITIONAL INFORMATION:

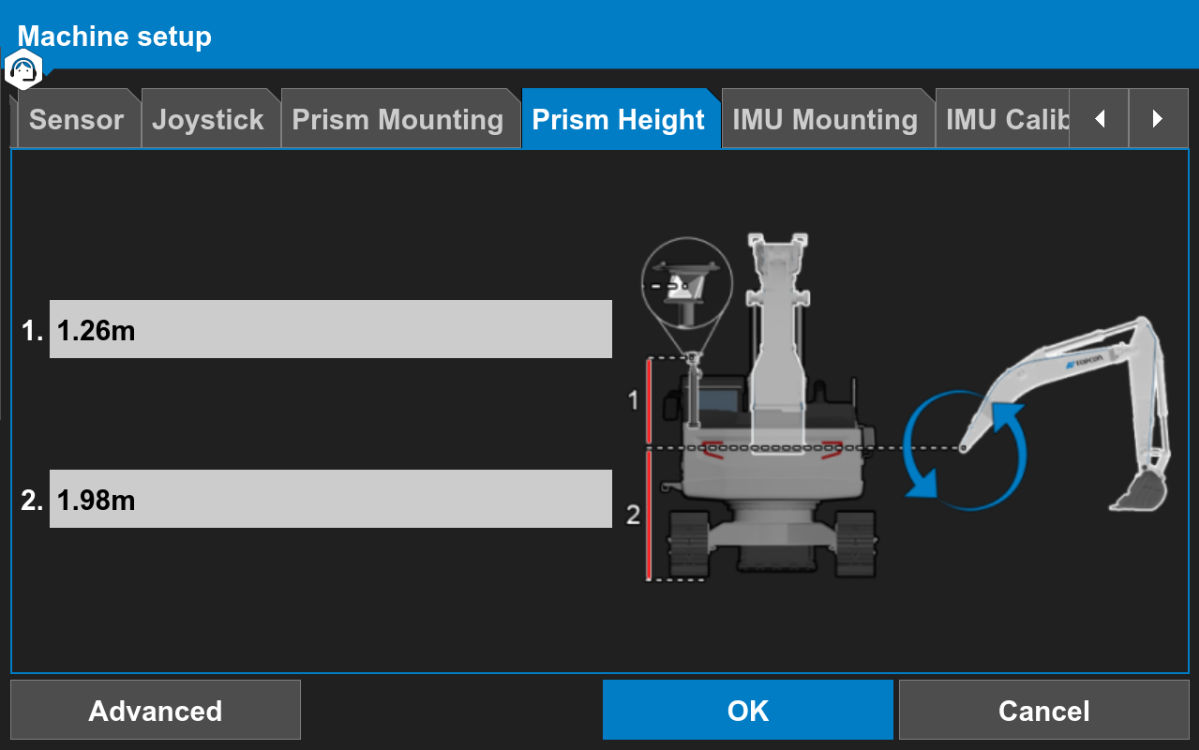

    Figure: Excavator prism height offsets
  3. Measure and enter the body IMU mount offsets on the Machine Setup screen for LPS configuration only.
    ADDITIONAL INFORMATION:

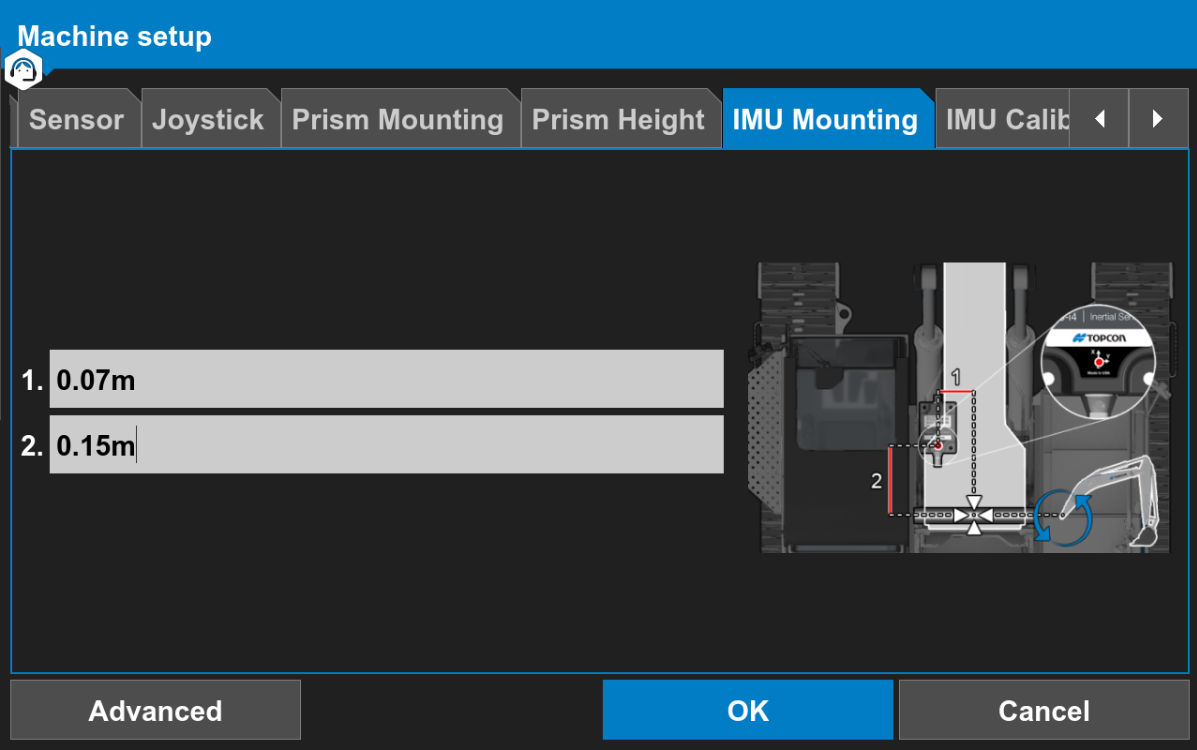

    Figure: Excavator IMU mount - body IMU mounting offsets
