Measure and enter the GNSS antenna (dual) heights.
- Measure and enter the excavator prism mounting offsets.ADDITIONAL INFORMATION:
Figure: Excavator prism mounting offsets
- Measure and enter the excavator antenna height offsets.ADDITIONAL INFORMATION:

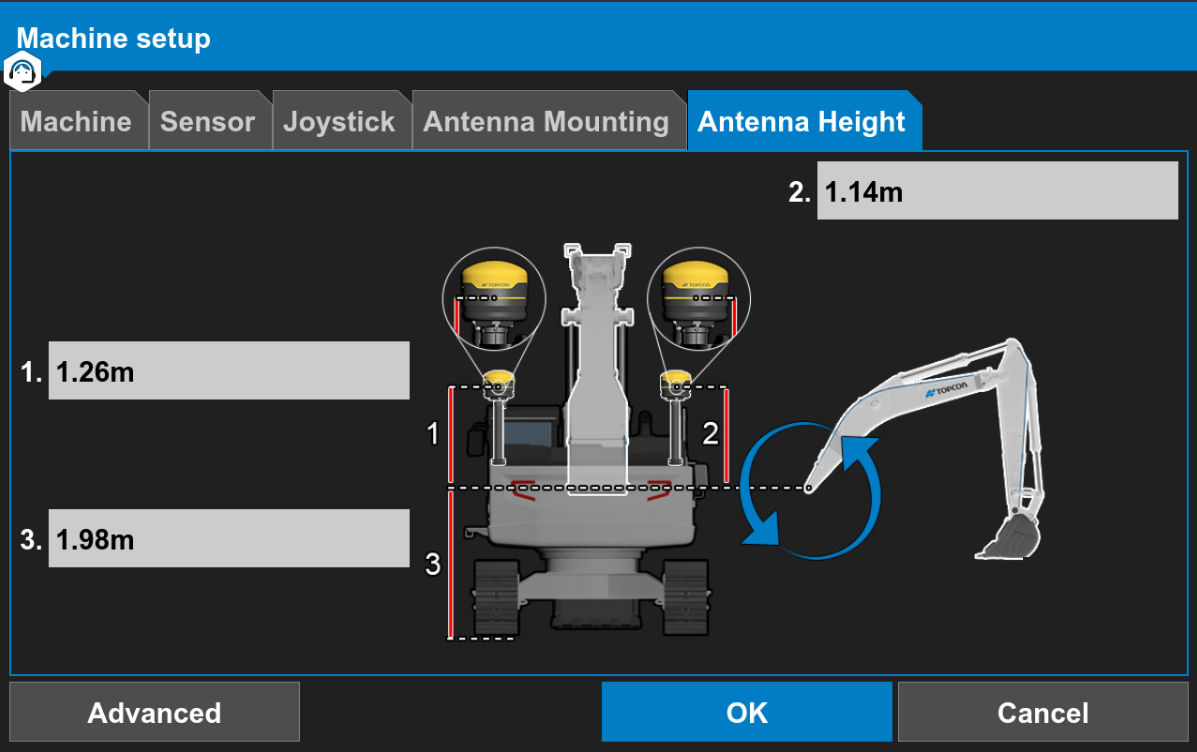

Figure: Excavator antenna height offsets

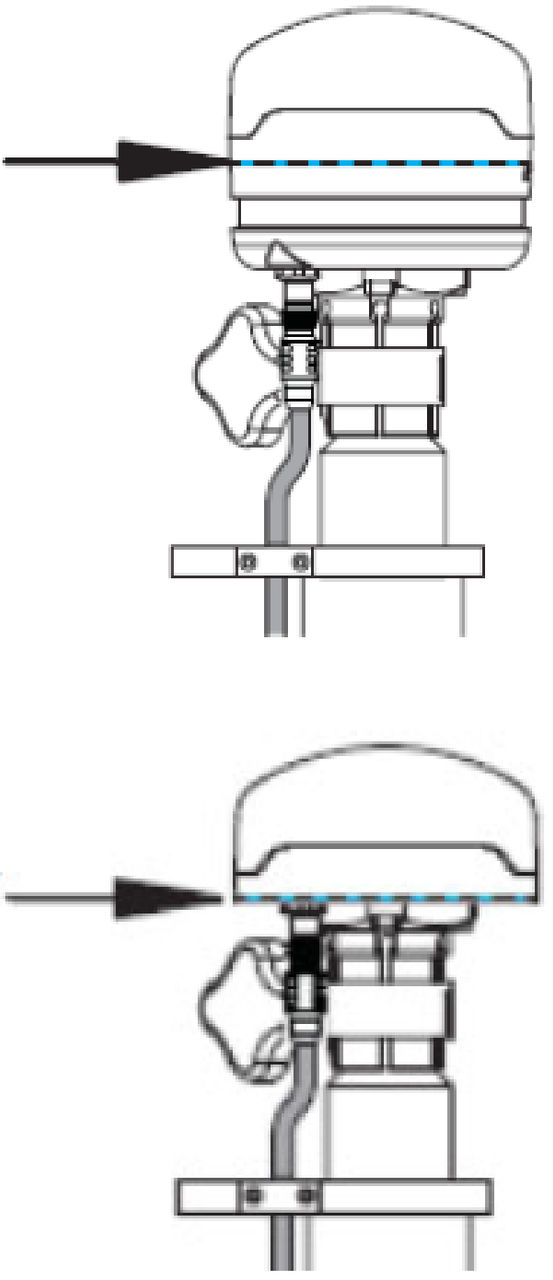

- Take the Antenna Above measurement from the bottom of the GR-i3 (the top of the Vibration Mount).
- Take the Antenna Above measurement from the bottom of the GR-i3F.ADDITIONAL INFORMATION:
Figure: Antenna measurement
