MC-X1 specifications

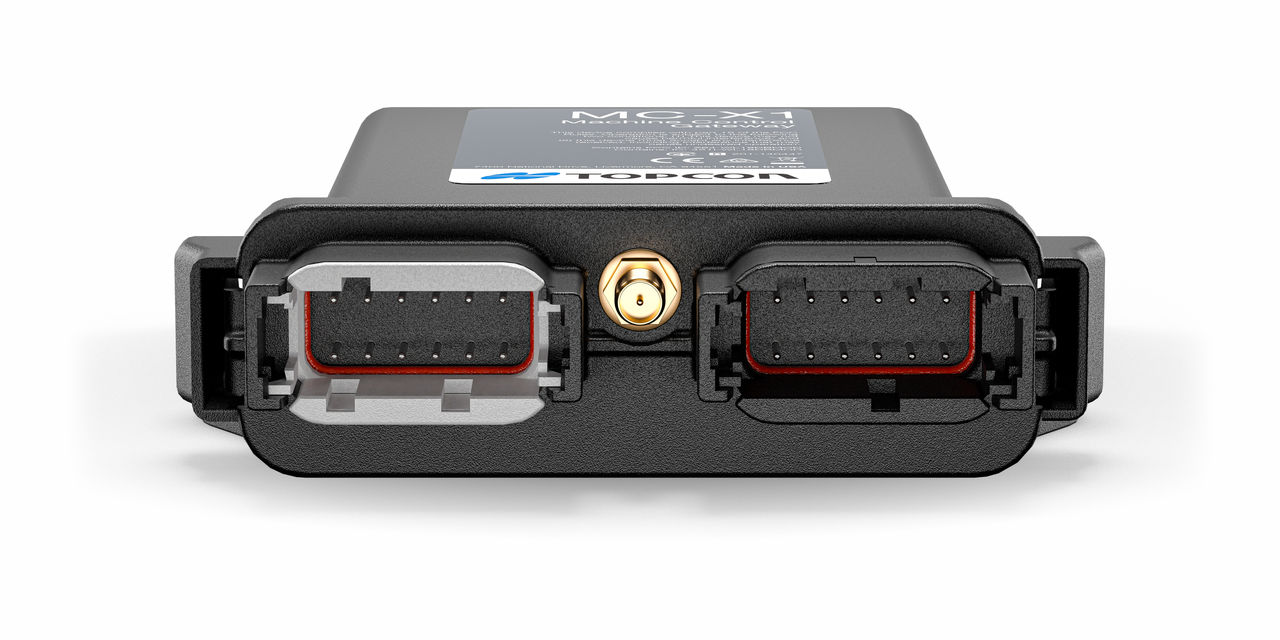

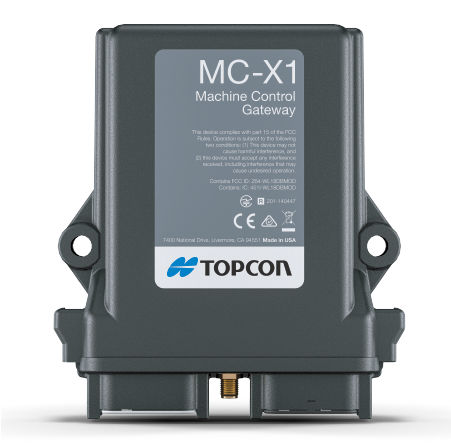

The MC-X1 controller is designed for rugged machine environments. MC-X1 features internal CAN bus, Ethernet, Wi-Fi®, and Bluetooth® communications inside an ultra-light compact design.

Key features

  • Rugged ABS plastic housing
  • Internal Wi-Fi/Bluetooth
  • Lightest controller available on the market
  • IP67

Electrical

Item Specification
Supply Voltage9-32 V
Supply Current
Typical current: 0.2 A at 24 V
Maximum current: 7.5 A at 24V
Electromagnetic Compatibility
Applicable Standards
Emissions: Applicable regulation: ISO 13766-1:2018; EN 55032:2012
Immunity: Applicable regulation: ISO 13766-2:2018; EN 301 489-1
Switched Output Power5 A sensor/conditioned output power

Physical

Item Specification
HousingNylon
Envelope Dimensions5.25 in x 4.68 in x 1.42 in (133.03 mm x 118.8 mm x 36 mm)
Connectors12-pin DTM Deutsch® connectors, unique keyed - 2 ea.
Weight0.5 lbs (0.23 kg)

Environmental

ItemSpecification
Operating Temperature
-40 °F to 158 °F (-40 °C to 70 °C)
Moisture Test
Per SR-012 level 2: 240 hours at 96% RH
Ingress ProtectionIP67
Shock Test
25 G 11 ms 1/2 sine wave 6X each axis
Salt Fog TestASTM B117-03
Vibration Test10-2000 Hz Random, 7.7 Grms

Communications

ItemSpecification
Ports
RS232/Digital IO - 1 ea.
Ethernet - 2 ea.
CAN 2.0 - 2 ea.
RF Radiated ImmunityApplicable regulation: ISO 13766-1:2018

Connector pinouts

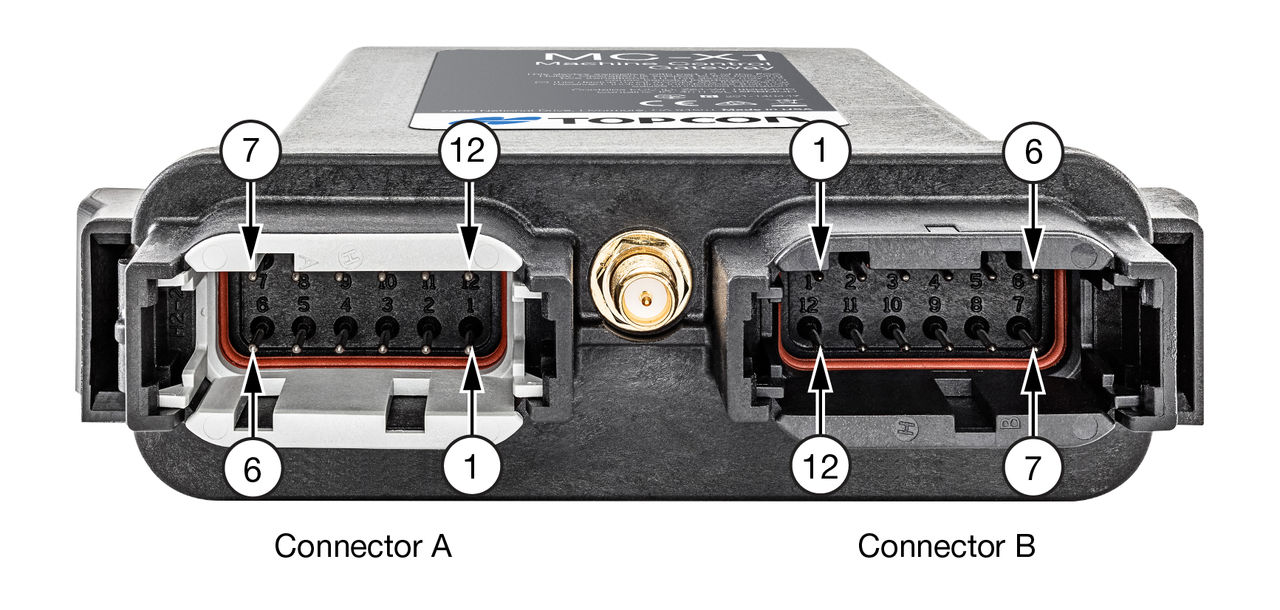

Figure: MC-X1 connector pinouts
Connector A
Connector A - DTM 12-pin (A-coded, Gray)
1Power In
2Ground
3Ground
4Conditioned Power Out
5Ignition input (HW interlock and input to CPU)
6Ground
7
Ethernet 1 - RX+
8Ethernet 1 - RX-
9
Ethernet 1 - TX+
10
Ethernet 1 - TX-
11CAN 1 - Low
12CAN 1 - High
Connector B
Connector B - DTM 12-pin (B-coded, Black)
1
Ethernet 2 - RX+
2
Ethernet 2 - RX-
3
Ethernet 2 - TX+
4
Ethernet 2 - TX-
5
CAN 2 - Low
6
CAN 2 - High
7Conditioned Power Out
8Ground
9Ground
10Digital In/Out, RS-232 RX, PPS/Event In/Out
11Digital In/Out, RS-232 TX, PPS/Event In/Out
12Conditioned Power Out

Envelope dimensions

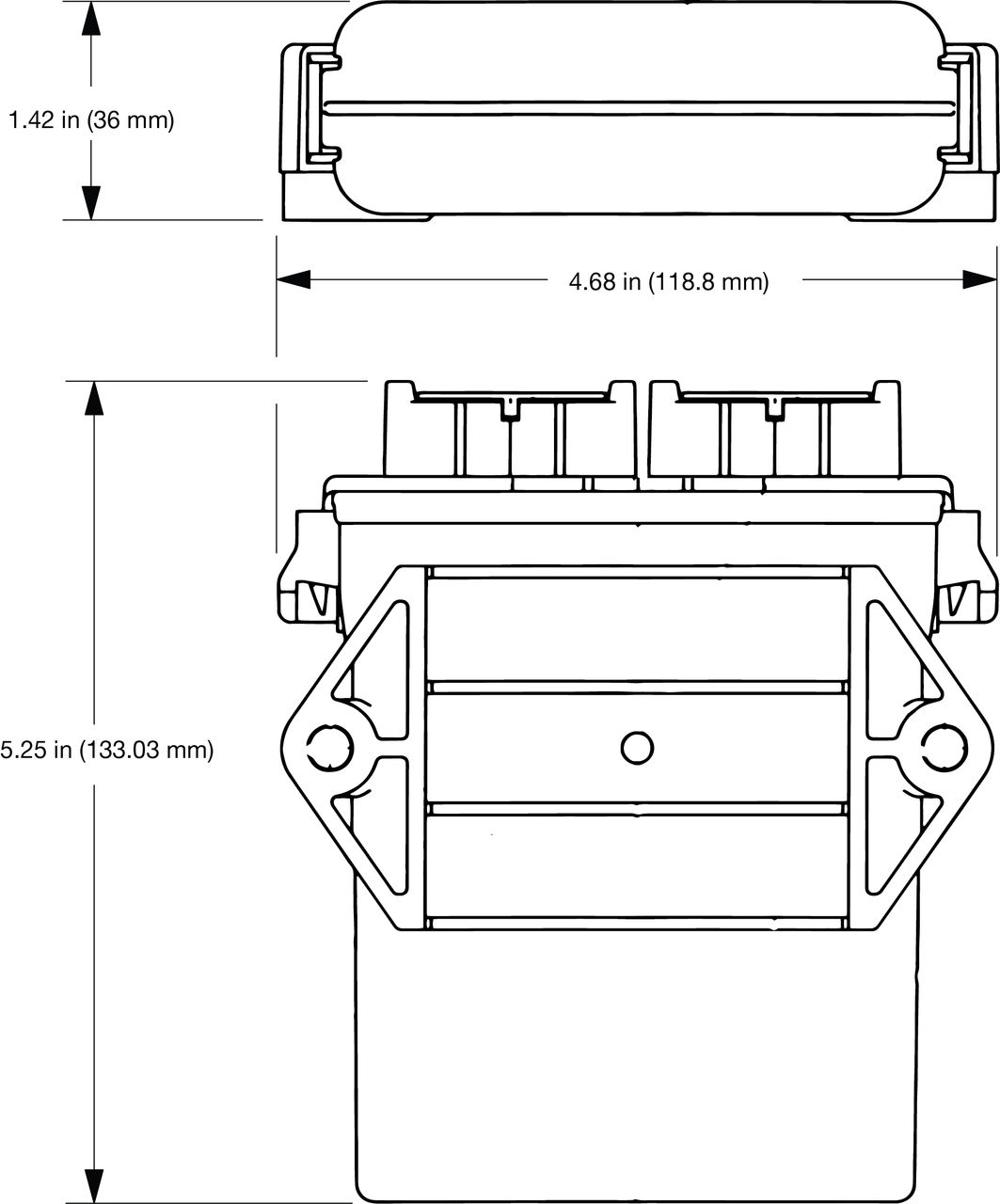

Figure: Envelope dimensions
