GX-90 specifications
The GX-90 is a compact, rugged display featuring a 10.1-inch full-color LCD multi-touch screen, offering superior visibility and interaction in any environment. Powered by a robust Linux® system, it delivers grade information and allows for control with exceptional precision. Designed with a strong cast housing and sealed internals, the GX-90 ensures durability and reliability. Enhanced with a USB-C port for seamless connectivity. The GX-90 is the optimal solution for demanding machine control applications.
Key features
Large Display: Features a 10.1-inch diagonal sunlight-viewable color LCD, enhancing visibility in various lighting conditions with a responsive, capacitive multi-touch interface. Supports both portrait and landscape orientations for versatile viewing options.
Linux Operating System: Runs on a robust Linux platform, ensuring stable and powerful performance for processing.
USB-C Connectivity for Efficient Workflow: The GX-90 includes a USB-C port, complying with modern connectivity standards for efficient data transfer.
Power Connection: Experience seamless operation with our enhanced power connection, now compatible with switched power sources. The display automatically activates with the machine, eliminating the need for manual intervention.
Gorilla® Glass: Gorilla Glass is known for its exceptional strength, scratch resistance, and durability compared to traditional glass, and offers excellent sunlight visibility.
Electrical
Item
Specification
Supply Voltage
9-36 VDC
Supply Current
Typical current: 0.5 A at 24 V
Maximum current: 7 A at 9 V
Switched Output Power
100 mA @5 VDC output
Emission
Applicable regulation: ISO 13766-1:2018
Immunity
Applicable regulation: ISO 13766-1:2018 ESD: ±8 kV Contact Discharge, ±15 kV Air Discharge
Electrical Transients
ISO 7637-2:2011 Pulse 1, 2a, 2b, 3a, 3b and ISO 16750-2:2023 starting profile, load dump
Physical
Item
Specification
Display
10.1 in LCD display - 1280 x 800 resolution, optically bonded capacitive touchscreen
~4.6 lbs (~2.1 kg) with RAM-Mount; ~4.4 lbs (2.0 kg) without RAM-Mount
Environmental
Item
Specification
Operating Temperature
-4 °F to 158 °F (-20 °C to 70 °C)
Storage Temperature
-40 °F to 185 °F (-40 °C to 85 °C)
Moisture Test
240 hours at 96% RH
Shock Test
25 G 11 ms ½ sine wave 3X each direction per axis
Salt Fog Test
48 hours (ASTM B117-03)
Vibration Test
0 Hz to 2000 Hz Random, 5 Grms
Ingress Rating
IP66, IP67
Communications
Item
Specification
Ports
USB 3.1 Gen1 (Type C connector) and Ethernet
RF Radiated Immunity
Applicable regulation: ISO 13766-1:2018
Cable requirements
To use the GX-90 as an EMC-compliant component in a system, the connection cable part for Ethernet must be Ethernet-compliant (twisted pair, AWG, etc.) and include a shielding connected to the main connector.
Features

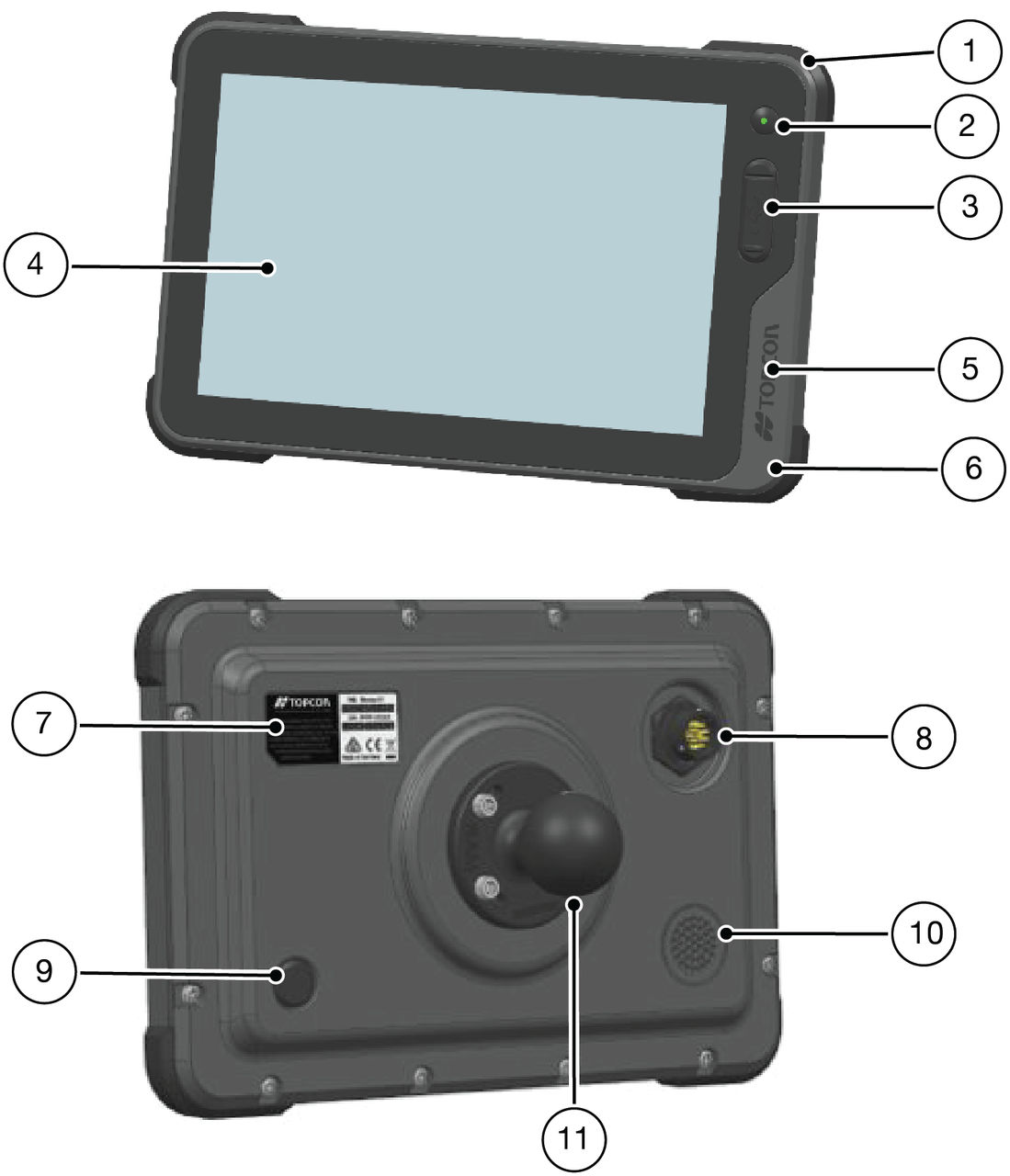

Figure: GX-90 front and back
Corner Bumper
On/Off Button with Backlit Dot
USB C Port with Cover
LCD Multi-Touch Screen
Printed Topcon Logo gloss black
Powder Coat
Serial Label Recess
Connector
Core Vent
Speaker
RAM Ball Mount Type C
Connector pinouts

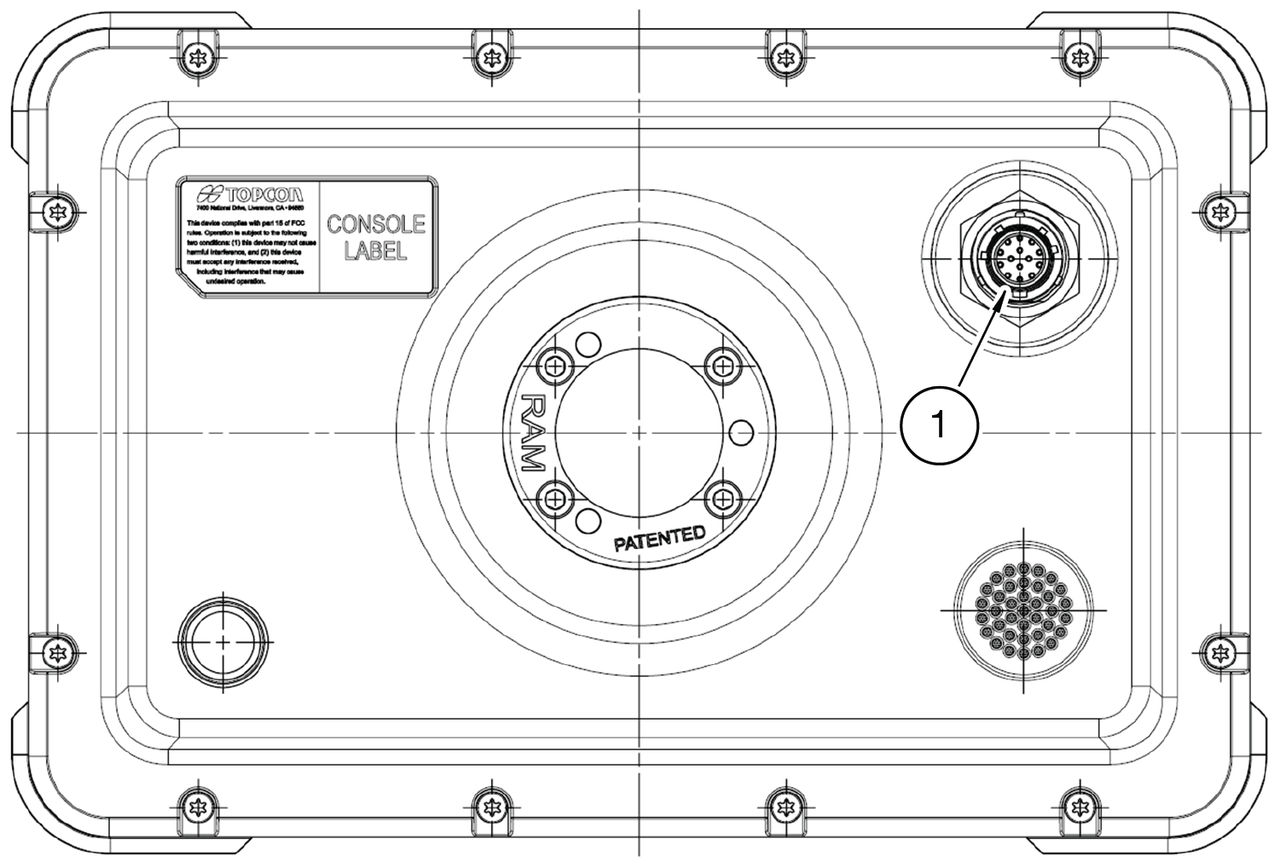

Figure: Connector pinouts
Amphenol Connector

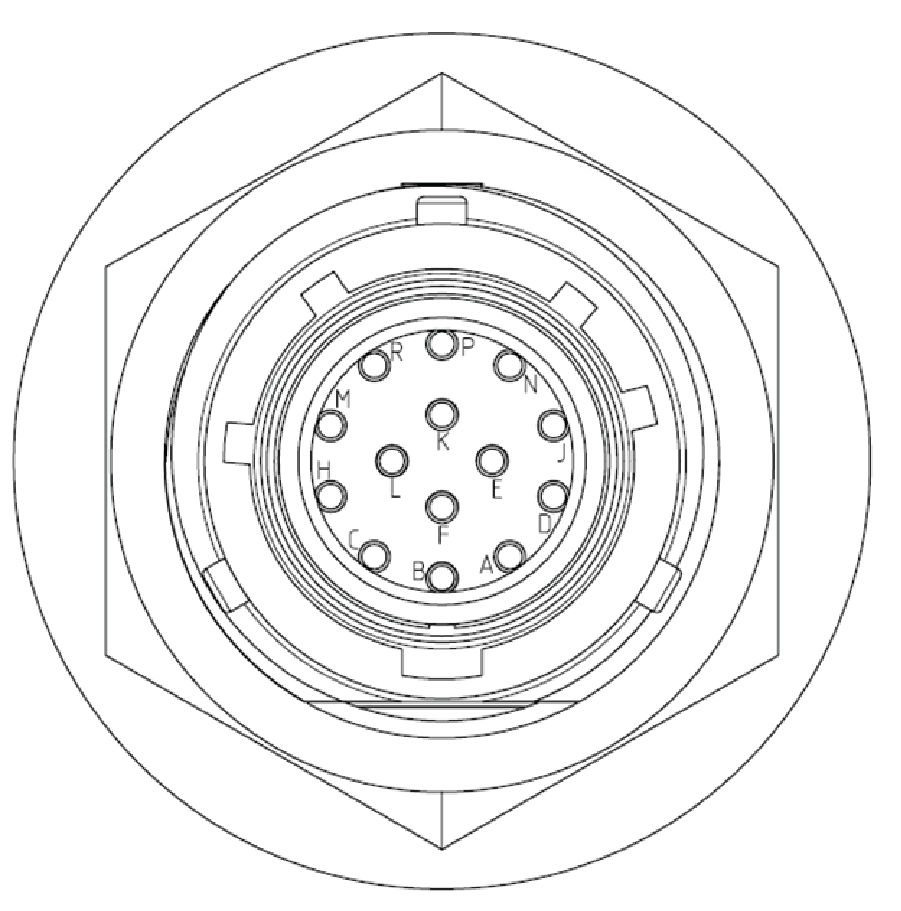

Figure: Amphenol connector
Amphenol connector
Connector Amphenol CMB07C-12-14P
A
Battery_In
B
GND
C
Ignition_In
D
Digital Output
E
Not Used
F
Not Used
H
Audio GND
J
Audio Detection
K
Ethernet TX+
L
Audio Out_L
M
Audio Out_R
N
Ethernet RX+
P
Ethernet TX-
R
Ethernet RX-
Envelope dimensions

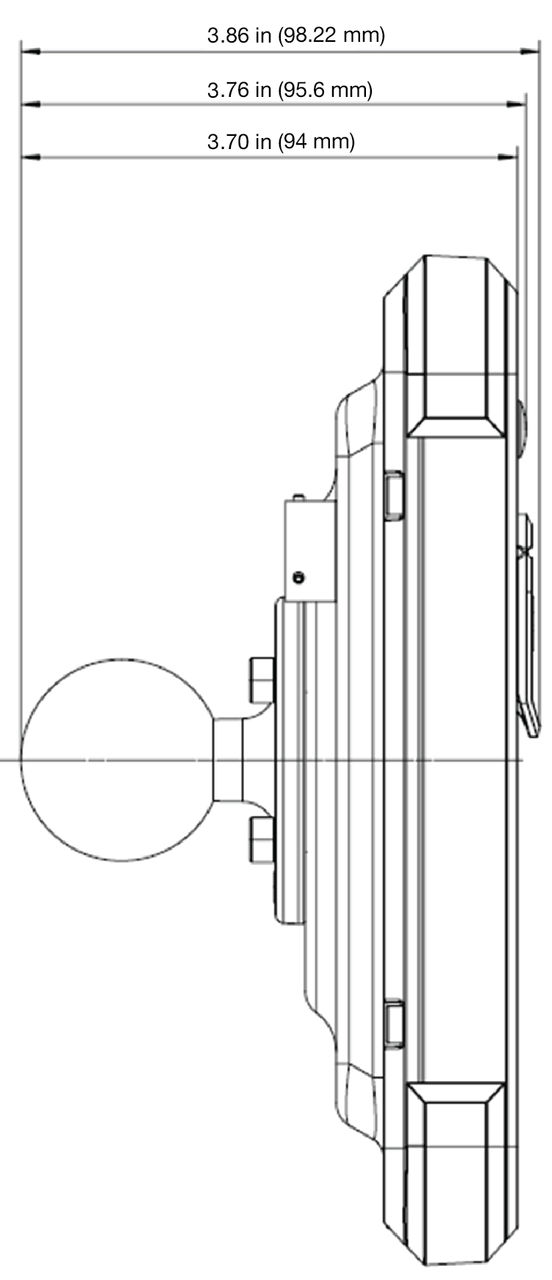

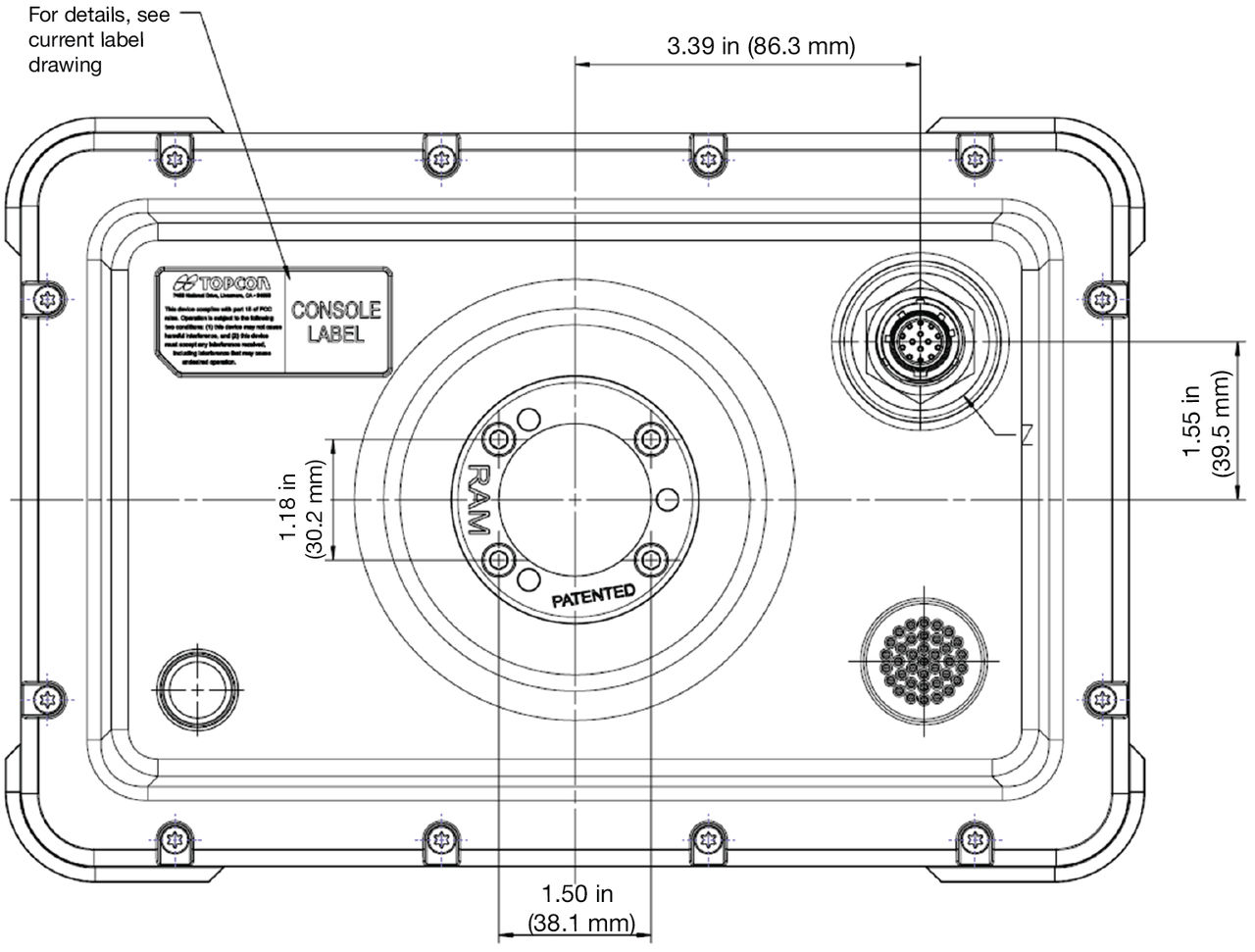

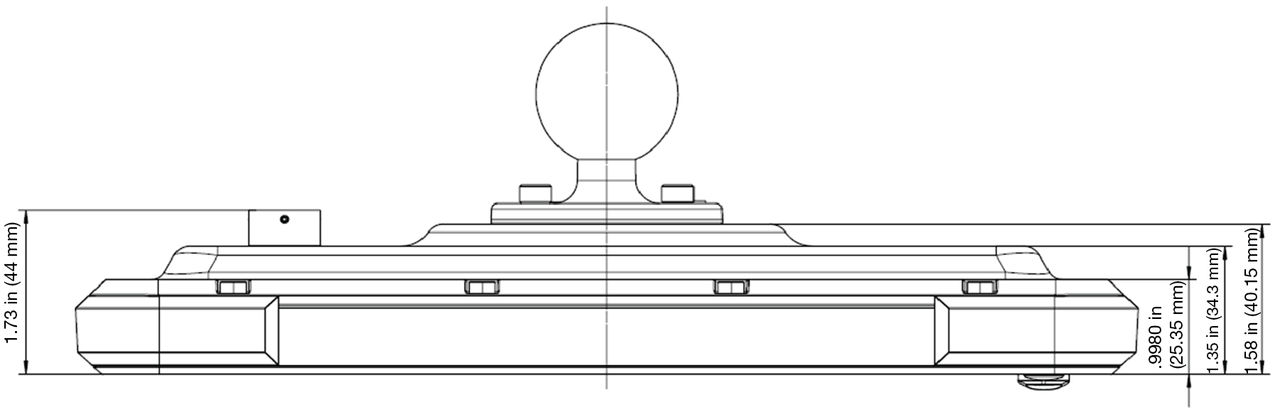

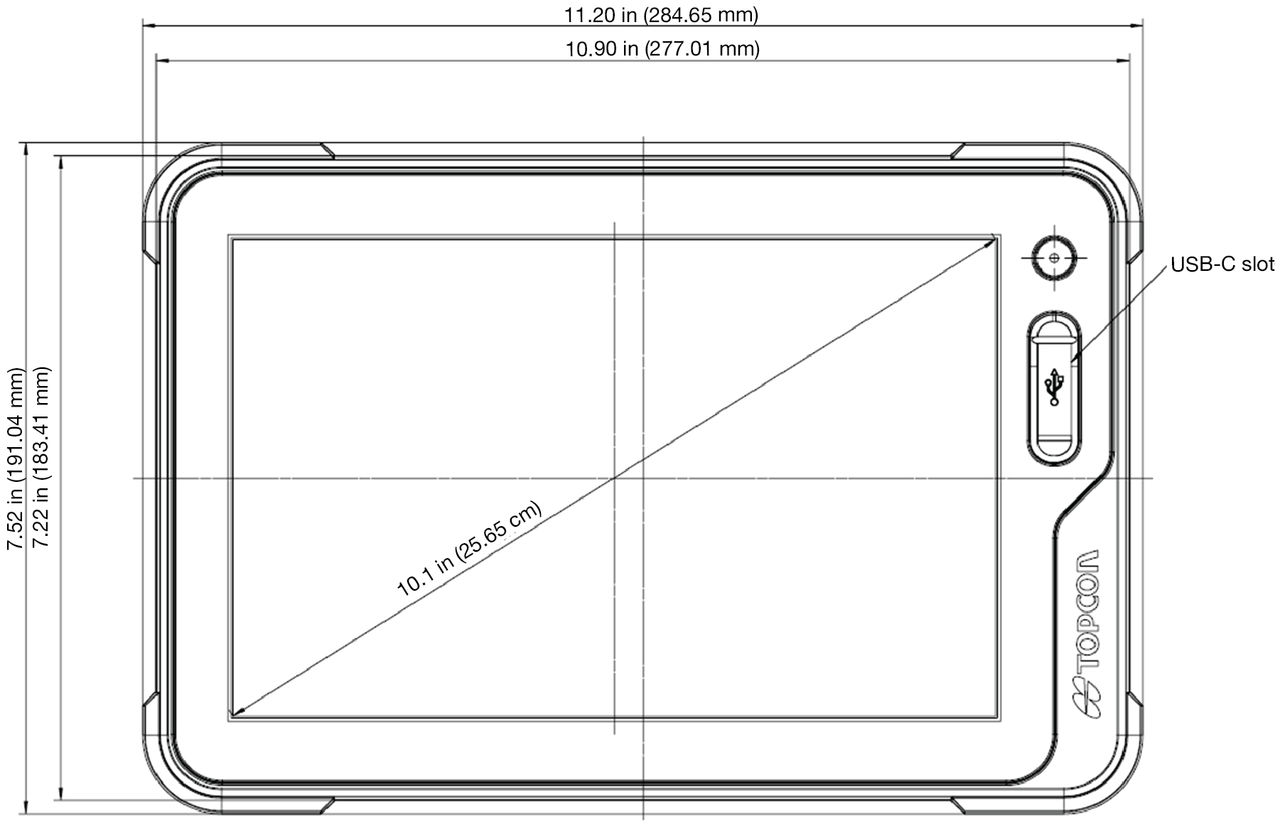

Figure: Top dimensionsFigure: Side dimensionsFigure: Back dimensionsFigure: Front dimensions
