- Identify the GNSS antenna cable with a yellow right angle connector and connect the cable to the receiver.ADDITIONAL INFORMATION:

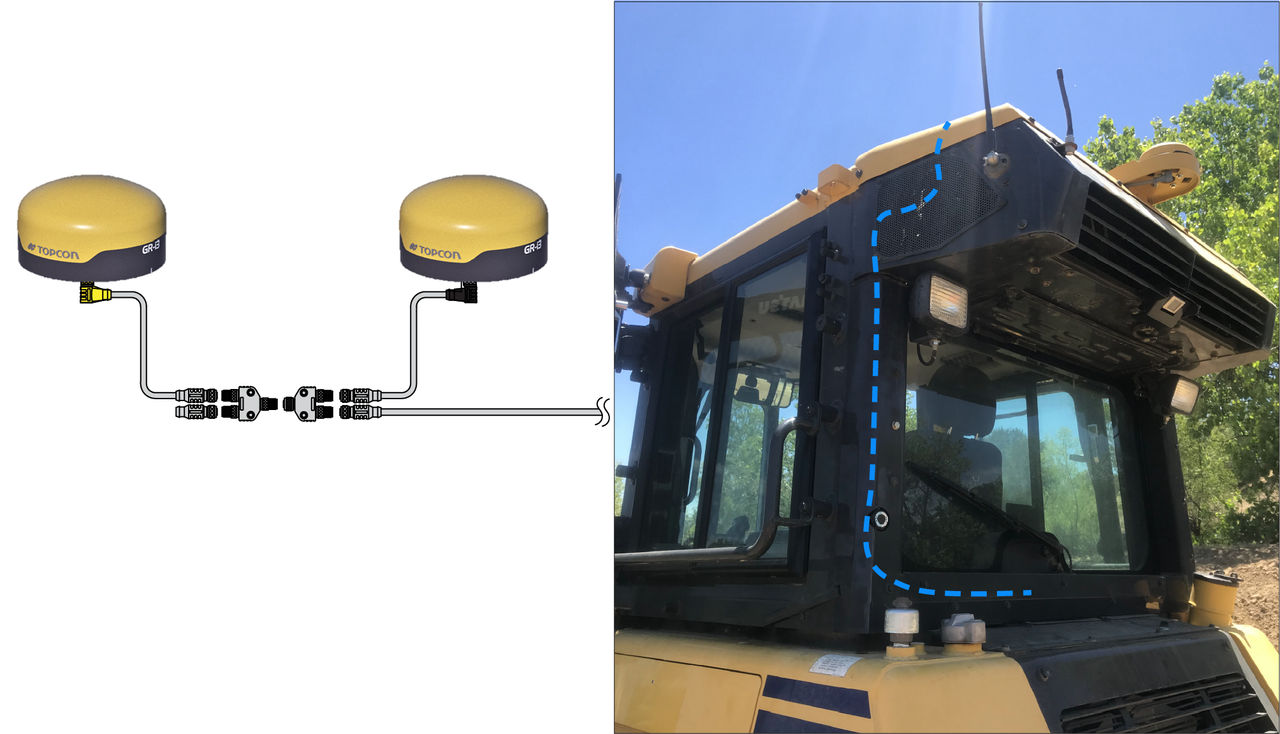

Figure: GNSS cable routing
- Connect the other end of the GNSS cable to a tee connector.
- Connect a terminator to the other port of the tee.
- Connect a second tee to the first tee.
- Use cable ties on cables that connect to the main GNSS receiver.
- Find the GNSS antenna cable with the black right angle connector and connect it to the receiver.
- Connect the other end of the cable to the tee.
- Connect one of the M12 extension cables to the other port on the tee.
- Carefully run the extension cable down through the rear of the machine and into the cab.
