Dual mast installation process

Note:

The images shown for the dual mast installation show a John Deere machine. The installation process is the same for all dozers.

Weld the L-Bar Bracket (P/N 9060-1167) to the bottom left and right side of the back of the blade.
Insert the L-bar (P/N 9090-1429) into each L-Bar bracket, then tighten the bolts.
Attach the LS-B Series sensor or the Sonic Tracker 2+ sensor to the right and left L-Bars.
Connect the coil cable to the sensors.
Use a mast to set the LS-B series sensors above the cab.
ADDITIONAL INFORMATION:

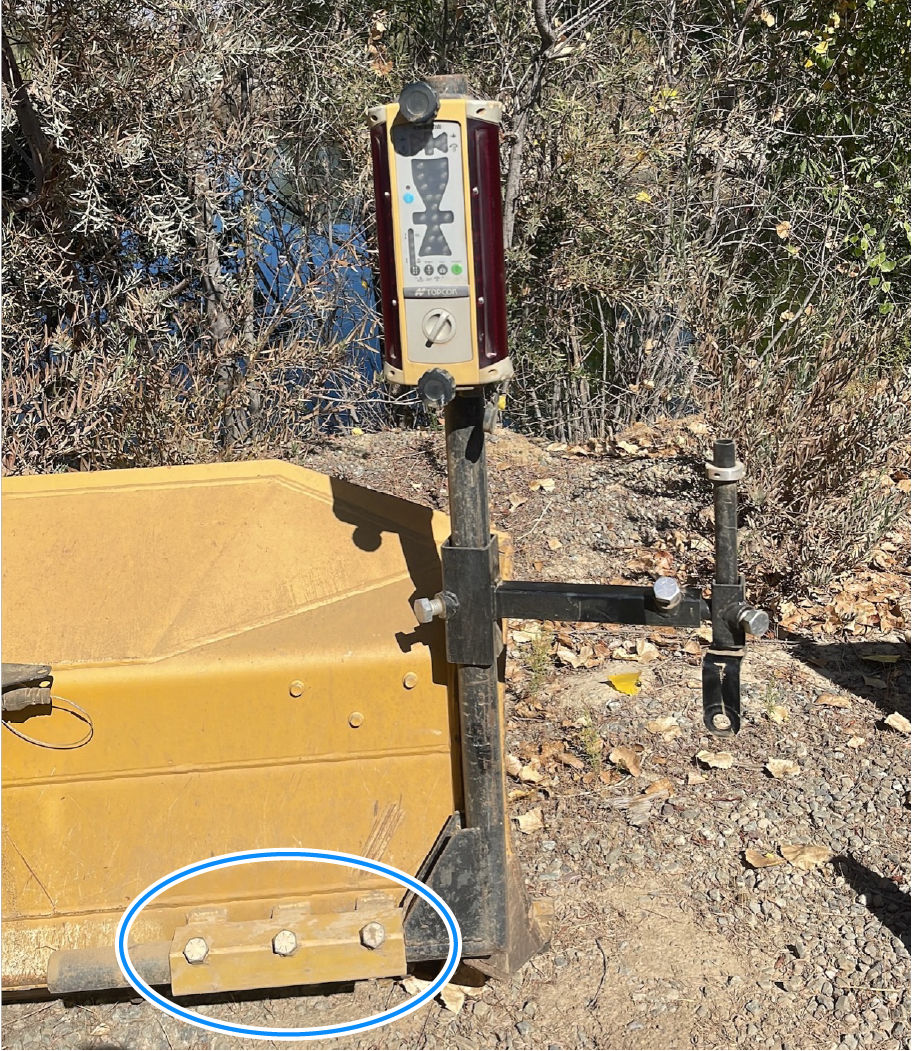

Figure: L-Bar bracket installed on right side of blade

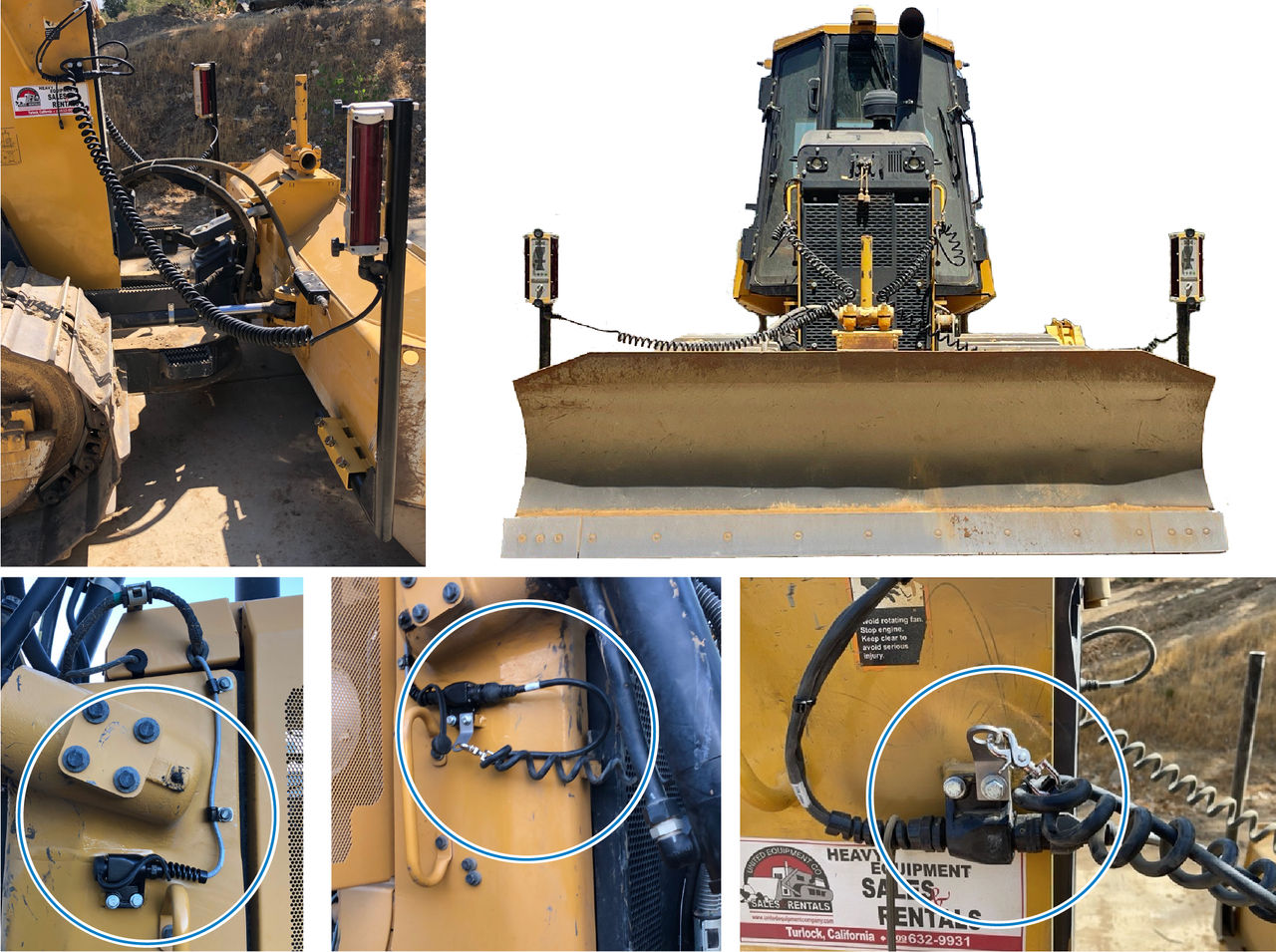

Figure: 2D elevation sensor connections and examples
