Once the Control Manifold and SC024 Controller are mounted, and the CAN lines are routed, perform the following steps:
- Connect the Harness 2-pin and 3-pin Deutsch connectors to the manifold.
- Connect the Harness 12-pin Deutsch connectors to the SC024 Controller.
- Connect the CAN line to the CAN bus.
- Connect the Power Cable.ADDITIONAL INFORMATION:Caution:Use the Topcon supplied fuse or fused power from the machine of the same rating.Caution:The system ground must be connected to the frame side of the ground disconnect switch, not directly to the negative battery terminal.

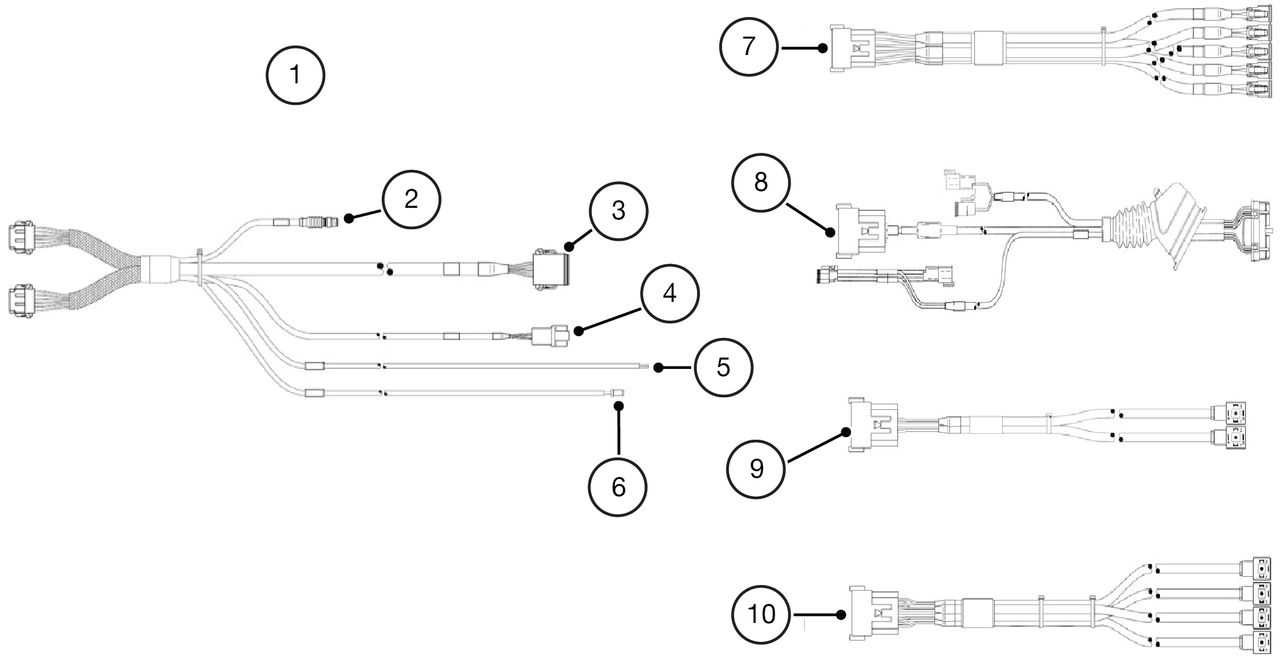

Figure: Universal harness
- Universal SC024 Harness (P/N 1067045-01)
- CANOpen (CAN 1)
- Valve Connector
- Switch Connector
- Ignition Switch Power
- Reverse Alarm
- Pilot
- VSU
- Danfoss
- Proportional Pilot
