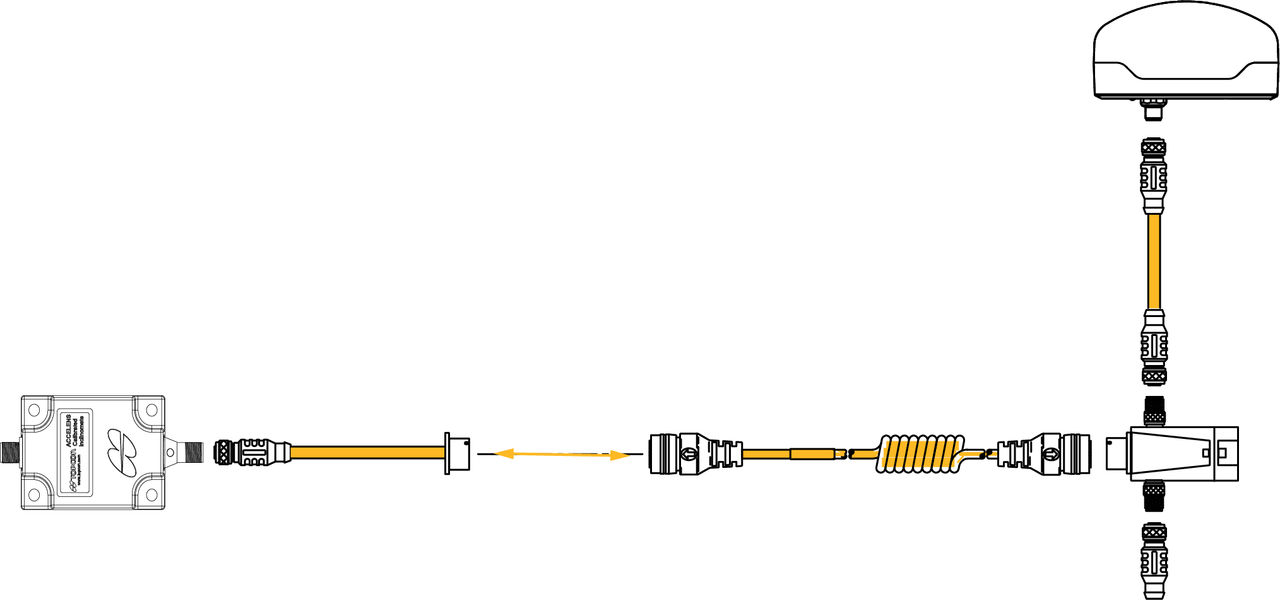

- Connect the Bayonet Adapter to the TS-i4 Blade sensor.
- Connect the Bayonet Adapter to the coil cable.
- Connect the coil cable to the Vibe Pole Tee connector.
- Connect the Vibe Pole Tee connector to the M12 Turck cable.
- Connect the M12 Turck cable to the GR-i3/GR-i3F receiver.
- Connect the terminator to the Vibe Post Tee connector.
- Install the TS-i4 Blade sensor cover after measurement and configuration are complete.ADDITIONAL INFORMATION:

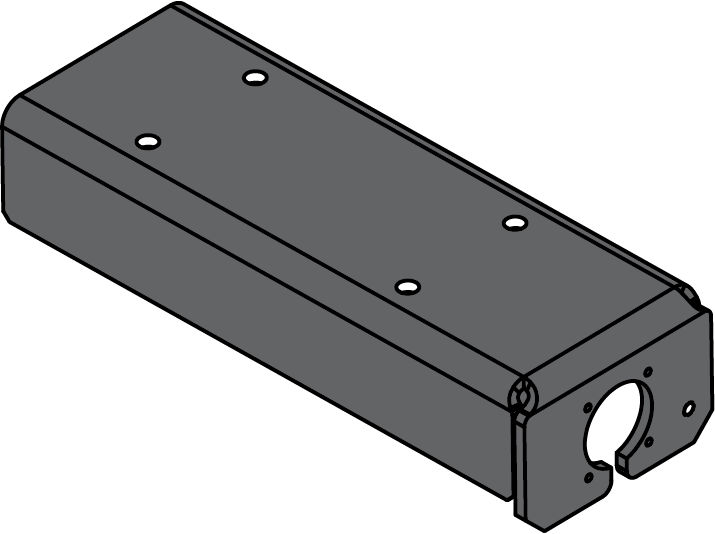

Figure: TS-i4 sensor cover for convert to bayonet
