Diversity antenna installation

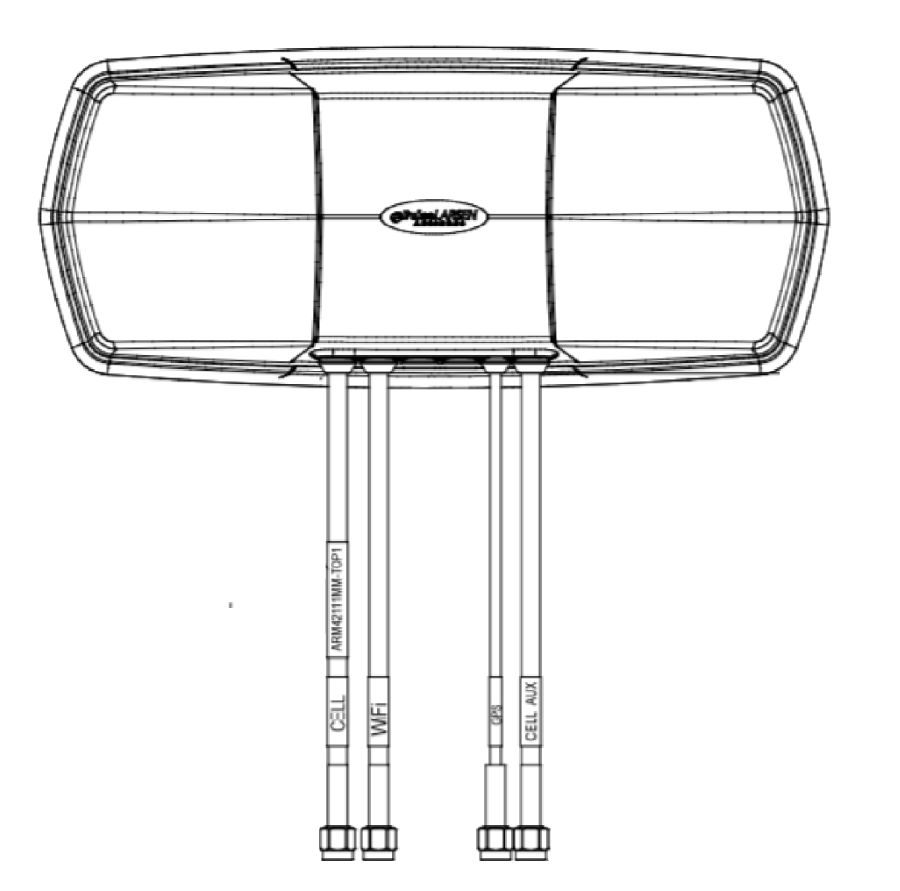

The diversity antenna is equipped with a magnetic base. Each lead is labeled and the connections are unique.

Caution:

Install antennas as far as possible from the GNSS receivers and other antennas. Refer to Location Guidelines for Supplemental Antennas.

Install the diversity antenna in a clear open space on the roof of the cab.
ADDITIONAL INFORMATION:
Run the antenna leads down into the cab and use cable ties if necessary.
