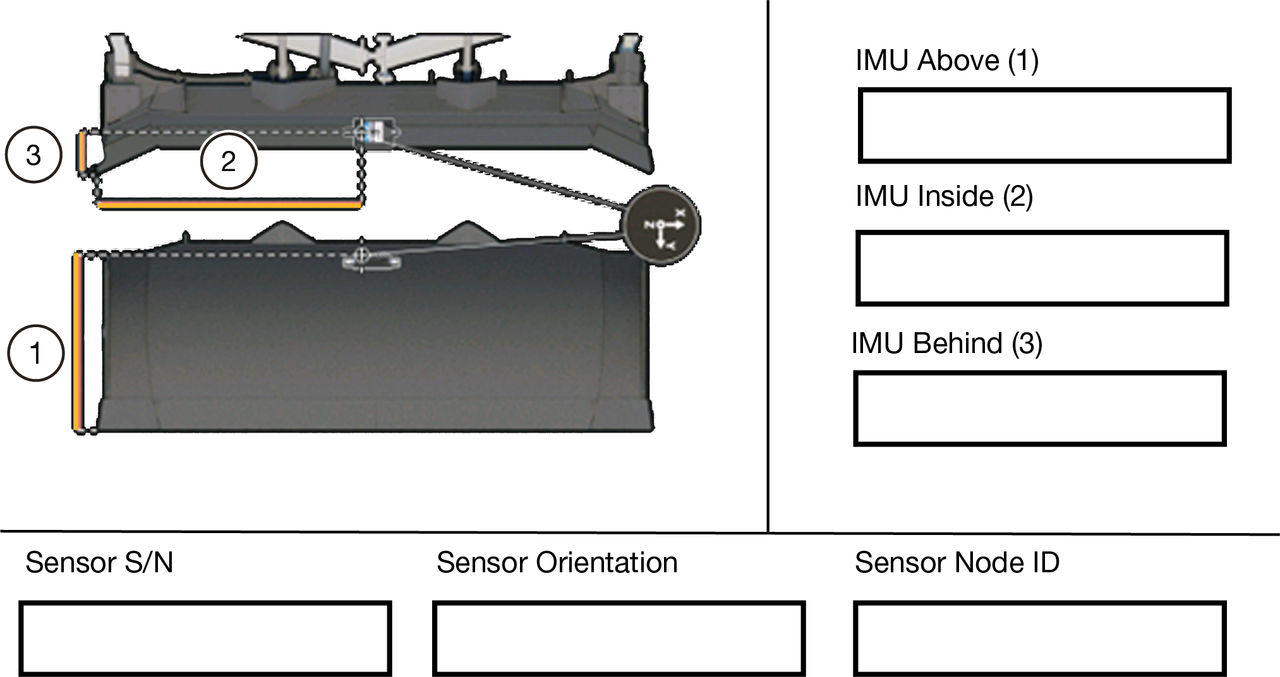

Blade sensor dimensions Pusher

  1. Measure and record the distance for IMU Above(1).
  2. Measure and record the distance for IMU Inside(2).
  3. Measure and record the distance for IMU Behind(3).
  4. Measure and record the sensor serial number, orientation and Node ID.
    ADDITIONAL INFORMATION:
    Figure: Sensor information
    The Sensor ID is the last two digits of the sensor serial number.
Related information
Machine measurements3D-MC Dozer Setup. This lets you enter the recorded measurements in the cab during the MC-Max Dozer setup processes. Put the total station approximately one machine length away from the machine, aligned adjacent to the front, right corner of the dozer blade to see the prism during the necessary machine measurements.
