Center of rotation dimensions Pusher

  1. Measure and record the distance for COR Above (1).
  2. Measure and record the distance for COR Inside (2).
  3. Measure and record the distance for COR Behind (3).
    ADDITIONAL INFORMATION:

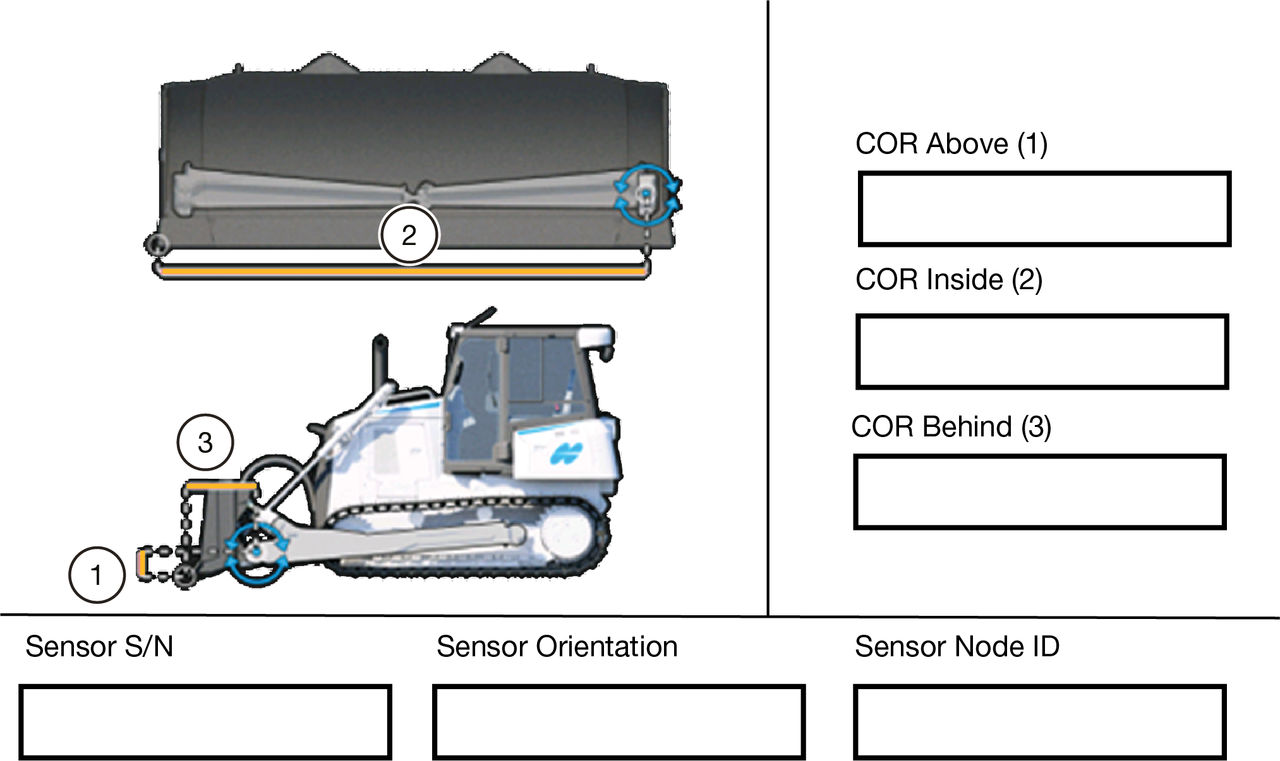

    Figure: Sensor information
    Note: Measure the inside of the COR on the same side the IMU is installed.
Related information
Machine measurements3D-MC Dozer Setup. This lets you enter the recorded measurements in the cab during the MC-Max Dozer setup processes. Put the total station approximately one machine length away from the machine, aligned adjacent to the front, right corner of the dozer blade to see the prism during the necessary machine measurements.
