TS-i4 body sensor measurements

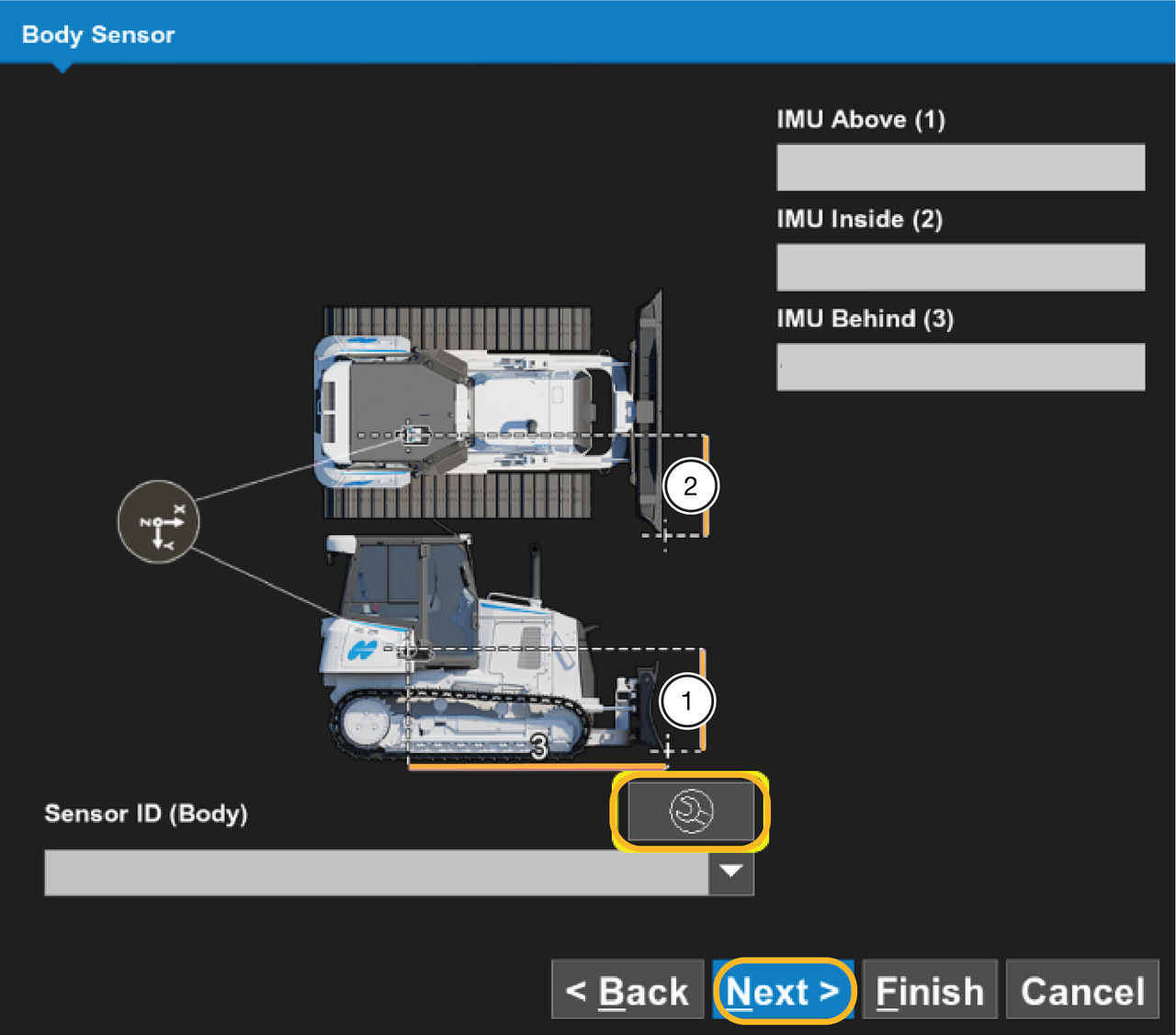

Use the image to guide your measurements.

Enter the measured distance from the cutting edge of the blade to the reference point on the TS-i4 Body sensor in IMU Above (1).
Enter the measured distance from the reference point on the TS-i4 Body sensor to the right side of the blade and enter it in IMU Inside (2).
Enter the measured distance from the reference point on the TS-i4 Body sensor to the cutting edge of the blade in IMU Behind (3).
ADDITIONAL INFORMATION:
Select to configure the TS-i4 Body sensor node.
ADDITIONAL INFORMATION:
You must select the orientation to accurately show the label side and X-arrow direction of the TS-i4 body sensor.
Select Next.
