MC-X programming cable and computer web browser

  1. Connect the MC-X Programming Cable to the computer’s Ethernet port.
  2. Open a web browser.
  3. Type 192.168.0.1 in the address bar to connect to the web interface of the MC-X.
    ADDITIONAL INFORMATION:

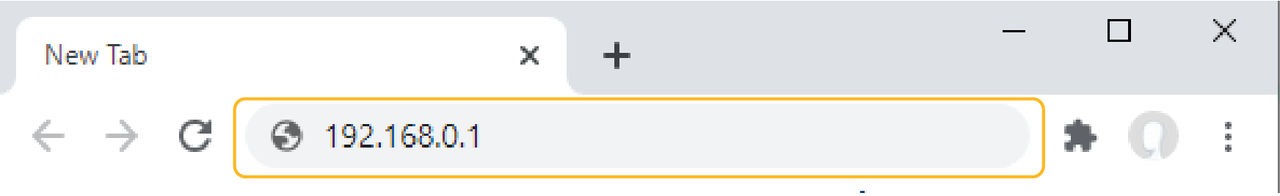

    Figure: MC-X Gateway address
  4. Enter the MC-X Username and Password.
    1. The default username for accessing the MC-X is admin.
    2. The default password is mcx followed by the last five digits of the MC-X serial number (e.g. “mcx12345”).
    ADDITIONAL INFORMATION:

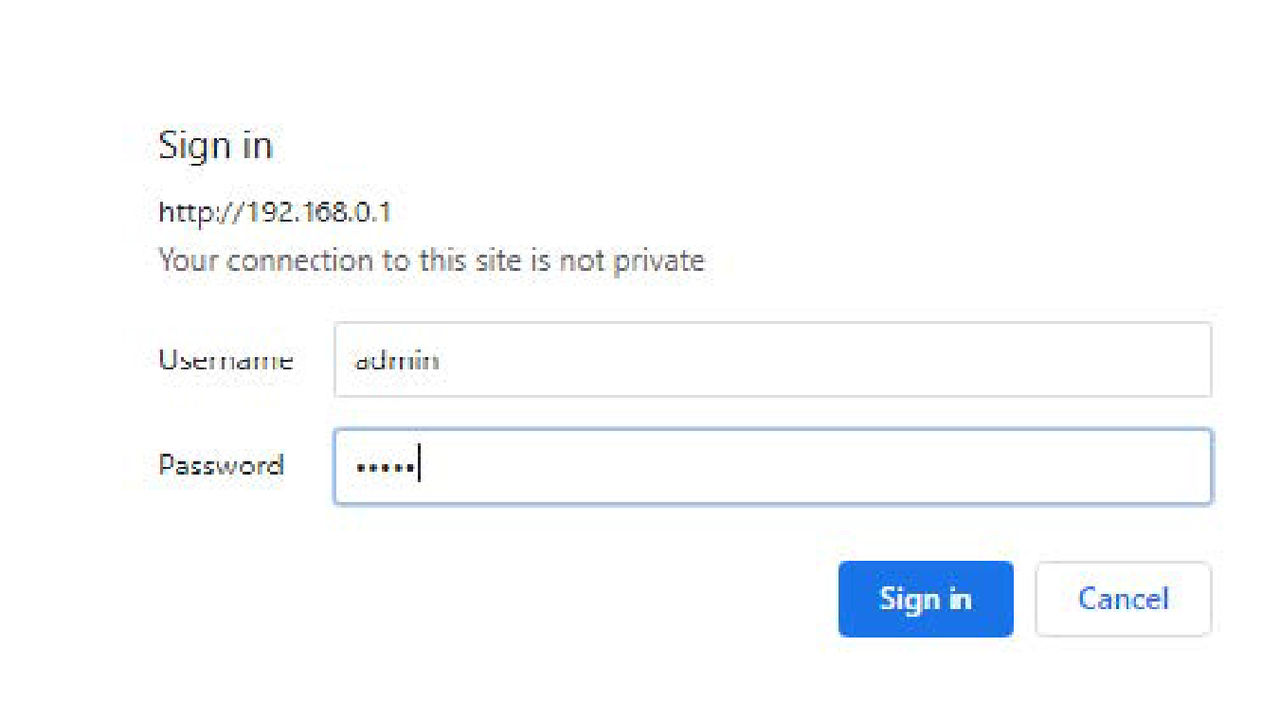

    Figure: MC-X username and password
