Factory reset for GR-i3 with TRU

Use the Topcon Receiver Utility (TRU) to reset the GNSS receiver parameters to the default values and erase the Non-Volatile Random Access Memory (NVRAM). NVRAM holds necessary data for satellite tracking. A factory reset does not delete any files from the receiver and does not reset modem parameters.

Complete a factory reset after you save a new GNSS firmware file, or to correct communication or tracking problems.
ADDITIONAL INFORMATION:
It is necessary to give the receiver up to 15 minutes to collect new ephemerides and almanacs after a factory reset.
Open the TRU from the desktop of the GX-Series display.
Select DeviceApplication ModeReceiver Managing.
ADDITIONAL INFORMATION:

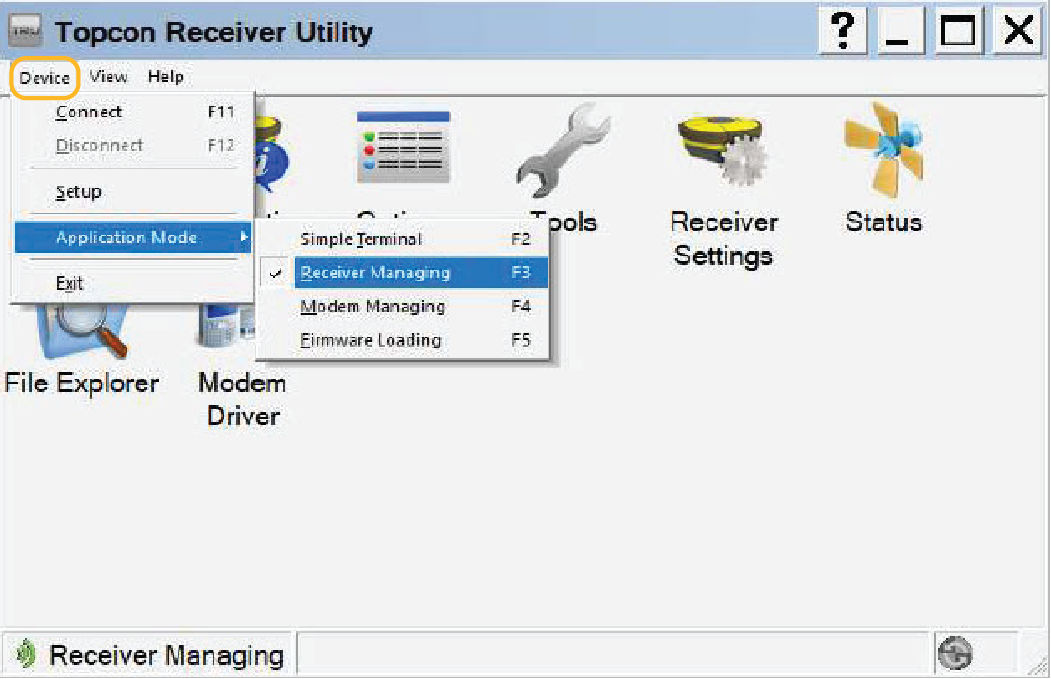

Figure: TRU receiver managing
Select DeviceConnect.
ADDITIONAL INFORMATION:

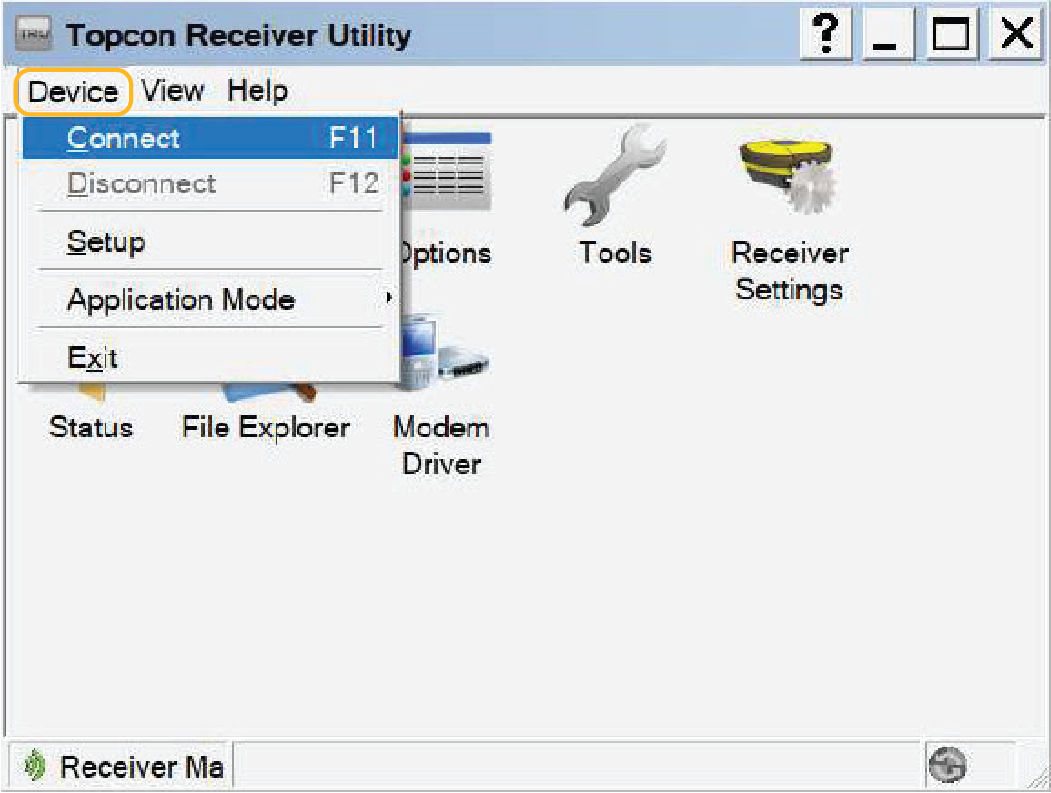

Figure: TRU connect
Select ConnectNetworkt.
Select Device Name to select the device name of the connected GNSS receiver board.
If a Device Name was not configured, complete these steps:
1. Select .
2. Click and hold the white area of the screen.
3. Select Add.
  ADDITIONAL INFORMATION:
  The Network Connection screen opens.
4. Enter a name to identify the Main GNSS board.
5. Enter the network parameters for the Main GNSS board:
  ADDITIONAL INFORMATION:
  - IP Address or Host Name: 192.168.01
  - TCP Port: 8012
  - TCP Password: TPS
Select OK.
Repeat steps 7 and 8 for the Auxiliary GNSS board.
ADDITIONAL INFORMATION:
The TCP Port for the Auxiliary GNSS board is 8013.

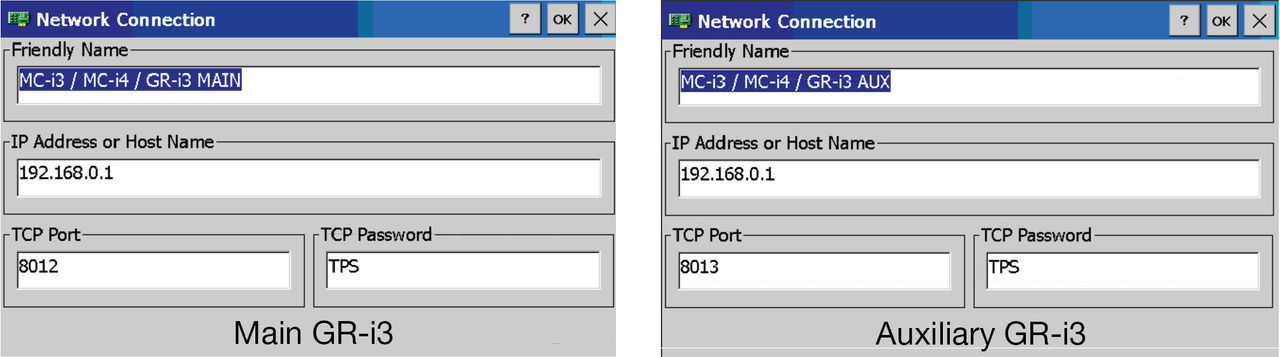

Figure: TCP port names
Select ConnectTools (icon)Factory ResetOK.
After both GNSS boards have been reset, close TRU.
Open the Machine Control Gateway.
Select Reboot.
