- Install the necessary firmware onto the MC-X Controller, then verify the CAN communication.
- Make sure that all sensors and GR-i3s are connected.
- Open the MC-X Machine Control Gateway.
- Select from the menu on the left side of the screen.ADDITIONAL INFORMATION:

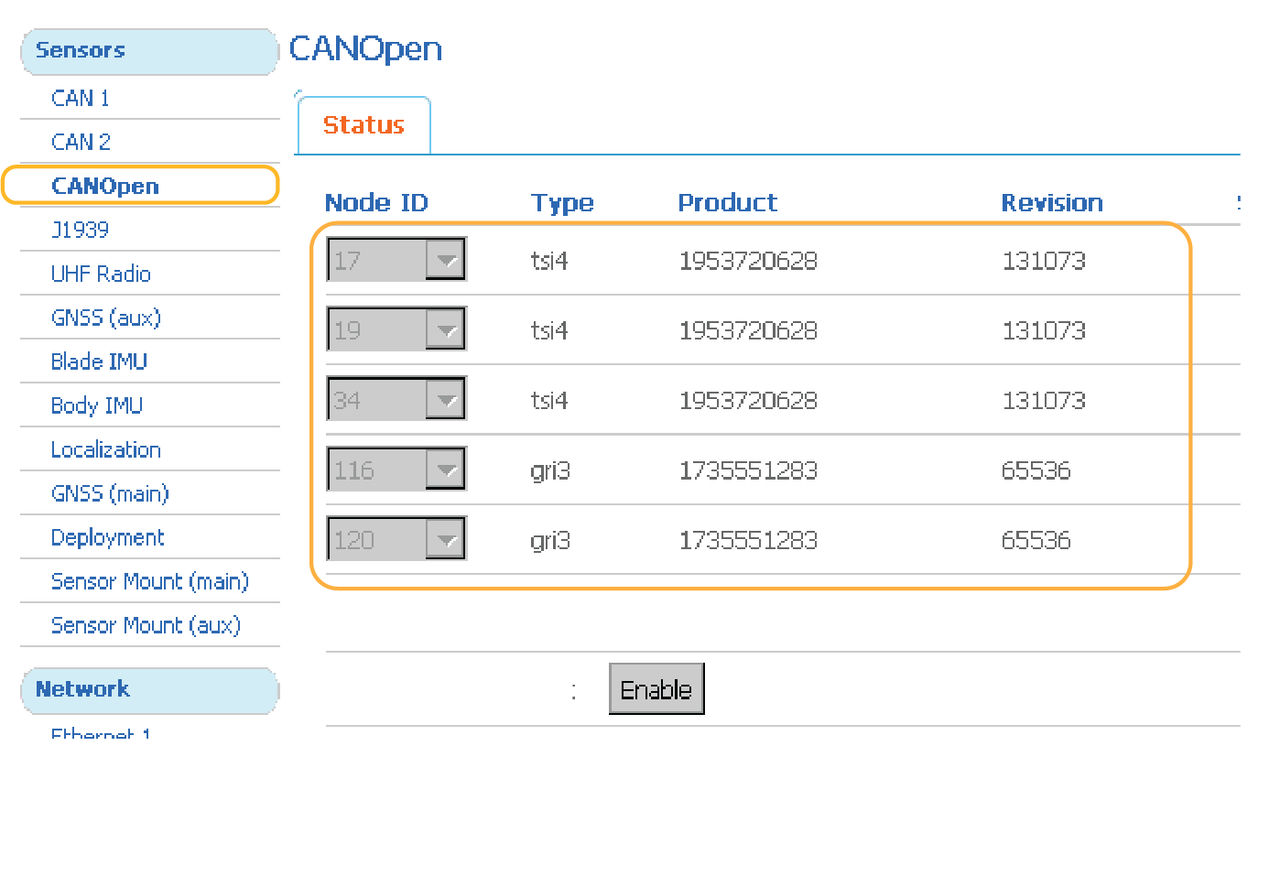

All communicating devices will populate in the CANopen Status screen. - Make a machine file active with the correct sensor designations, then select sensors under the Sensors menu.ADDITIONAL INFORMATION:
