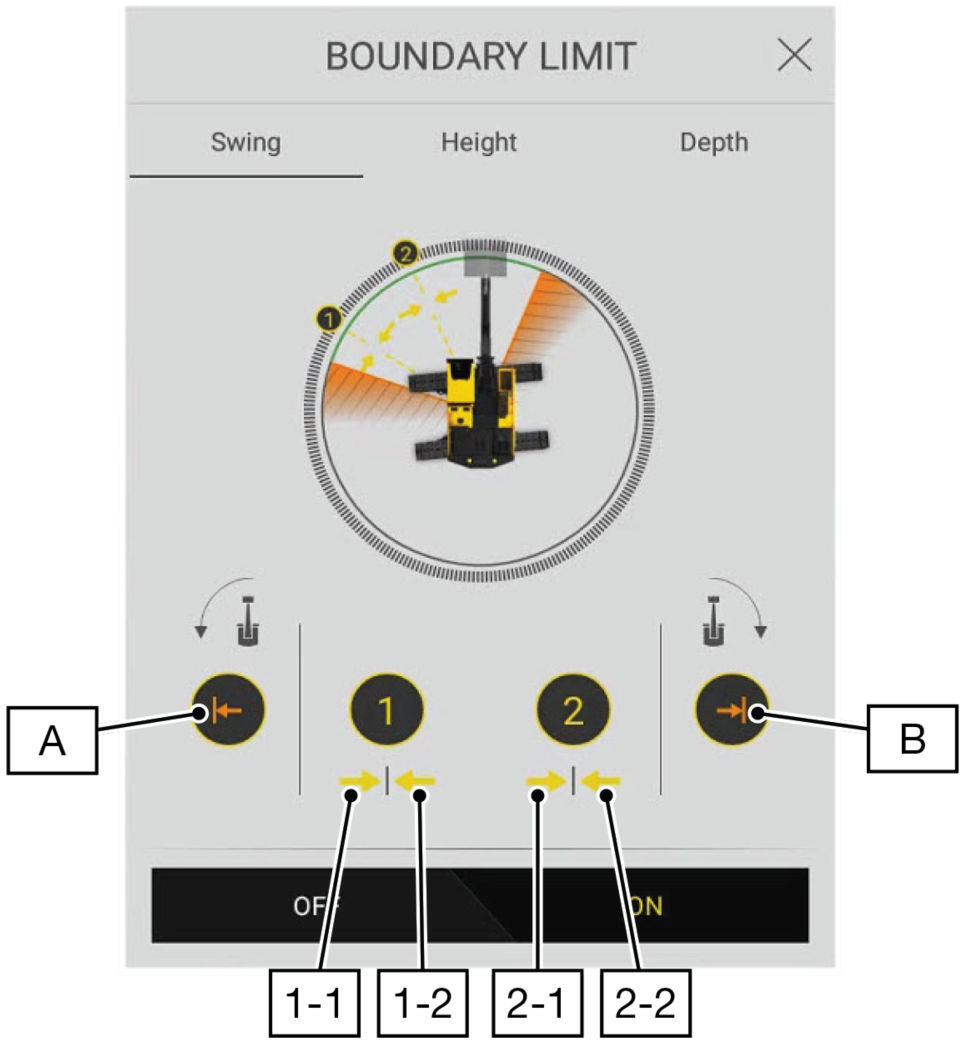

Refer to the diagram of the boundary swing setting controls.
- Set Soft Stop A:
- Swing the excavator in the applicable direction and stop the machine.
- Select Soft Stop (A).
- Tap the arrows to set the right soft stop of the swing control (1-1) and/or the left soft stop of the swing control (1-2).
- Set Soft Stop B:
- Swing the excavator in the applicable direction and stop the excavator.
- Select Soft Stop (B).
- Tap the arrows to set the right soft stop of the swing control (2-1) and/or the left soft stop of the swing control (2-2).
