The 2D/3D Elevation Type and Status indicator shows LPS connection status, operational mode, and various conditions and initialization states.
The 2D/3D Elevation Type and Status indicator shows the LPS connection status and current mode of operation.
| Indicator Condition | Description |
|---|---|

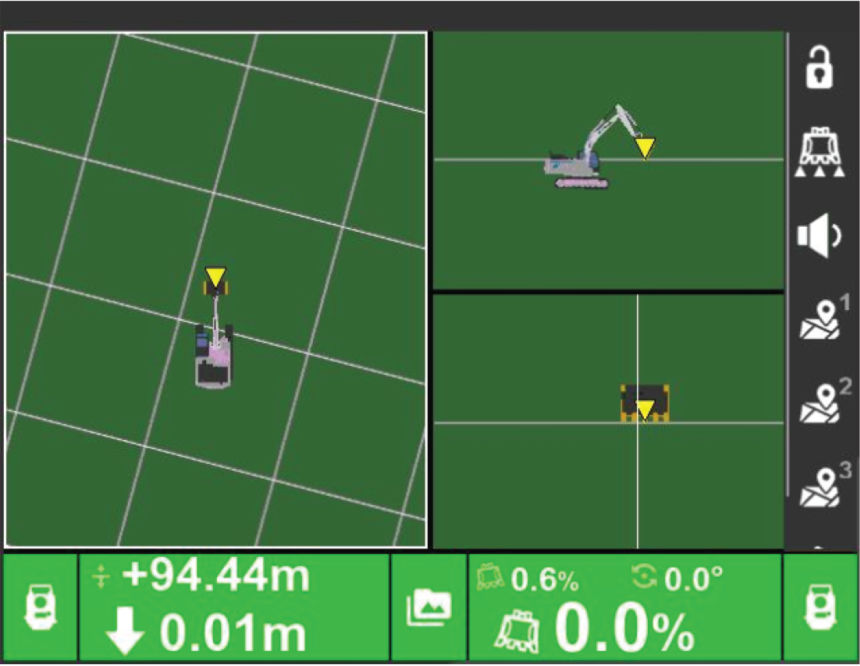

 | LPS connected and tracking |
 | LPS Total Station is in one of these conditions:
|
 | LPS not connected |

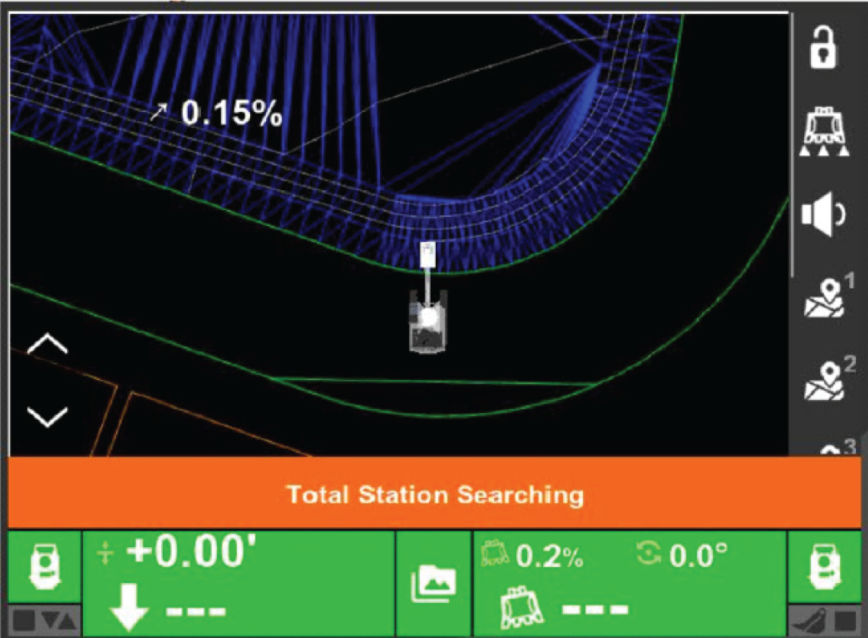

An orange status message identifies the total station in these conditions:
- Connected
- Searching
- Overtilt warning
- Battery low
- Distance measurement warning
- Maximum distance warning
After initialization, the Elevation Control button becomes green.
