Shaft speed alarm configuration

Select thresholds from the Alarms menu to configure low-speed alarms for Shaft1 and Shaft2. This makes sure that shaft speed calibration factors are correct to enable settings.

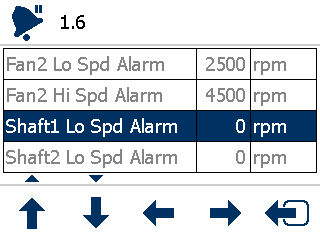

Select Alarms menuShaft1 Lo Spd Alarm.
ADDITIONAL INFORMATION:
If necessary, select Shaft2 Lo Spd Alarm.
Use the left/right arrows to set an alarm threshold.
ADDITIONAL INFORMATION:
Note:
If a shaft speed calibration factor (PPR) is set to zero, the corresponding alarm setting is not available.
