Select up to 20 target bouts with symmetrical or asymmetrical rhythms for specific drill/sprayer combinations. You can adjust them from the Operator menu, with visual and auditory bout indicators.
You can select a target bout number up to 20, with symmetrical, asymmetrical-left, or asymmetrical-right rhythm selectable. You can select these special asymmetrical rhythms for these drill/sprayer width combinations:
- 10-pass (AS 10) – 4 m/10 m, 6 m/15 m, 8 m/20 m drill/sprayer combinations
- 14-pass (AS 14) - 6 m/21 m drill/sprayer combination
- 18-pass (AS 18) – 4 m/18 m, 6 m/27 m drill/sprayer combinations
You can select the tramline rhythm from the Operator menu.
Note:
The display makes one sound at the start of the tramline bout and continues to flash for the duration of the bout.

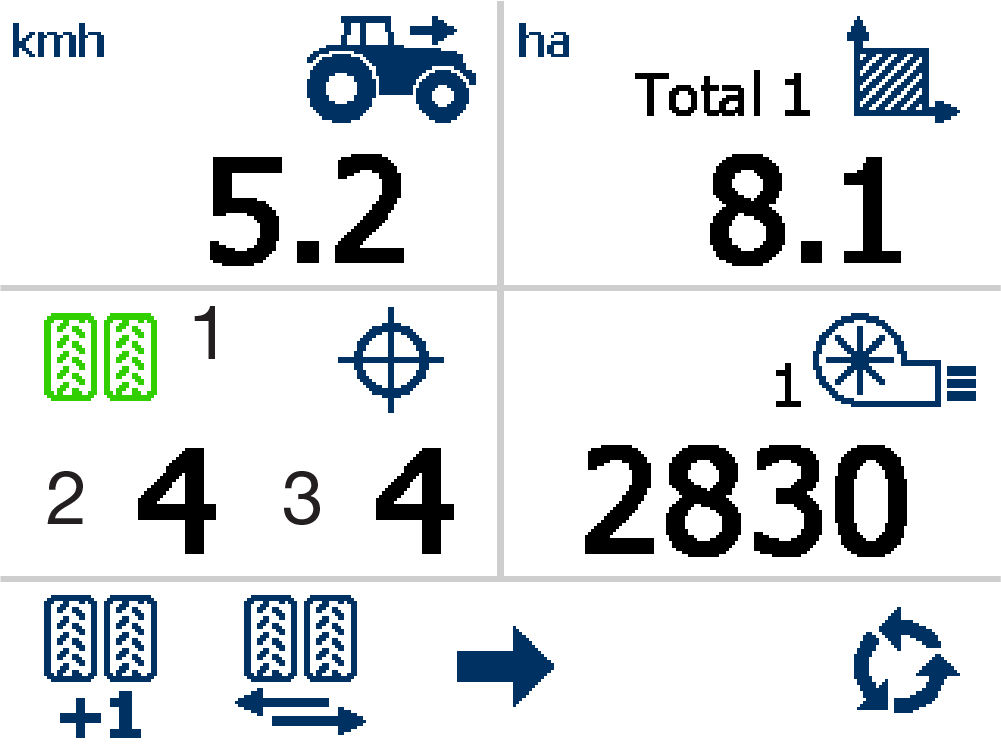

- Tramline bout indicator
- Current bout number
- Target bout number
