Obey safety precautions and complete the step-by-step instructions to charge the battery pack. Connect external AC power to the USB-C port and make sure that all connections are correct. Monitor the charge status on the LED indicators.
Caution: Make sure that no moisture is on the USB port of the receiver before a charge process starts.
Caution: You must use a grounded outlet or grounded surge protector to charge the battery pack.
To charge the internal battery pack with external AC power:- Connect the supplied USB-C cable to the USB-C connector.
- Connect the USB-C cable to the power supply.
- Connect the power cable to the connector on the power supply.
- Connect the power cable to an available outlet for approximately two hours to fully charge the battery pack.ADDITIONAL INFORMATION:

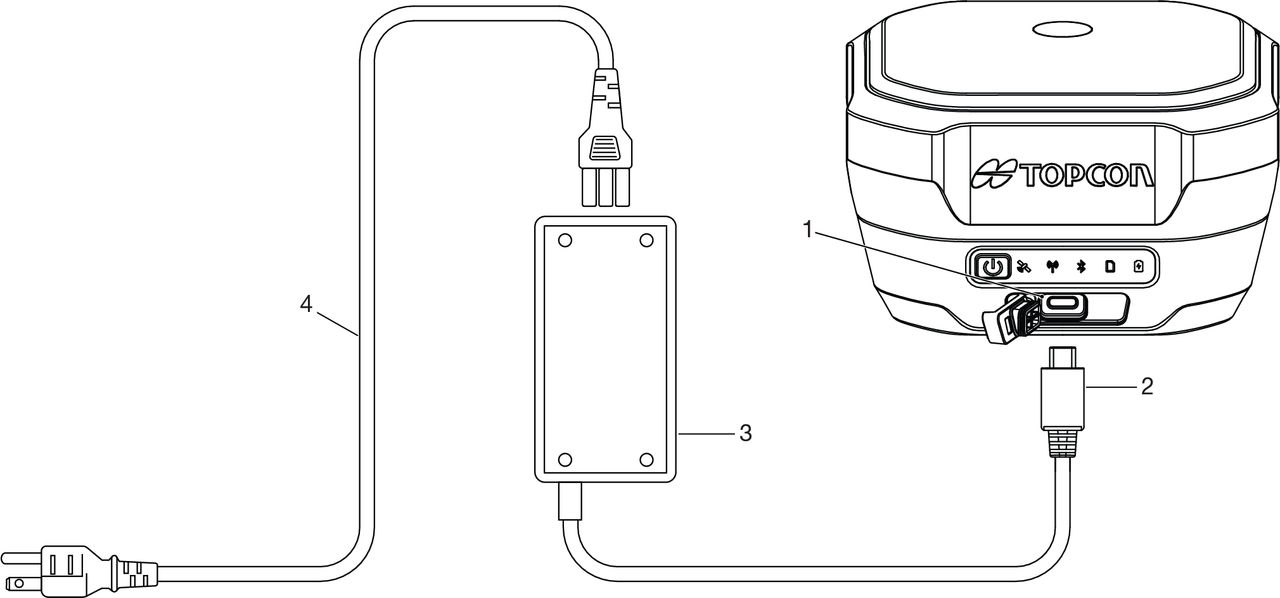

Figure: AC power connection
- USB-C connector
- USB-C cable
- Power supply
- Power cable
The Power button/LED on the HiPer XR GNSS receiver shows when external power is applied. The Battery capacity LED flashes, to show that the battery pack charge process is in operation. The color of the LED shows the charge level.
