The Topcon integrated dynamic TILT compensation technology lets you get the correct pole tip position independently of the pole inclination.
Dynamic TILT compensation operates immediately. Dynamic TILT compensation with the Hybrid Inertial Measurement Unit (HIMU) sensor makes setup easy without calibration procedures. It does not use magnetometer data and magnetic disruptions have no effect. Measurements near metal constructions can be made without decreased performance.
Notice:
The TILT specification is applicable only to a 6.6 ft. ( 2 m) solid pole. TILT compensation is less for longer poles.
Notice:
The TILT specification is applicable to a pole that is straight and does not bend. A pole that bends adds compensation error.

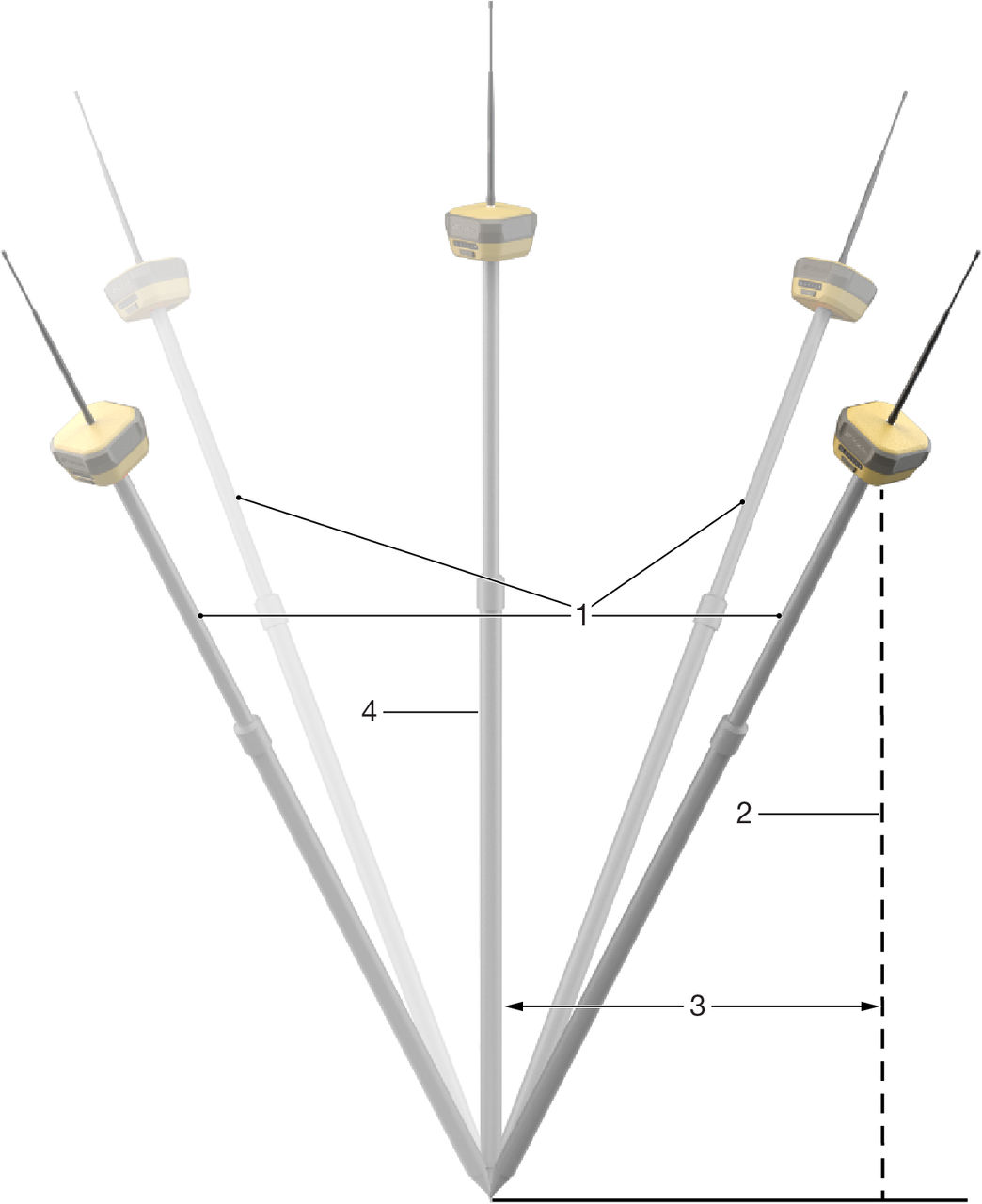

- TILT pole inclination
- False projection of the phase center
- Offset dN/dE
- True projection of the phase center
