It is necessary for SharpGrade grader blades to have a rotation calibration for the lift cylinders, which are in a ball-and-socket configuration. The SharpGrade cylinder is not constrained in rotation along the axis of the two joints. This other calibration lets the encoder capture this difference in the reading.
- From the Calibration (4) screen, select Next.

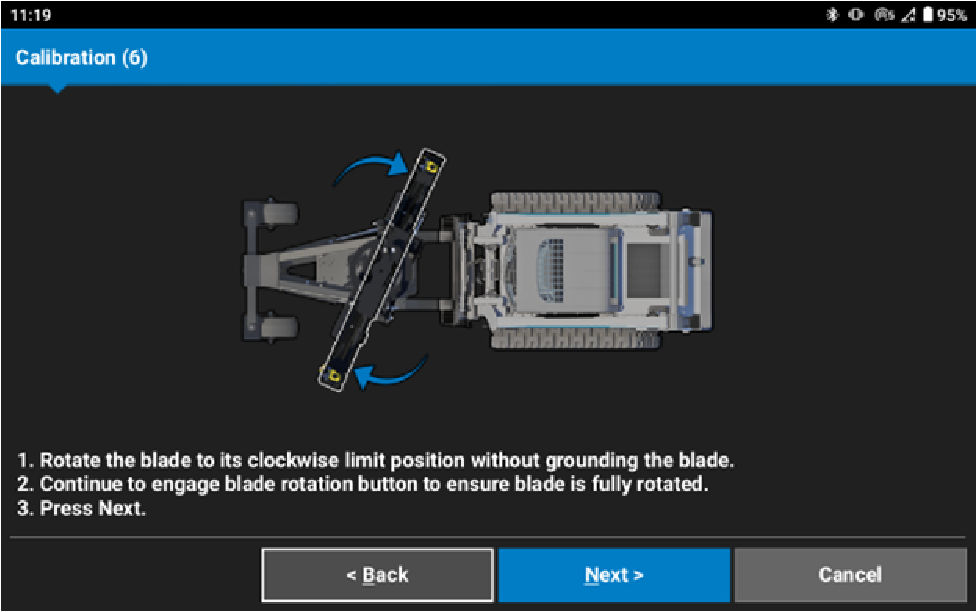

- Turn the blade clockwise to its fullest extent. Continue to engage blade rotation to make sure that the blade is fully turned.ADDITIONAL INFORMATION:
- Select Next.

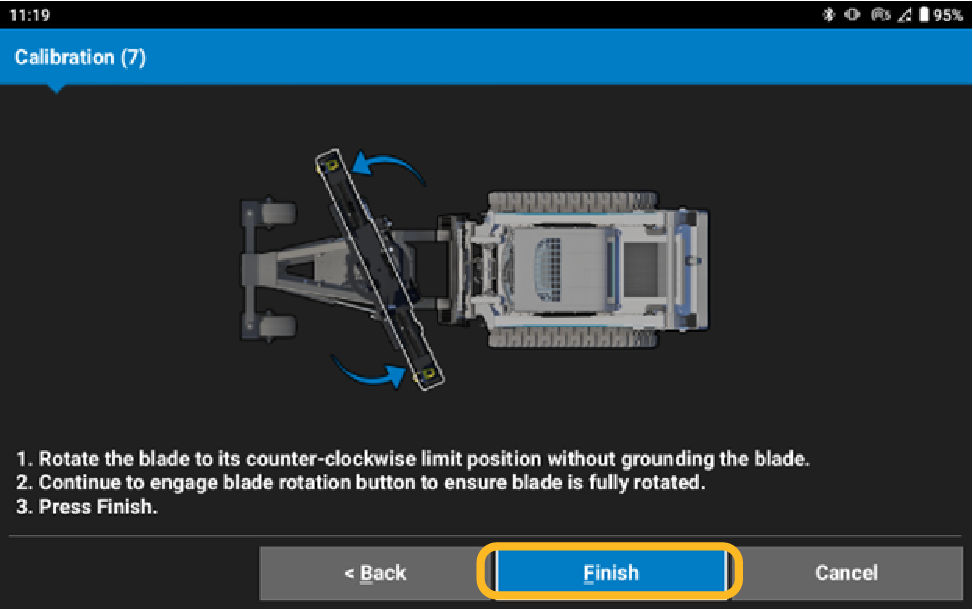

- Turn the blade counterclockwise to its fullest extent. Continue to engage blade rotation to make sure that the blade is fully turned.ADDITIONAL INFORMATION:
- Select Finish.
