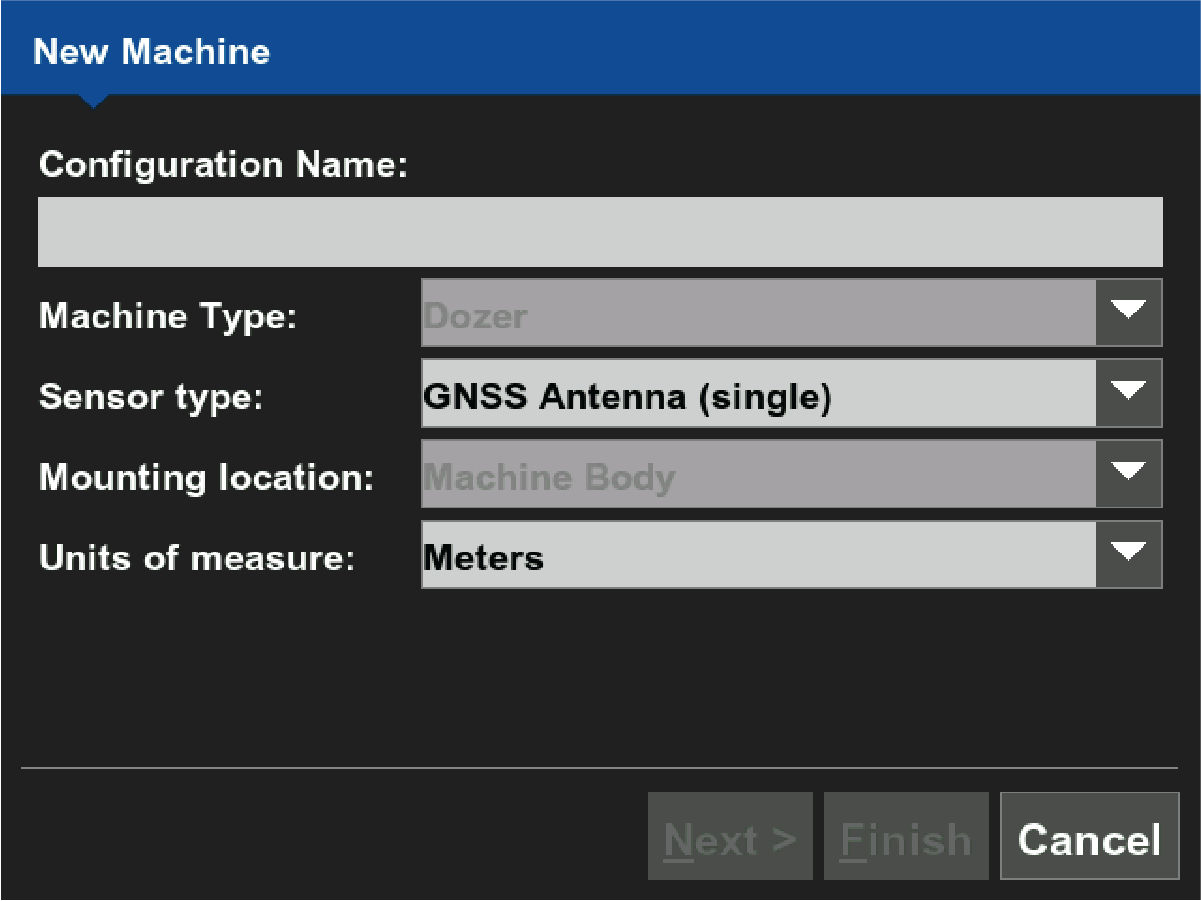

- Select the applicableMachine Type.
- Select GNSS Antenna (single) for Sensor Type.ADDITIONAL INFORMATION:

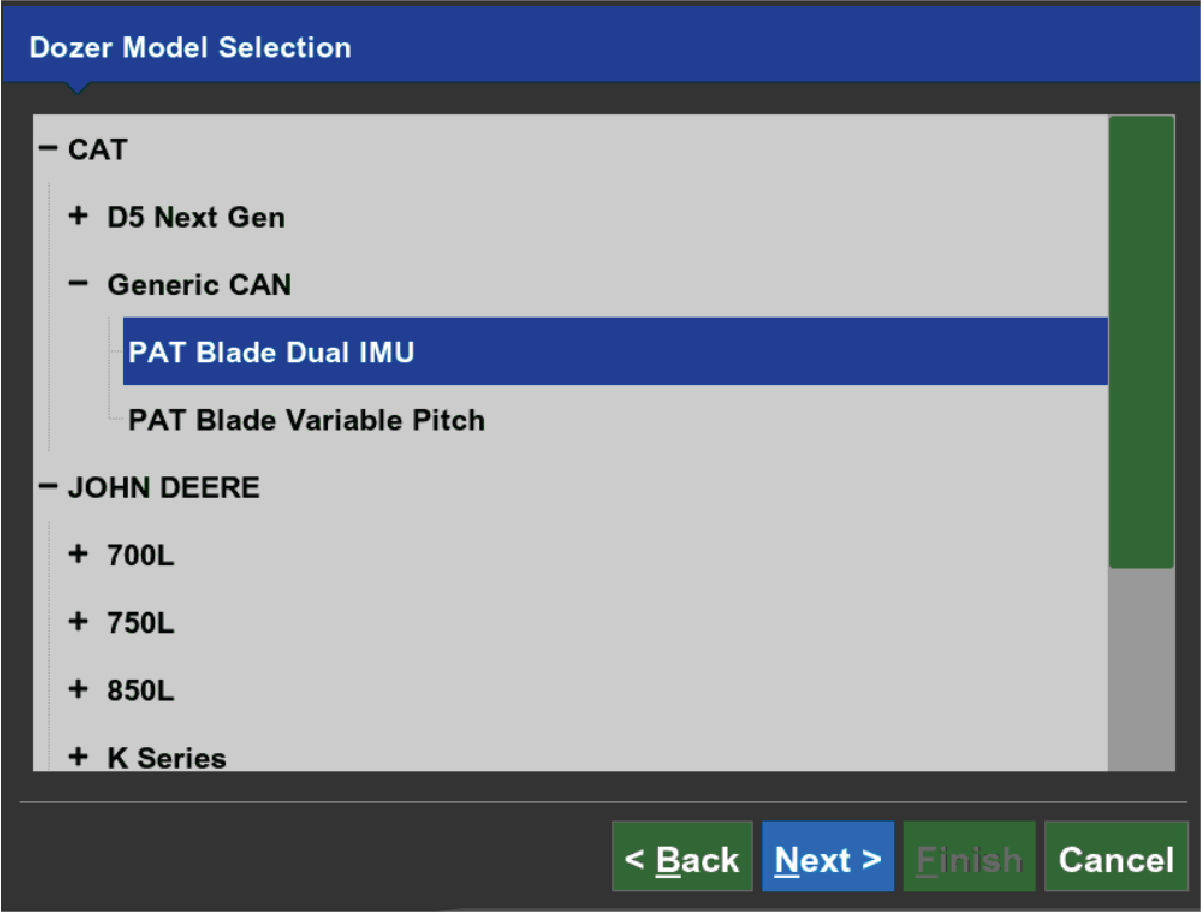

- Select the applicable dozer model on the Dozer Model Selection screen.

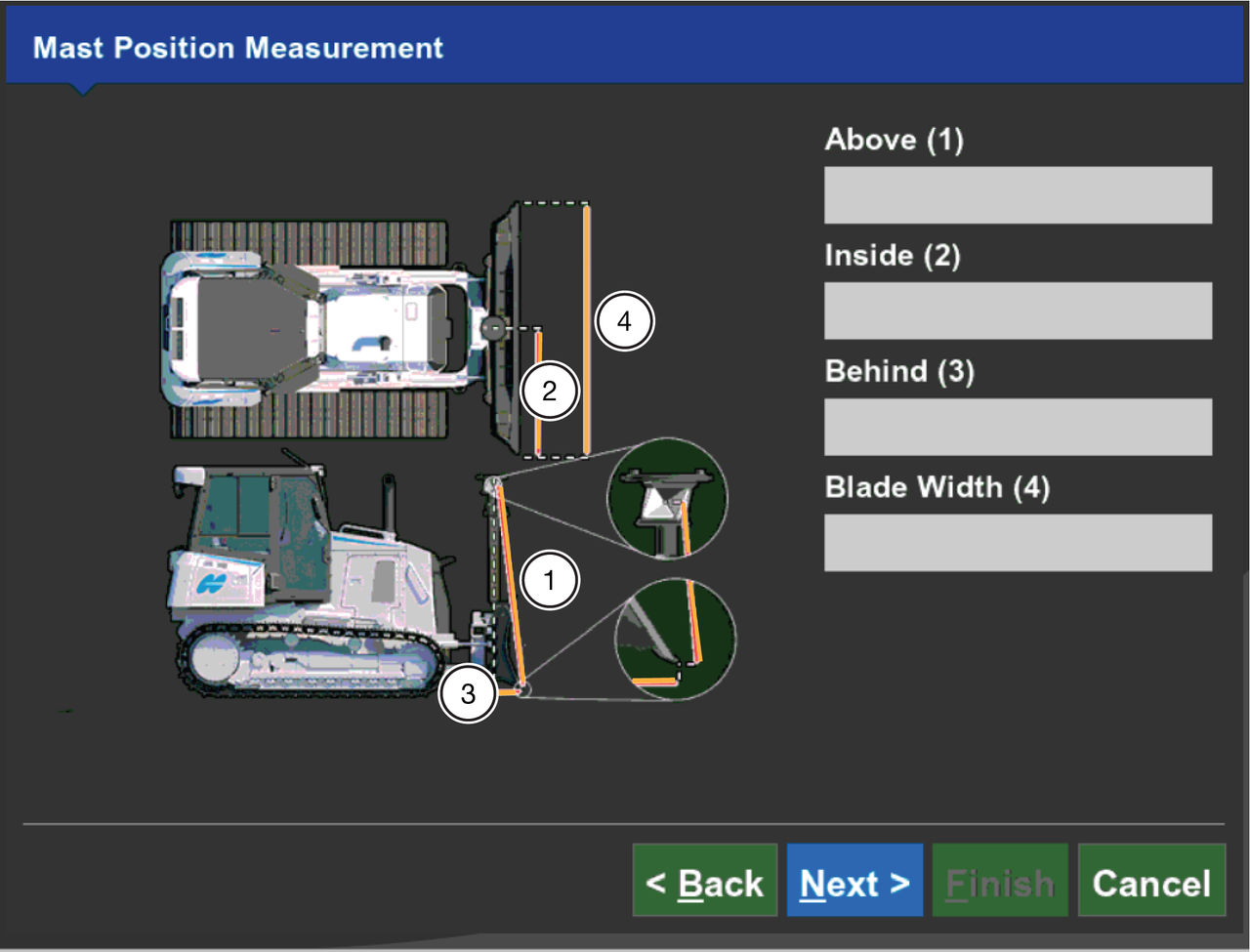

- Select Next.ADDITIONAL INFORMATION:Use the Mast Position Measurement screen as a reference for measurements.
- Enter the distance from the cutting edge to the reference point on the GR-i3 receiver for Above(1).
- Enter the distance from the middle of the mast to the right edge of the blade for Inside(2).
- Enter the distance from the cutting edge of the blade to the middle of the mast for Behind(3).
- Enter the measurement for the width of the blade for Blade Width(4).ADDITIONAL INFORMATION:
