Blade slope and push arm calibration

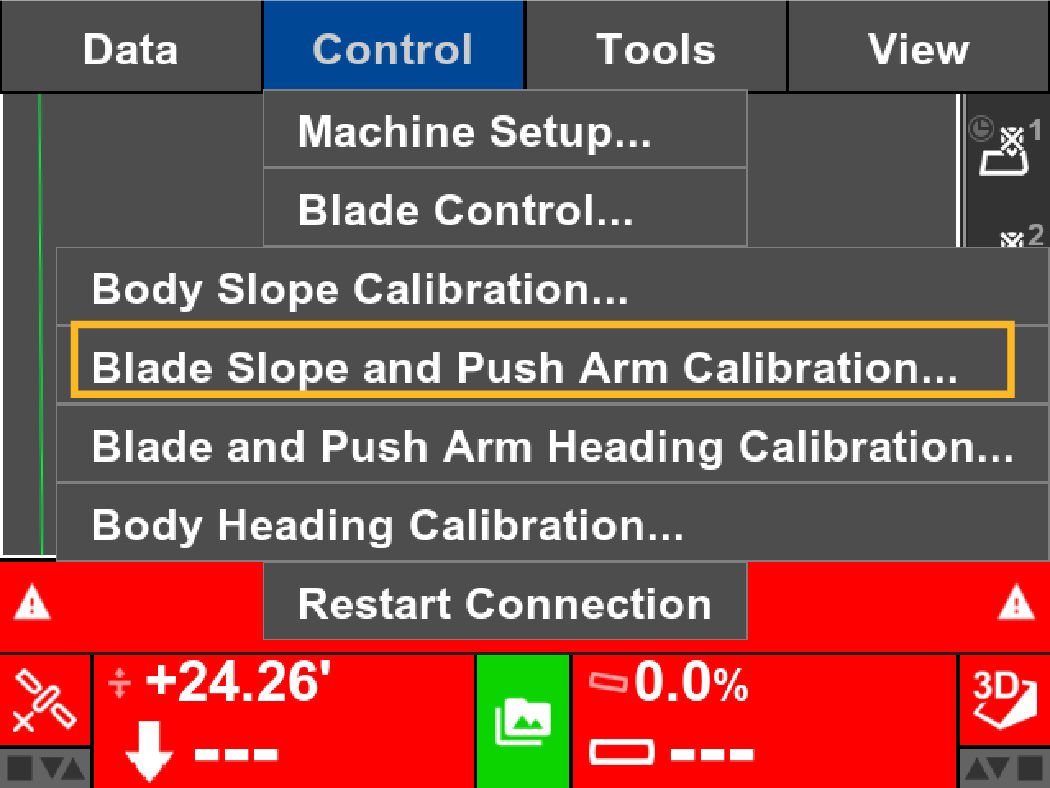

Select 3D-MC main screenControlSensor CalibrationBlade Slope and C-Frame Calibration.
ADDITIONAL INFORMATION:
The Calibrate Blade IMU Cross Slope screen shows.
Complete the steps on the Calibrate Blade IMU Cross Slope screen.
Measure the blade cross slope.
Enter the measured value from the smart level in the Cross-Slope field
ADDITIONAL INFORMATION:
Select Next.
ADDITIONAL INFORMATION:
The Blade Placement screen shows.
Complete the steps on the Blade Placement screen.
ADDITIONAL INFORMATION:
Select Next.
ADDITIONAL INFORMATION:
The Calibrate Blade Left IMU Mainfall screen shows.
Enter the measured value from the smart level in the Main Left Slope field.
ADDITIONAL INFORMATION:
Select Next.
ADDITIONAL INFORMATION:
The Calibrate Blade Right IMU Mainfall screen shows.
Complete the steps on the Calibrate Blade Right IMU Mainfall screen.
ADDITIONAL INFORMATION:
Enter the measured value from the smart level in the Main Right Slope text field.
Select Finish.
ADDITIONAL INFORMATION:
The 3D-MC main screen shows.
