Add an existing Sitelink site automatically by vicinity

For this procedure, the site manager must set up Site Discovery in Sitelink.
The site manager selects the regions that enable 3D-MC v15 to find the sites.
  1. Select DataSites.
  2. Select Add.
    ADDITIONAL INFORMATION:
    The Add Site screen opens.
  3. Select Existing Sitelink3D Site.
  4. Select Finish.
    ADDITIONAL INFORMATION:
    The Add Site: Existing Sitelink3D Site screen opens.
  5. Select by Sites in Vicinity from the Add drop-down field.
  6. Select the applicable site name.
  7. Select Next.
    ADDITIONAL INFORMATION:

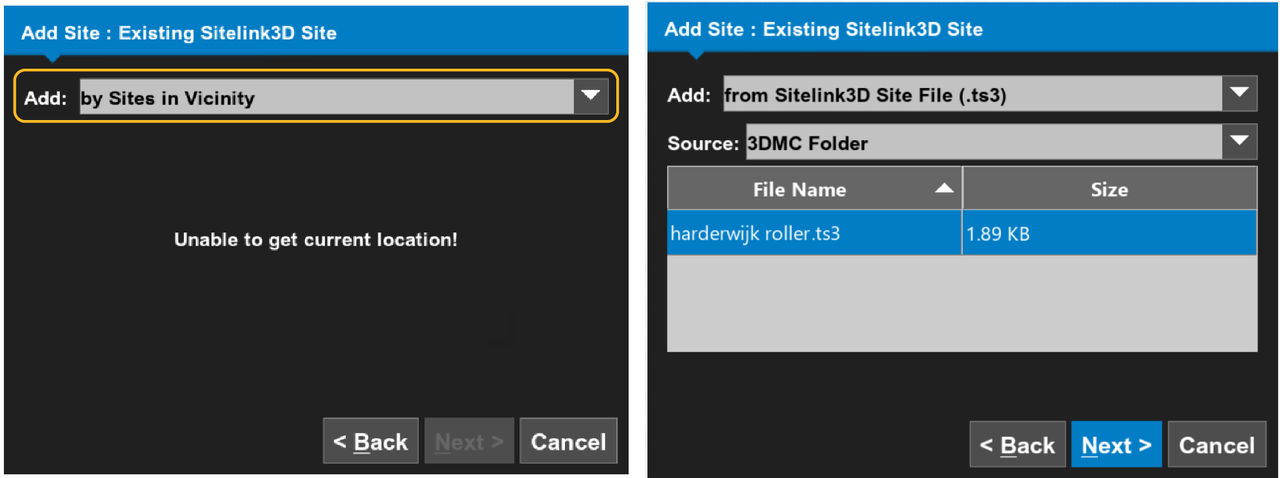

    Figure: Add existing Sitelink site by vicinity screen
    The Site Summary screen opens.
  8. Make sure that the site information is correct, then select OK.
    ADDITIONAL INFORMATION:

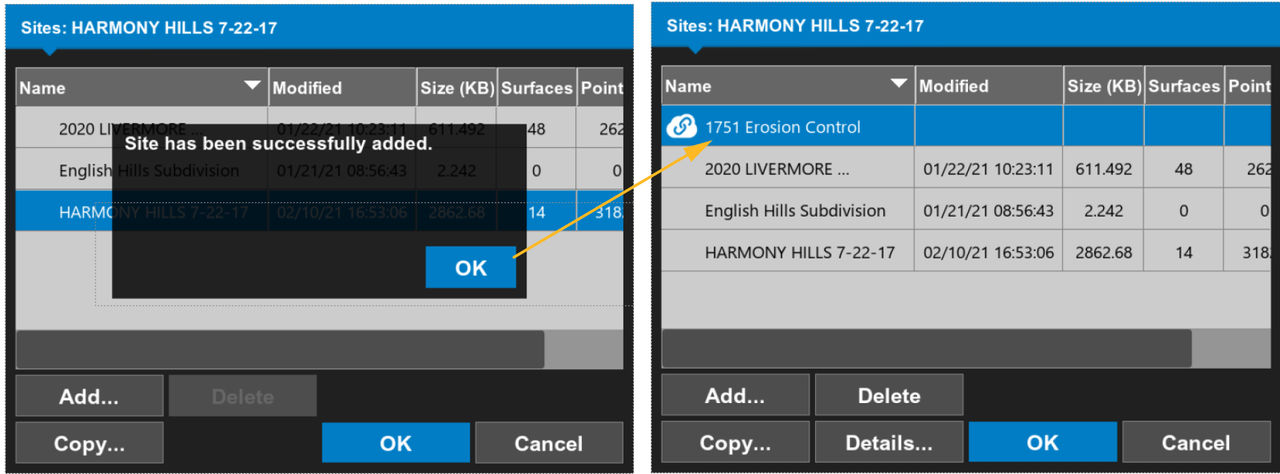

    Figure: Site summary
  9. Select a task at the site.
