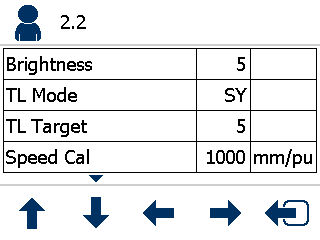

The Operator menu has the Brightness, TL Mode, TL Target, Speed Cal, Auto Speed Cal, Width, Language, and Software ID options. The available controls vary by option.
Submenu | Parameter | Default setting | Ref. |
|---|---|---|---|
Brightness | 1-10 | 5 | |
TL Mode | [SY], AL, AR, AS 10, AS 14, AS 18 | [SY] | |
TL Target | 1-20 | [4] | |
Speed Cal | mm/pulse | [1000] | |
Auto Speed Cal | |||
Width | meters | [4 m] | |
Language | National code | EN | |
Software ID |
